DN-26 HD D-Sub26/D-Sub15 Screw Terminal Board, DIN-rail Mounting
DIN-rail screw terminal board that breaks out HD D-Sub 26 and HD D-Sub 15 connectors pin-to-pin, giving simple screw terminal field wiring for the I/O connections.
- Female HD D-Sub 26 and HD D-Sub 15 connectors on one board
- Pin-to-pin screw terminal I/O connection
- Screw terminals for easy field wiring
- DIN-rail mounting
- Dimensions 103 mm x 86 mm
- Operating temperature -20 ~ +75 °C
550,59 kr per stk.
| 1–9 stk. | 550,59 kr | |
|---|---|---|
| 10–30 stk. | 529,81 kr | −4 % |
| 31+ stk. | 519,43 kr | −6 % |
Produktinformasjon "DN-26 HD D-Sub26/D-Sub15 Screw Terminal Board, DIN-rail Mounting"

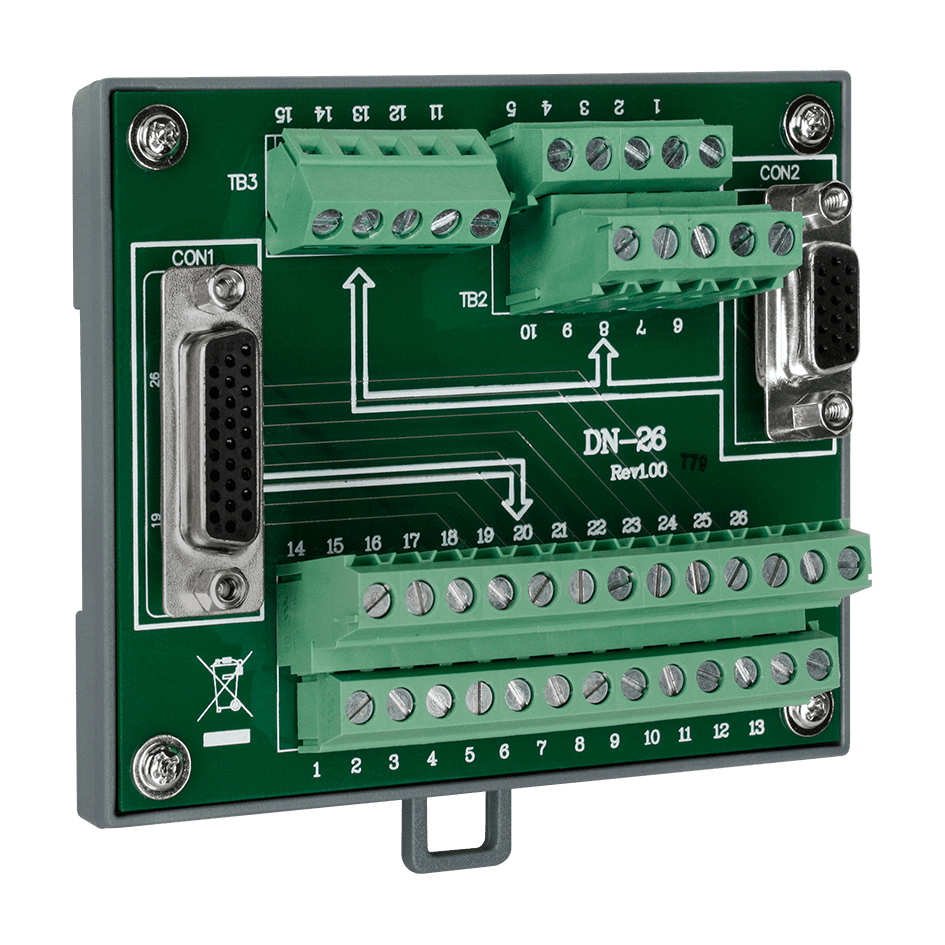

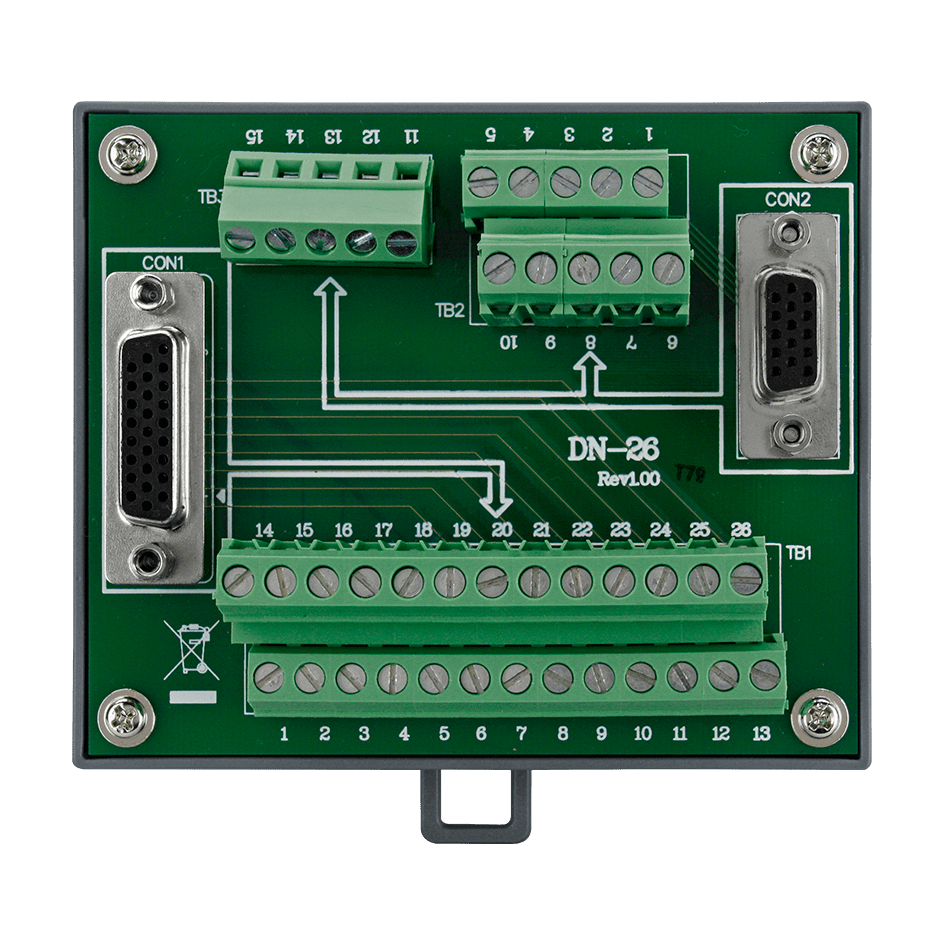

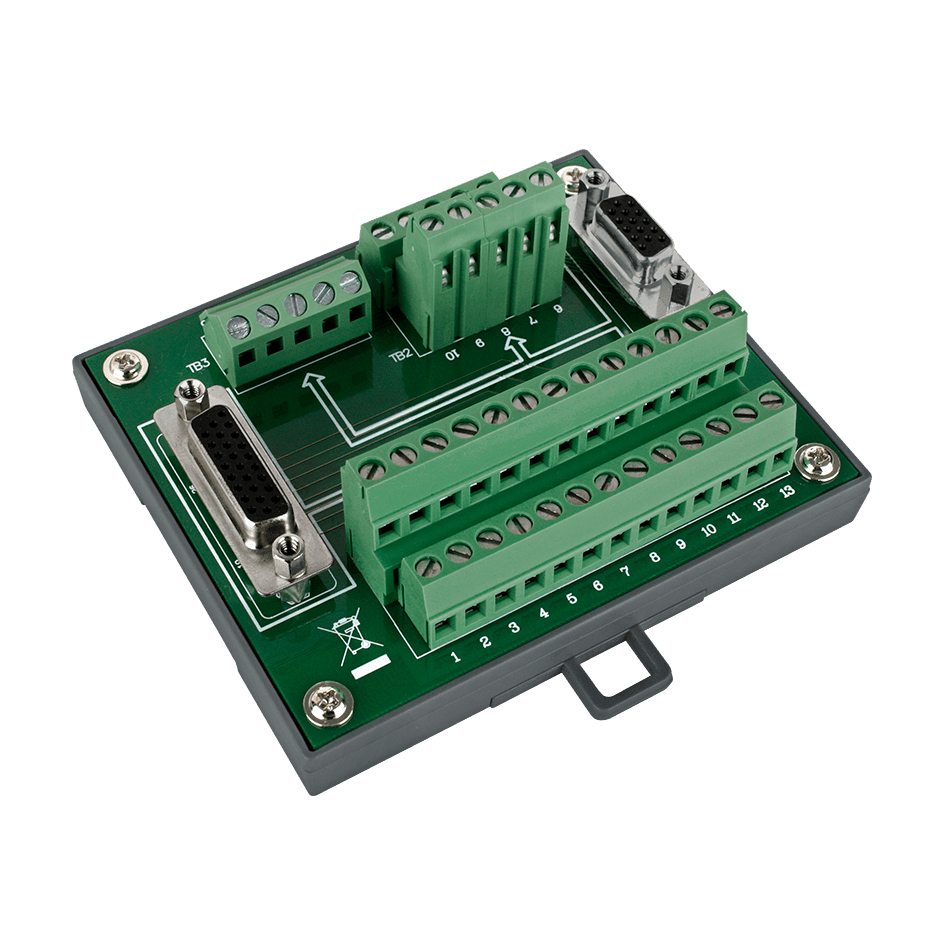

The DN-26 CR is a DIN-rail I/O terminal board that converts a female HD D-Sub 26 and a female HD D-Sub 15 connector into screw terminals. Each connector pin is carried straight through to its own terminal, so field wiring can be made without working directly on the connector pins.
The board is listed as a terminal board for the ECAT-M801 and belongs to the motion control daughter board group. It is intended for engineers who want a clean, serviceable wiring point between field devices and the controller side of an HD D-Sub installation.
Dimensions are 103 mm x 86 mm. Rated operating temperature is -20 ~ +75 °C, storage is -30 ~ +85 °C, and humidity tolerance is 10 ~ 90% RH, non-condensing. The product carries CE, UKCA, FCC, RoHS and WEEE certifications.
Applications
- Terminal board for ECAT-M801 I/O wiring
- Field wiring of HD D-Sub 26 and HD D-Sub 15 I/O connections in control cabinets
| Product type: | Terminal board |
|---|---|
| Interface: | HD D-Sub 15, HD D-Sub 26 |
| Operating temperature: | -20 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm X 86 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
