DN-20M MPG and FRnet Input Daughter Board for PISO-PS600/VS600/PMDK

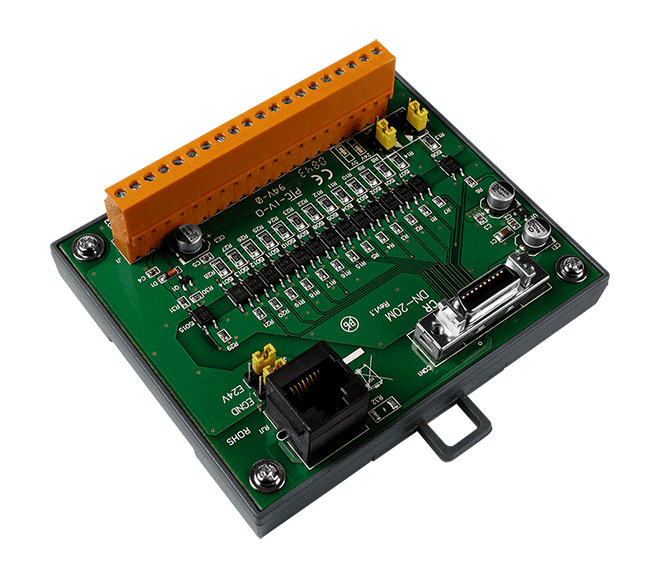

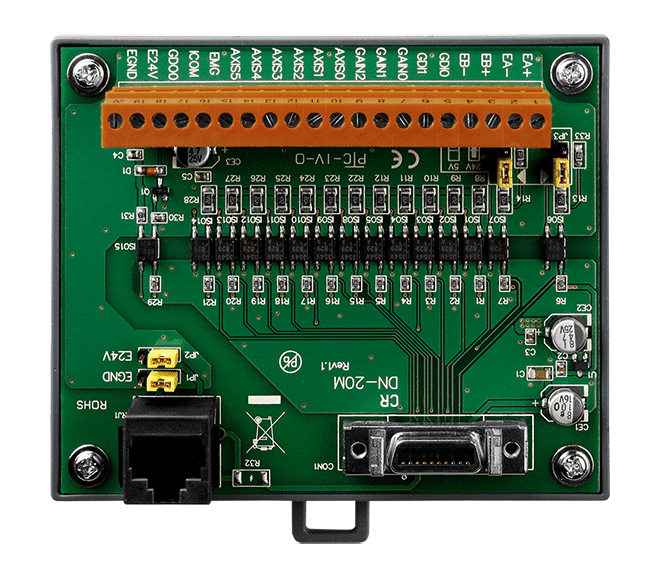

DN-20M CR daughter board that brings manual pulse generator and FRnet signals onto screw terminals for ICP DAS 6-axis motion controllers, with on-board isolation.
- Full-function manual pulse generator (MPG) connection via pin-to-pin screw terminals
- On-board isolating circuitry to protect the motion controller
- 20-pin SCSI-II connector for controller interface
- RJ-45 connector for FRnet connection
- Screw terminals for easy field wiring
- DIN-rail mounting, 103 mm x 86 mm board size
831,08 kr per stk.
| 1–9 stk. | 831,08 kr | |
|---|---|---|
| 10–30 stk. | 810,30 kr | −3 % |
| 31+ stk. | 789,53 kr | −5 % |
Produktinformasjon "DN-20M MPG and FRnet Input Daughter Board for PISO-PS600/VS600/PMDK"
DN-20M CR is a motion control daughter board for ICP DAS 6-axis controllers including the PISO-PS600, PISO-VS600, I-8196F, I-9196F and PMDK. It gives engineers a practical way to wire a full-function manual pulse generator (MPG) to the controller without custom cabling, while also providing a point for FRnet connection.
Signals are routed through screw terminals for straightforward field wiring, with a pin-to-pin screw terminal arrangement for the connected manual pulse generator. On-board isolating circuitry is included to help protect the controller, and a 20-pin SCSI-II connector and RJ-45 port complete the interface options. The board mounts on a DIN rail.
- Suited to panel layouts where the manual pulse generator and FRnet wiring need to be terminated neatly
- Operating range of -20 ~ +75 °C and 10 ~ 90% RH, non-condensing
Applications
- Manual pulse generator input for motion control systems
- FRnet connection on ICP DAS 6-axis motion controllers
- Motion control wiring for PISO-PS600, PISO-VS600, I-8196F, I-9196F and PMDK controllers
| Product type: | Daughter board |
|---|---|
| Interface: | 20-pin SCSI-II, FRnet (RJ-45), MPG |
| Isolation: | On-board |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.1 A |
| Consumption | 2.4 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 103 mm X 86 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
