DL-303 CO/CO2 Data Logger with Safety Alarm, RS-485/Ethernet/PoE
Remote CO, CO2, temperature, humidity and dew point data logger with a 2.8-inch touch screen, up to 450,000 stored records, and Modbus TCP and MQTT support.
- Simultaneous display of CO, CO2, temperature, humidity and dew point
- NDIR CO2 sensor with 0 ~ 9999 ppm range, plus CO electrochemical sensor with 0 ~ 1000 ppm range
- Stores up to 450,000 records with date and time stamps
- Supports DCON, Modbus RTU, Modbus TCP and MQTT protocols
- RS-485 and Ethernet (10/100 Base-TX) with PoE, plus a +12 ~ +48 VDC terminal block power input
- Touch-screen and web-based configuration, with free Windows, iOS and Android software
5 578,62 kr per stk.
| 1–9 stk. | 5 578,62 kr | |
|---|---|---|
| 10–30 stk. | 5 412,41 kr | −3 % |
| 31+ stk. | 5 298,14 kr | −5 % |
Produktinformasjon "DL-303 CO/CO2 Data Logger with Safety Alarm, RS-485/Ethernet/PoE"

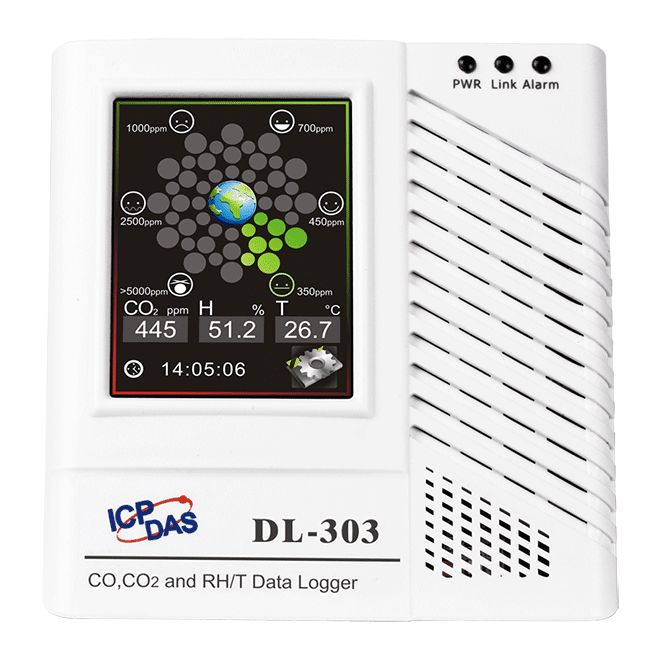

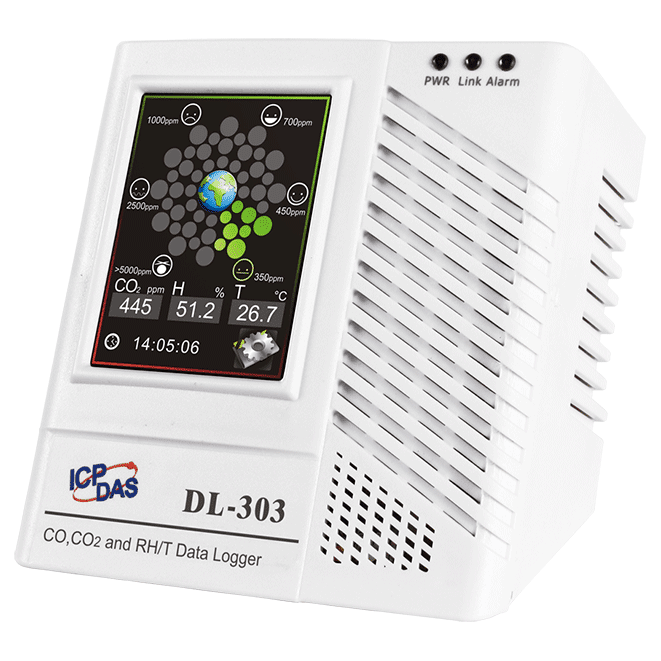

The DL-303 CR records carbon monoxide, carbon dioxide, temperature, humidity and dew point together, with date and time stamps on every record. Readings are shown simultaneously on a 2.8-inch touch screen, and a single relay output can drive an alarm device or an indoor air quality (IAQ) control device.

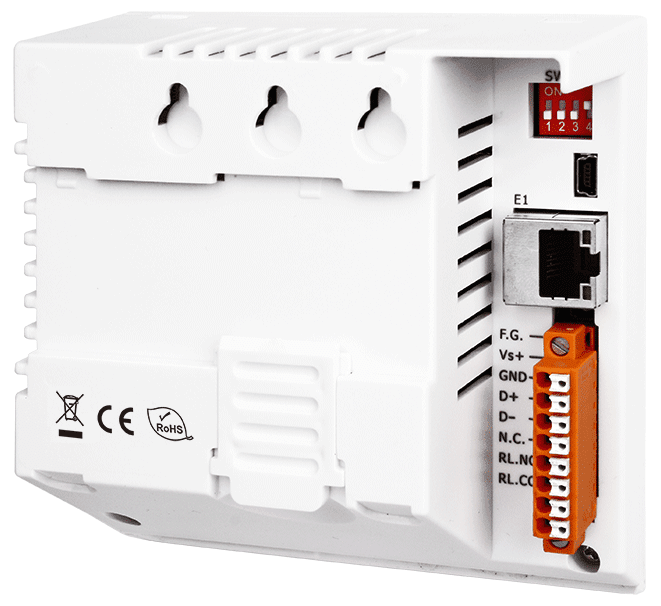

Data can be read over RS-485 using DCON or Modbus RTU, or over Ethernet using Modbus TCP or MQTT. The unit can be powered from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, which simplifies installation where a network cable is already present. Configuration is available through the touch screen or the built-in web server.
Logged data can be downloaded and exported to CSV for analysis. Free Windows utility software, iOS and Android apps are included, and multilingual on-screen messages can be shown to prompt operators. The device is listed with CE, UKCA, FCC, RoHS and WEEE certification.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations and pharmacies
- Building and energy management
- Warehouse management
- Museums, archives and galleries
| Product type: | Data logger |
|---|---|
| Interface: | Ethernet, PoE, RS-485 |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 1 |
| Ports: | 1 x RS-485, 1 x 10/100 Base-TX Ethernet |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Power input: | +12 ~ +48 VDC, PoE |
| Operating temperature: | 0 ~ +50 °C |
| Mounting: | Desktop, DIN-rail, Wall |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Real Time Clock | Yes |
| Display | |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Yes |
| LCD Information Displayed | 2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3 |
| System | |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
| Range | 0 ~ 100% RH |
| Resolution | 0.1% RH |
| Accuracy | ±5% RH |
| Dew Point | |
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| CO Measurement | |
| Sensor Type | Electrochemical Sensor |
| Range | 0 ~ 1000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | 30 seconds |
| Warm-up Time | 300 seconds |
| CO2 Measurement | |
| Sensor Type | Non-dispersive infrared (NDIR) Sensor |
| Range | 0 ~ 9999 ppm |
| Resolution | 1 ppm |
| Accuracy | ±30 ppm ±3% of measured value |
| Response Time | 20 seconds |
| Warm-up Time | 60 seconds |
| Relay Output | |
| Type | Form A × 1, SPST |
| Contact Rating | 30 VDC @ 16 A or 250 VAC @ 16 A |
| Ethernet | |
| Ports | 1x 10/100 Base-TX (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| PoE | Yes |
| Protocol | Modbus/TCP, MQTT |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | DCON, Modbus/RTU |
| Power | |
| Consumption | PoE: 2.83 W (Max.) Non-PoE: 2.24 W (Max.) |
| Powered from PoE | IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block | +12 ~+48 VDC |
| Mechanical | |
| Dimensions (mm) | 106 x 114 x 56 (W x L x H) |

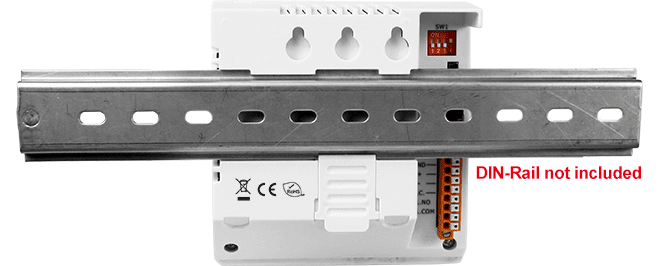

| Installation | Desktop, DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | 0 ~ +50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
