DB-200 Encoder Input Board for SERVO-300 Motion Control Daughter Board
Connection board for the SERVO-300 driver that brings encoder signals A+, A-, B+, B-, C+, C- and the voltage command out to DIN-rail screw terminals and D-Sub connectors.
- Connection board designed for the SERVO-300 driver
- Encoder inputs A+, A-, B+, B-, C+, C- and voltage command brought out
- 25-pin D-Sub connector plus two 9-pin D-Sub connectors
- Pin-to-pin screw terminals for I/O connections
- Screw terminals for straightforward field wiring
- DIN-rail mounting I/O connector block
747,97 kr per stk.
| 1–9 stk. | 747,97 kr | |
|---|---|---|
| 10–30 stk. | 716,81 kr | −4 % |
| 31+ stk. | 706,42 kr | −6 % |
Produktinformasjon "DB-200 Encoder Input Board for SERVO-300 Motion Control Daughter Board"

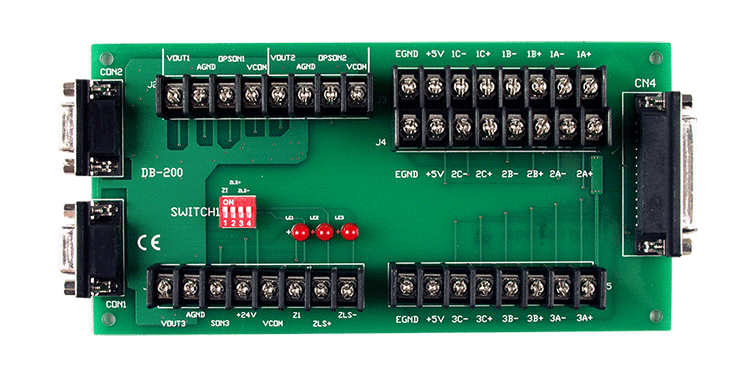

The DB-200 is a connection board for the SERVO-300 servo driver. It groups the encoder signals A+, A-, B+, B-, C+ and C-, along with the voltage command, onto a single I/O interface so that field wiring can be made without working directly on the driver connector.
The board offers a 25-pin D-Sub connector and two 9-pin D-Sub connectors, with pin-to-pin screw terminals for the I/O connections. It mounts on a DIN rail and is intended for systems where the wiring needs to be terminated and organised neatly in a control cabinet.
Physically the board measures 205 mm x 96 mm x 23 mm and is rated for an operating temperature of -20 ~ +75 °C and a humidity range of 10 ~ 90% RH, non-condensing. It carries CE, UKCA and WEEE markings.
Applications
- Encoder feedback and voltage command wiring for SERVO-300 servo drive systems
- Motion control cabinet wiring with DIN-rail mounted terminal blocks
| Product type: | Daughter board |
|---|---|
| Interface: | D-sub, Screw terminal |
| Operating temperature: | -20 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Mechanical | |
|---|---|
| Dimensions (mm) | 205 mm X 96 mm X 23 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
