DB-1825/DIN DB37 Screw Terminal Board, DIN-rail, for PCI-1202U/1602U/1802U
DIN-rail mounted DB37 to screw terminal board for PCI-1202U/1602U/1802U DAQ cards, giving 32 single-ended or 16 differential channels, supplied with a CA-3710 cable.
- Screw terminal breakout for the 37-pin cable I/O of PCI-1202U, PCI-1602U and PCI-1802U cards
- Supports 32 single-ended or 16 differential channels
- DIN-rail mounting
- Blank pads for break detection, low-pass filter, current shunt and voltage divider (manual soldering)
- CA-3710 DB37 male to male cable, 45º, 1 m, included
- Operating temperature 0 ~ +60 °C; storage -30 ~ +80 °C
779,14 kr per stk.
| 1–9 stk. | 779,14 kr | |
|---|---|---|
| 10–30 stk. | 758,36 kr | −3 % |
| 31+ stk. | 737,58 kr | −5 % |
Produktinformasjon "DB-1825/DIN DB37 Screw Terminal Board, DIN-rail, for PCI-1202U/1602U/1802U"

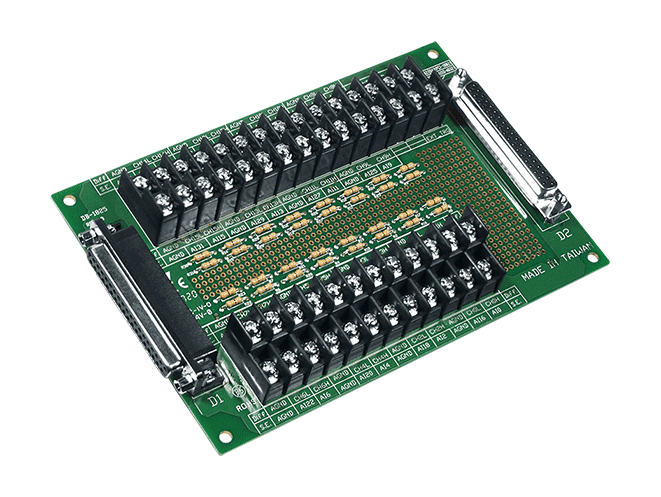

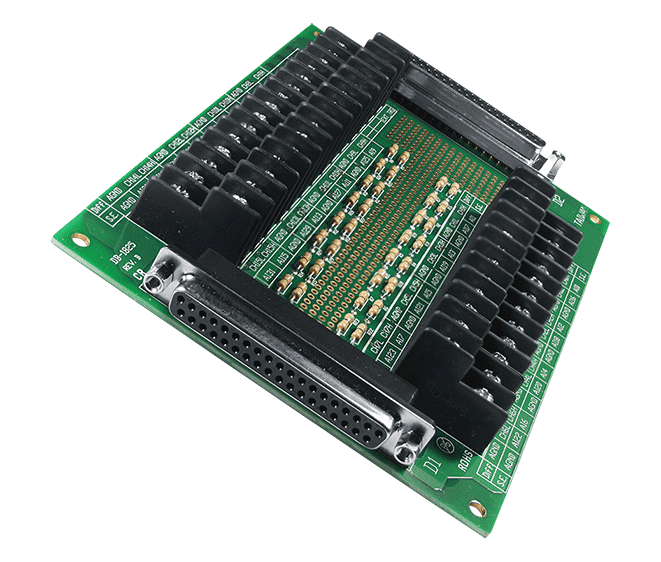

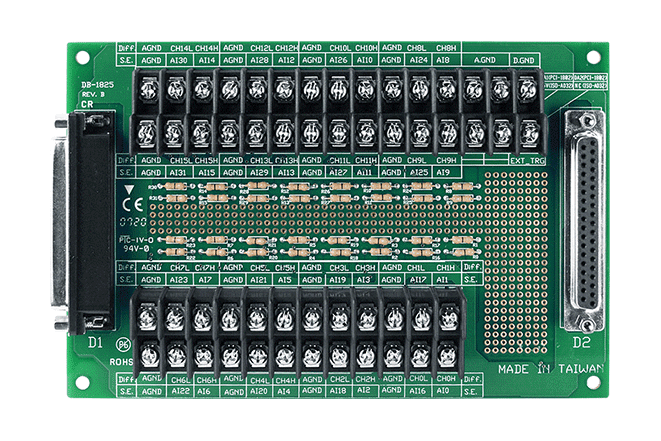

The DB-1825/DIN CR breaks out the 37-pin cable I/O of the PCI-1202U, PCI-1602U and PCI-1802U data acquisition cards onto screw terminals, so field wiring can be made without working directly on the card connector. It supports 32 single-ended or 16 differential channels, and it is supplied with DIN-rail mounting.
The board also provides blank pads for manual soldering of break detection, a low-pass filter, a current shunt and a voltage divider, letting you tailor the signal conditioning to your input requirements. A CA-3710 cable (DB37 male to male, 45º, 1 m) is included to connect the board to the DAQ card.
The board is rated for an operating temperature of 0 ~ +60 °C and a storage temperature of -30 ~ +80 °C, at 10% ~ 90% humidity with no condensing. It carries CE, UKCA, FCC, RoHS and WEEE certification.
Applications
- Analog signal wiring for PCI-1202U, PCI-1602U and PCI-1802U data acquisition cards
| Product type: | Screw terminal board |
|---|---|
| Interface: | DB37 |
| Ports: | 37 |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
