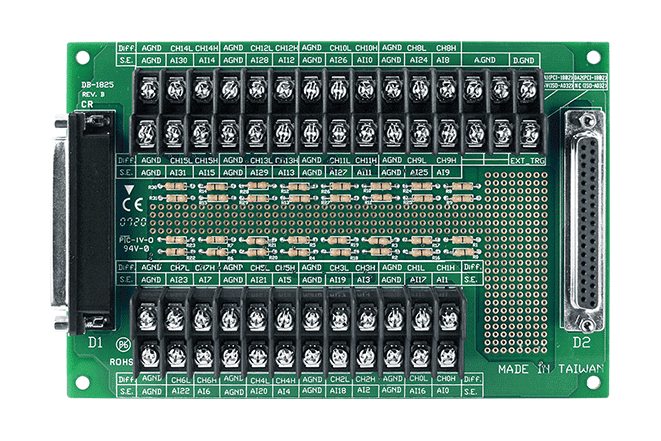

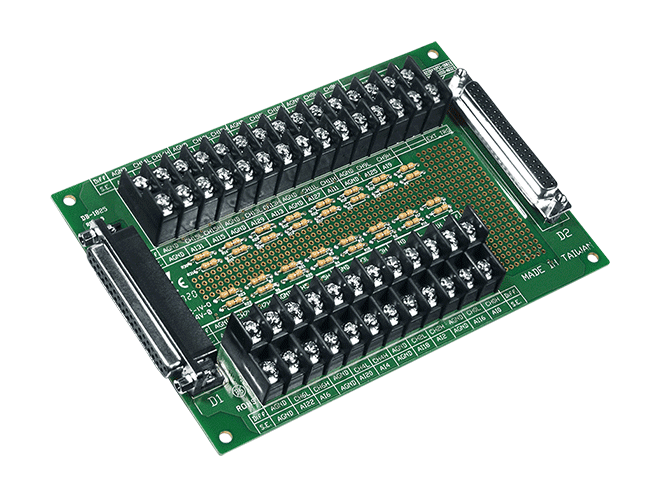

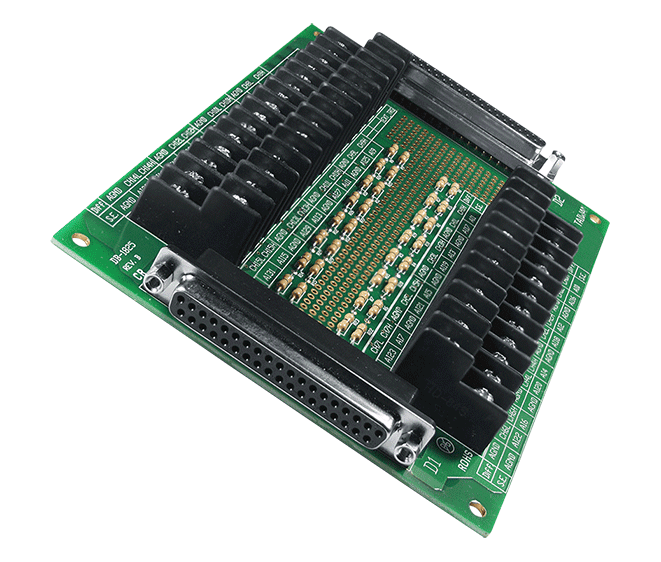

DB-1825 DB37 Screw Terminal Board for PCI-1202U/1602U/1802U DAQ Cards
Female DB37 to screw terminal board that breaks out the 37-pin I/O of PCI-1202U, 1602U and 1802U data acquisition cards, supplied with a 1 m DB37 cable.
- Female DB37 connector links the board to the 37-pin I/O of the matching DAQ card
- Screw terminals provide 32 single-ended or 16 differential channels
- Blank pads for break detection, low-pass filter, current shunt and voltage divider (manual soldering)
- Includes CA-3710 DB37 male-to-male cable, 45º, 1 m
- Compatible with PCI-1202U, PCI-1602U and PCI-1802U series cards as stated by the manufacturer
- Dimensions 170 mm x 114 mm
706,42 kr per stk.
| 1–9 stk. | 706,42 kr | |
|---|---|---|
| 10–30 stk. | 685,64 kr | −3 % |
| 31+ stk. | 675,25 kr | −4 % |
Produktinformasjon "DB-1825 DB37 Screw Terminal Board for PCI-1202U/1602U/1802U DAQ Cards"
DB-1825 CR is a female DB37 to screw terminal board that gives engineers a practical way to wire field signals to PCI-1202U, PCI-1602U and PCI-1802U data acquisition cards. Connection is made through a single 37-pin cable, with 32 single-ended channels and 16 differential channels available on the terminals.
The ordering code includes a CA-3710 cable (DB37 male to male, 45º, 1 m), so the board can be connected to the DAQ card straight out of the box. The board also provides blank pads for break detection, a low-pass filter, a current shunt and a voltage divider, which are fitted by manual soldering when needed.
The board measures 170 mm x 114 mm and is rated for an operating temperature of 0~ +60 °C, a storage temperature of -30 ~ +80 °C and a humidity range of 10% ~ 90%, non-condensing.
Applications
- Wiring field signals to PCI-1202U, PCI-1602U and PCI-1802U data acquisition cards
- Adding user-fitted signal conditioning such as filtering, current shunting or voltage division on the board
| Product type: | Screw terminal board |
|---|---|
| Interface: | DB37 female |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
