DB-16R 16-ch Form C Relay Output Daughter Board for 20-pin DAQ Connector

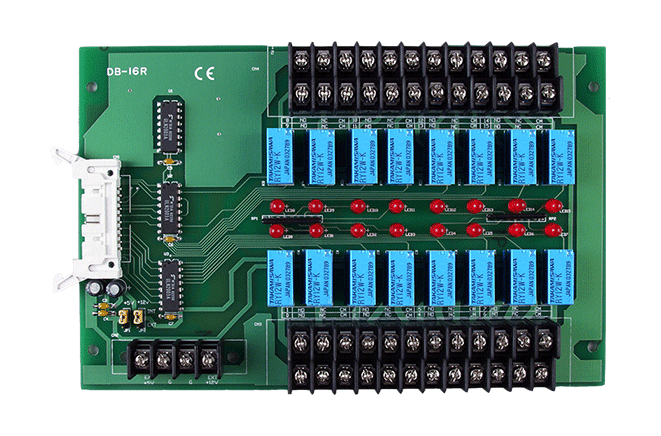

16-channel Form C relay output daughter board driven from a 20-pin flat cable, with screw terminals and an LED per relay for status indication.
- 16 Form C relay outputs switched from a single 20-pin connector
- Compatible with A-82X, DIO-64 or any compatible digital output port
- 5 V signal on a channel energises the corresponding relay
- Indicator LED per relay shows when it is activated
- Screw terminals for field wiring and a separate 12 VDC power input
- Contact rating 0.5 A/120 VAC and 1 A/24 VDC
1 246,62 kr per stk.
| 1–9 stk. | 1 246,62 kr | |
|---|---|---|
| 10–30 stk. | 1 215,45 kr | −3 % |
| 31+ stk. | 1 184,29 kr | −5 % |
Produktinformasjon "DB-16R 16-ch Form C Relay Output Daughter Board for 20-pin DAQ Connector"
The DB-16R is a 16-channel relay output daughter board that lets a digital output port switch 16 Form C relays. Each relay is energised by applying a 5 V signal to its channel on the 20-pin flat cable connector, so the board can be controlled directly from an A-82X, a DIO-64 or any other compatible digital output port.
Each relay has an indicator LED that lights while the relay is active, which makes channel status easy to check during commissioning and fault finding. Field wiring is made through screw terminals, and a separate screw-terminal power input is provided so the board does not draw its supply from the host PC.
- Relay contact rating: 0.5 A at 120 VAC or 1 A at 24 VDC
- Operate time 6 ms, release time 3 ms
- Includes CA-2010 flat cable, 20-pin, 1 m
Applications
- On/off control
- Energy management
- Test automation
- Process control
| Product type: | Relay output daughter board |
|---|---|
| Interface: | 20-pin flat cable |
| Relay outputs: | 16 x Form C |
| Power input: | 12 VDC |
| Operating temperature: | 0 ~ 60 °C |
Spesifikasjoner
| Relay Output | |
|---|---|
| Channels | 16 x FORM C |
| Type | Signal Relay |
| Contact Rating | 0.5A/120VAC ,1A/24VDC |
| Operate Time | 6ms |
| Release Time | 3ms |
| Electrical Endurance | 2 x 10^5 |
| Mechanical Endurance | 2 x 10^7 |
| Power | |
| Input Range | 12 VDC |
| Consumption | +12 V @528 mA max. +5 V @150 mA max. |
| Mechanical | |
| Dimensions (mm) | 205 mm x 114 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
