DB-12SSR/D 12-ch AC Solid-State Relay Daughter Board, OPTO-22 Compatible
12-channel optically isolated AC solid-state relay daughter board with an OPTO-22 compatible connector, for direct connection to compatible boards. Supplied with a CA-3710 DB37 cable.
- 12 optically isolated AC SSR channels, Form A
- OPTO-22 compatible connector plus 37-pin D-sub and 20-pin connectors
- Direct connection to OPTO-22 compatible boards
- Rated 4 A per channel; operate time 1 ms max (half cycle of sine wave)
- LED indication of relay status on each channel
- Screw terminals for field wiring
3 448,98 kr per stk.
| 1–9 stk. | 3 448,98 kr | |
|---|---|---|
| 10–30 stk. | 3 345,10 kr | −3 % |
| 31+ stk. | 3 282,77 kr | −5 % |
Produktinformasjon "DB-12SSR/D 12-ch AC Solid-State Relay Daughter Board, OPTO-22 Compatible"

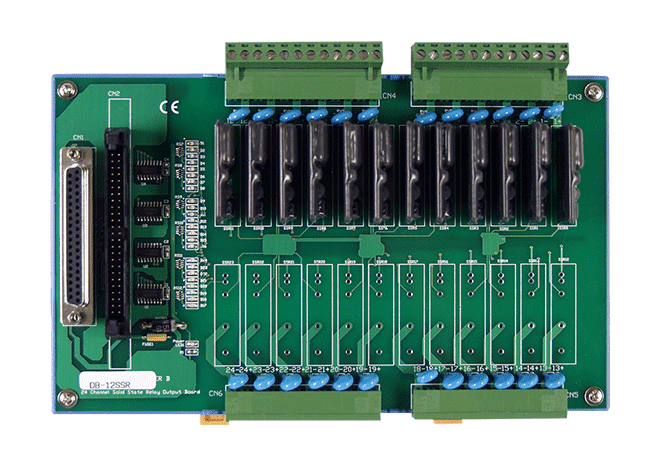

The DB-12SSR/D is a 12-channel AC solid-state relay daughter board for switching mains-level loads from a DAQ system. Each channel is a Form A SSR, and the board plugs directly into an OPTO-22 compatible board, so it can be added to an existing acquisition setup without custom wiring.
Field wiring terminates on screw terminals, and an LED on each channel shows the relay state, which helps with commissioning and fault finding. Per the ordering information, this variant ships with a CA-3710 DB37 male-to-male cable (45º, 1 m) instead of the CA-5015 flat cable supplied with the base DB-12SSR.
Typical uses include on/off switching, energy management, test automation and process control. The board operates from 0 to 60 °C and is stored between -20 and 70 °C, with humidity rated at 5 % to 90 % non-condensing.
Applications
- On/off control
- Energy management
- Test automation
- Process control
| Product type: | Daughter board |
|---|---|
| Interface: | 20-pin, 37-pin D-sub, OPTO-22 compatible |
| Relay outputs: | 12 (SSR, Form A) |
| Isolation: | Optical |
| Operating temperature: | 0 ~ 60 °C |
Spesifikasjoner
| Relay Output | |
|---|---|
| Channels | 12 X FORM A |
| Type | SSR |
| Contact Rating | 4 A @ 240VAC |
| Operate Time | 1/2 cycle of voltage sina wave 1ms (max) |
| Electrical Endurance | Long Life, No Arcing, No Bounce, No Switching Noise |
| Power | |
| Consumption | 400 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 223.5 mm x 135.5 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
