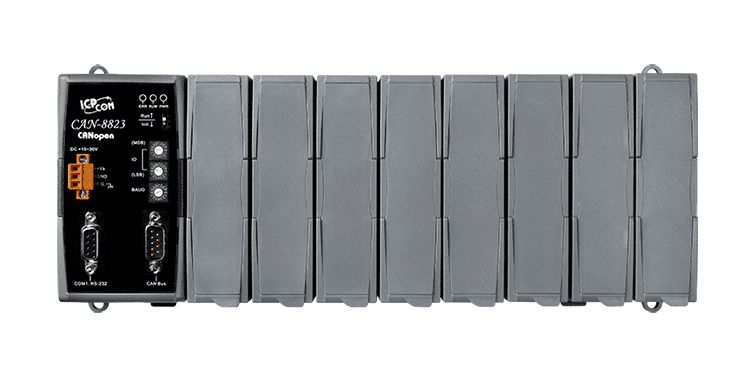

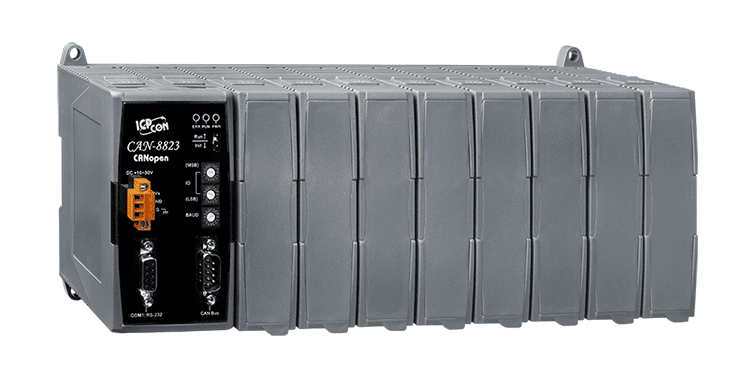

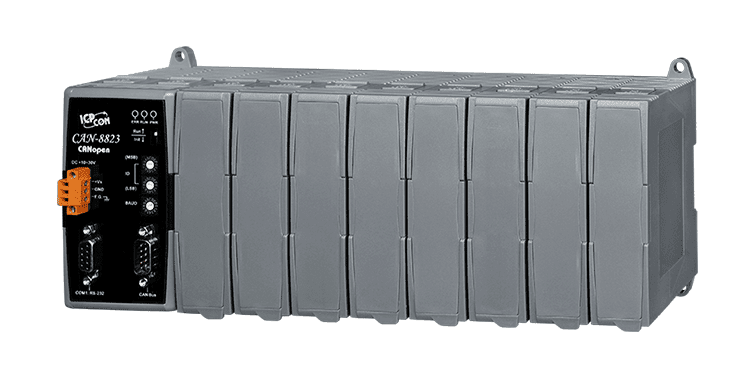

CAN-8823-G CANopen Remote I/O Unit with 8 I/O Expansion Slots
CANopen slave remote I/O unit with 8 expansion slots for ICP DAS DI, DO, AI and AO modules from the I-87K and I-8000 series.
- CANopen slave (NMT) with Node ID setting from 1 to 255 by rotary switch
- Eight I/O expansion slots supporting ICP DAS DI, DO, AI and AO modules from the I-87K and I-8000 series
- Dynamic PDO with event-triggered, remotely requested, cyclic and acyclic SYNC modes, plus PDO mapping
- Node Guarding and Heartbeat Producer error control with EMCY message support
- EDS file generated dynamically with the CAN-8823 Utility, based on DSP-306
- CAN baud rates from 10 kbit/s to 1 Mbit/s with built-in 120 Ω terminating resistor
5 256,58 kr per stk.
| 1–9 stk. | 5 256,58 kr | |
|---|---|---|
| 10–30 stk. | 5 100,75 kr | −3 % |
| 31+ stk. | 4 996,87 kr | −5 % |
Produktinformasjon "CAN-8823-G CANopen Remote I/O Unit with 8 I/O Expansion Slots"

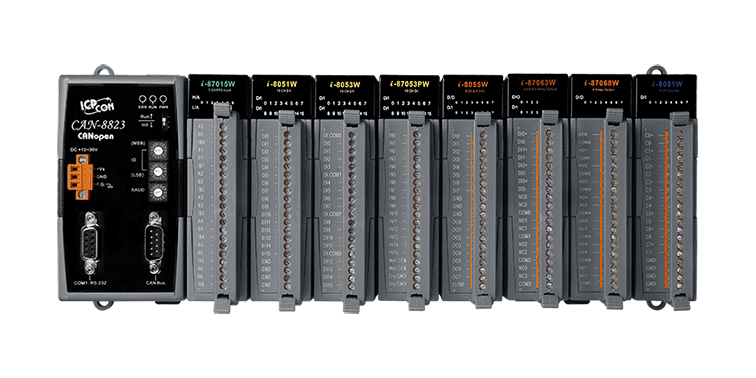

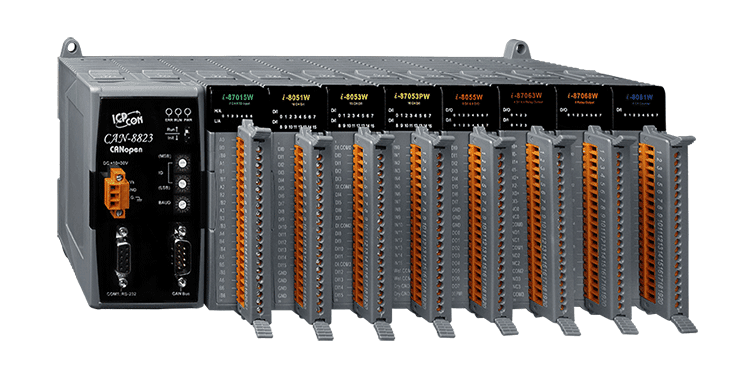

The CAN-8823-G CR is a CANopen slave unit that lets you build a distributed I/O node on a CAN bus. Eight expansion slots accept a mix of digital and analogue I/O modules, so you can tailor the channel count and signal types to the application rather than buying a fixed-configuration device.
It follows CiA 301 v4.02 and CiA 401 v2.1 and provides dynamic PDO configuration, EMCY messaging, error output values and both cyclic and acyclic SYNC operation. The Node ID is set with a rotary switch, and the CAN-8823 Utility can generate an EDS file dynamically for configuring different CANopen masters.
Choose this model when you need a configurable CANopen slave with expandable I/O in industrial machinery, laboratory equipment, maritime, medical or specialty vehicle systems. The unit is UKCA, FCC, RoHS and WEEE listed.
Applications
- Industrial machinery
- Laboratory equipment and research
- Restaurant appliances
- Maritime
- Medical
- Specialty vehicles
| Product type: | Remote I/O unit |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 8 slots |
| COM Ports | |
| Ports | 1 x RS-232 (console) |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 255 |
| No. of PDOs | 32 RxPDO , 32 TxPDO |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Mechanical | |
| Dimensions (mm) | 188 x 312 x 91 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
