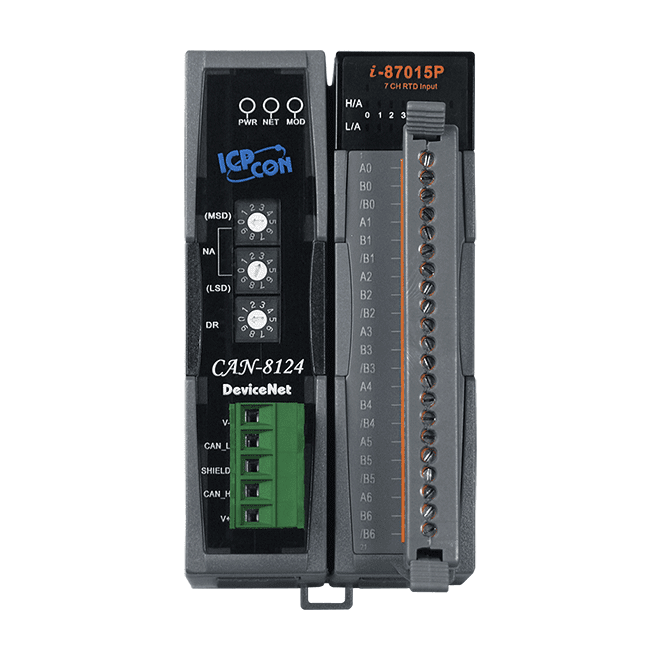

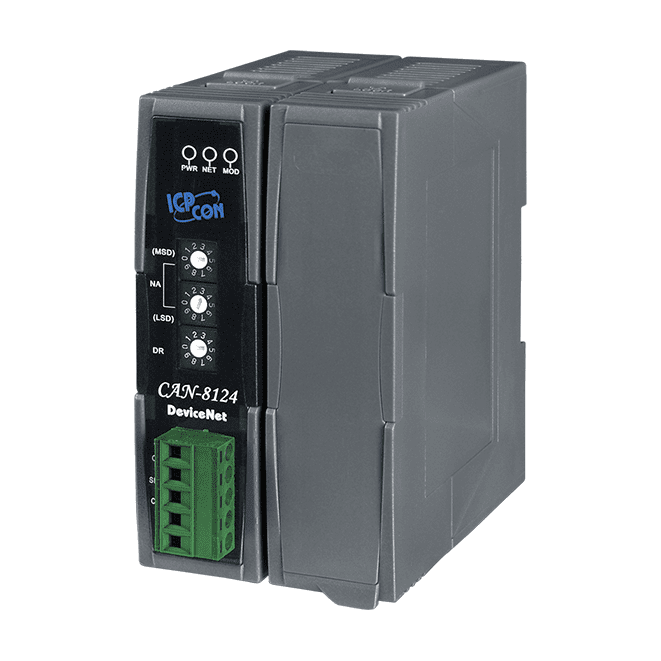

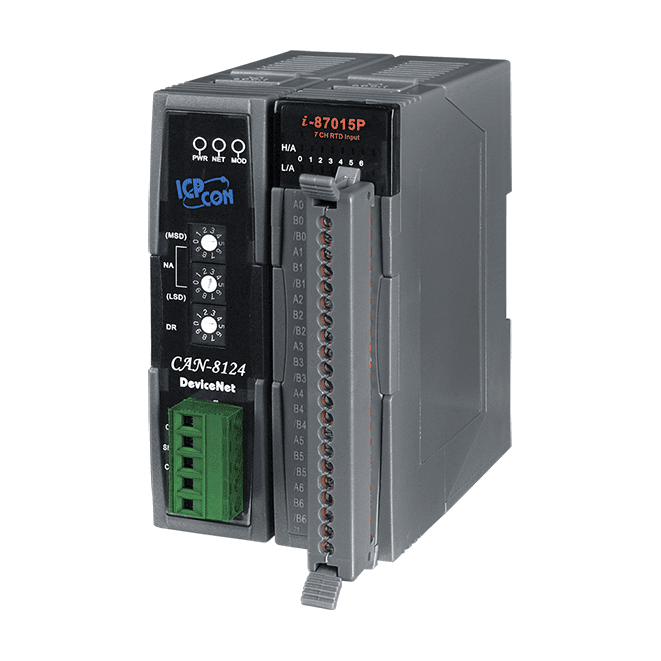

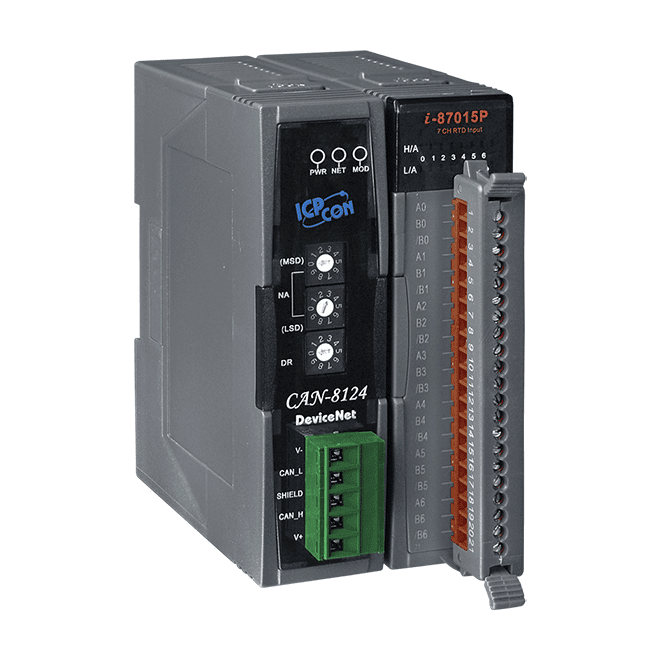

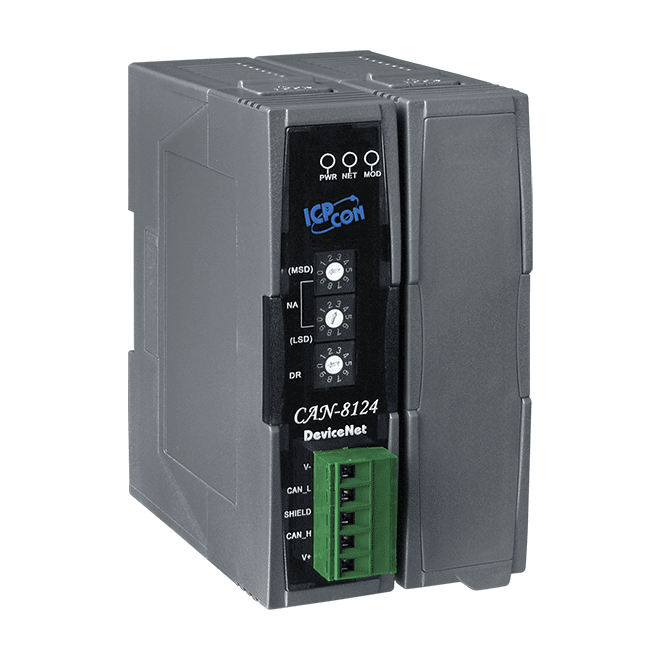

CAN-8124-G DeviceNet Remote I/O Unit with 1 I/O Slot
DeviceNet slave remote I/O unit with one expansion slot for I-87K or I-8000 series DI, DO, AI and AO modules, supporting up to 64 nodes on DIN-rail.
- DeviceNet slave conforming to DeviceNet Specification Volume I and II, Release 2.0
- One expansion slot for I-87K or I-8000 series DI, DO, AI and AO modules
- Poll, Bit-Strobe and Change of State/Cyclic I/O operating modes
- Up to 128 bytes of fragmented I/O in each direction
- Rotary switches for MAC ID and baud rate (125 k, 250 k, 500 k)
- 3000 VDC DC-to-DC and 2500 Vrms photo-coupler isolation
2 690,62 kr per stk.
| 1–9 stk. | 2 690,62 kr | |
|---|---|---|
| 10–30 stk. | 2 607,51 kr | −3 % |
| 31+ stk. | 2 555,57 kr | −5 % |
Produktinformasjon "CAN-8124-G DeviceNet Remote I/O Unit with 1 I/O Slot"
CAN-8124-G is a DeviceNet slave remote I/O unit that links local field I/O to a DeviceNet master. Its single expansion slot lets you add digital or analogue channels to suit each machine, so the I/O mix can be matched to the application.
The slot accepts DI, DO, AI and AO modules from the I-87K or I-8000 series. A CAN Slave Utility is available to generate an EDS file dynamically, based on DeviceNet, which is intended to work with different DeviceNet master interfaces.
Node address and baud rate are set with rotary switches, supporting 125 k, 250 k and 500 k. The unit supports up to 64 nodes, has a jumper-selectable 120 Ω terminal resistor, runs from +10 VDC to +30 VDC and operates between -25 and +75 ℃.
Applications
- Automotive
- Food & Beverage
- Packaging
- High-speed Assembly
- Pulp & Paper
- Semiconductor Fabrication
- Control System
| Product type: | Remote I/O unit |
|---|---|
| Interface: | DeviceNet |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Watchdog IC |
| LED Indicators | |
| Status | 1 x Power 2 x DeviceNet status |
| I/O Expansion | |
| Slots | 1 slots |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O 1 connection for COS/Cyclic I/O |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.7 W |
| Mechanical | |
| Dimensions (mm) | 64 x 119 x 91 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
