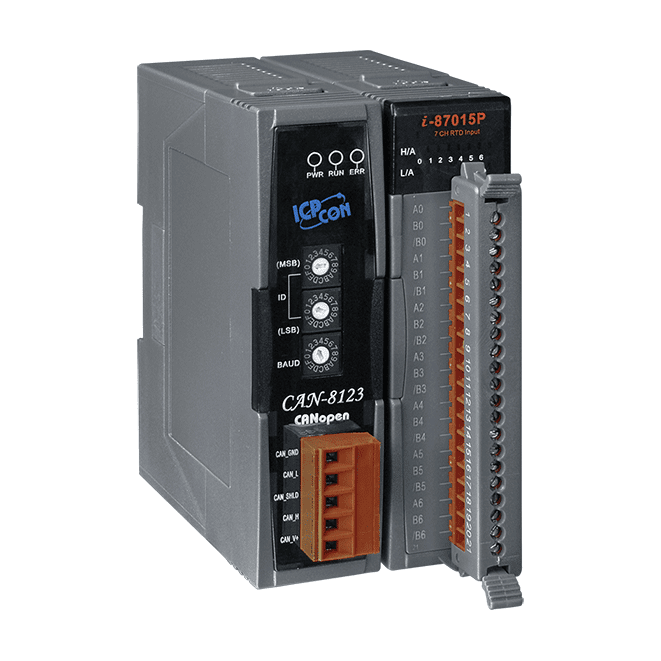

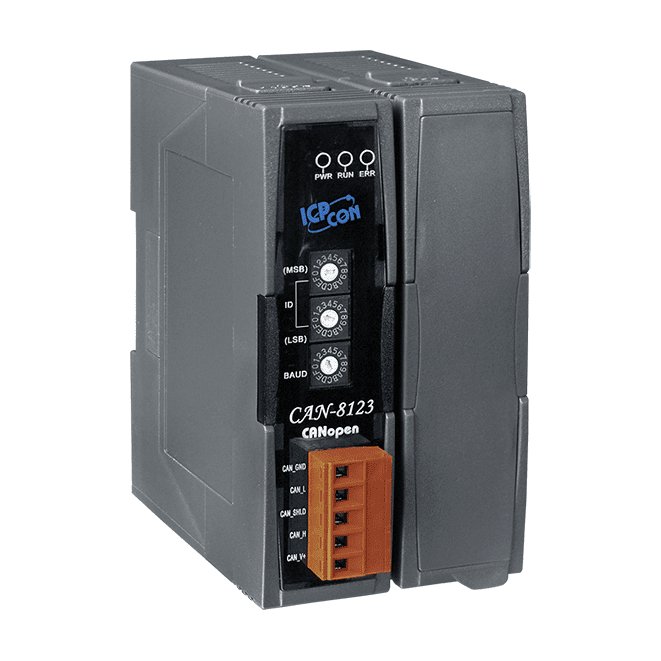

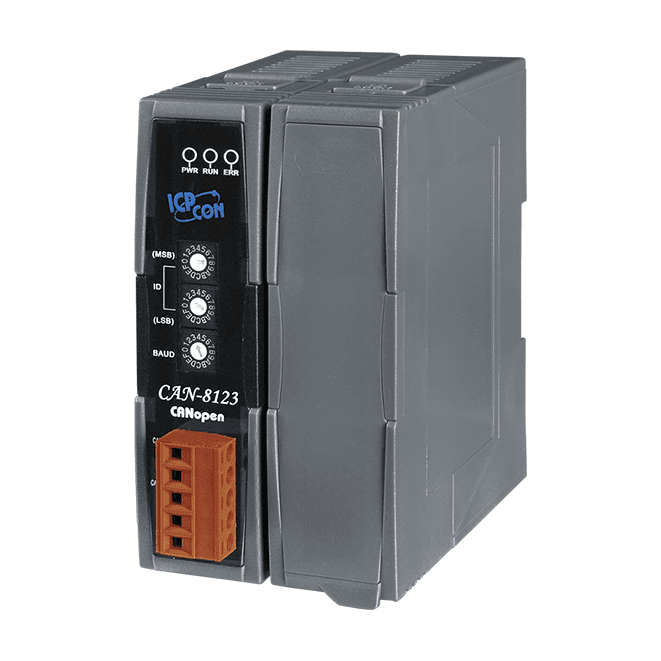

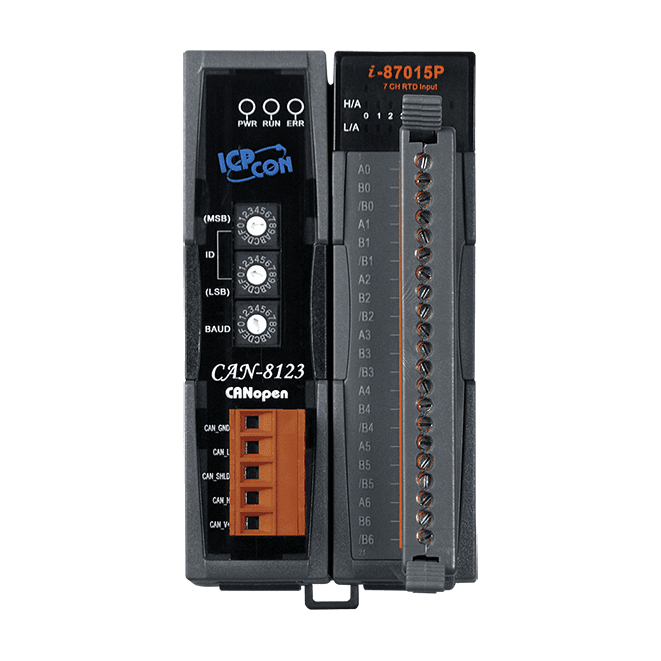

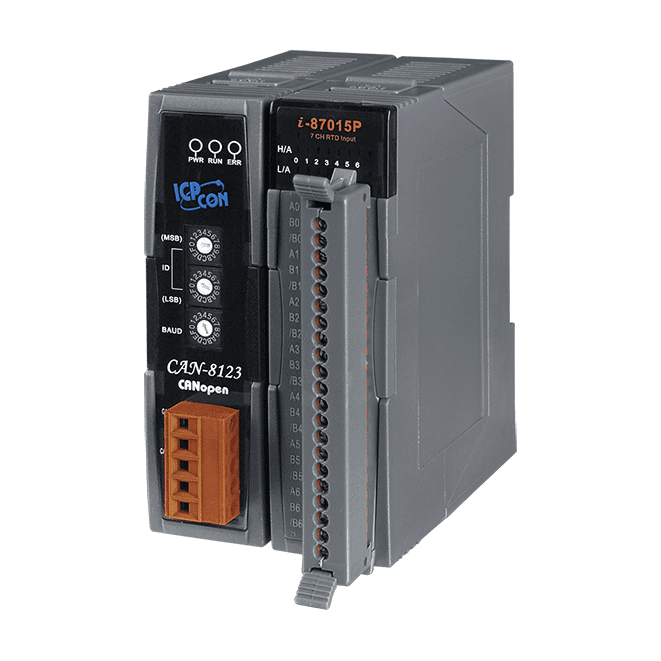

CAN-8123-G CANopen Remote I/O Unit with 1 I/O Expansion Slot
CANopen slave remote I/O unit with one expansion slot for I-87K or I-8000 series DI, DO, AI and AO modules, plus dynamic EDS file generation for master configuration.
- CANopen slave with CiA 301 v4.02 and CiA 401 v2.1 device profile support
- One I/O expansion slot for I-87K or I-8000 series DI, DO, AI and AO modules
- Baud rate 10 k ~ 1 M with node IDs from 1 to 255
- 16/32 PDO configuration with event, remote, cyclic and acyclic SYNC modes and PDO mapping (see source note)
- Emergency message support and node guarding or heartbeat producer error control
- Dynamic EDS file generation via utility tool, based on CiA SP306
2 690,62 kr per stk.
| 1–9 stk. | 2 690,62 kr | |
|---|---|---|
| 10–30 stk. | 2 607,51 kr | −3 % |
| 31+ stk. | 2 555,57 kr | −5 % |
Produktinformasjon "CAN-8123-G CANopen Remote I/O Unit with 1 I/O Expansion Slot"
CAN-8123-G is a CANopen slave unit for distributed I/O on CAN bus networks. It follows CiA 301 v4.02 and CiA 401 v2.1, so it can be integrated with standards-based CANopen masters. Process data is handled through PDOs with several transmission modes, and PDO mapping is available for configuring which data is exchanged.
A single expansion slot lets you tailor the I/O to the application. The unit accepts a range of ICP DAS digital and analogue slot modules from the I-87K and I-8000 series, covering digital inputs, digital outputs, analogue inputs and analogue outputs. A utility is supplied to generate the EDS file dynamically, which is based on CiA SP306 and is intended for compatibility with different CANopen master interfaces.
The unit has an integrated 120Ω terminating resistor, isolation ratings of 3000 VDC (DC-to-DC) and 2500 Vrms (photo-coupler), and an operating range of -25 ~ +75 °C. It mounts on a DIN rail and is suited to industrial machinery, laboratory equipment, maritime and medical installations among other sectors.
Applications
- Industrial Machinery
- Laboratory Equipment & Research
- Restaurant Appliances
- Maritime
- Medical
- Specialty Vehicles
| Product type: | CANopen Remote I/O Unit |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Isolation: | 3000 VDC (DC-DC), 2500 Vrms (photo-coupler) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 1 slot |
| CANopen | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 255 |
| No. of PDOs | 32 RxPDO , 32 TxPDO |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Mechanical | |
| Dimensions (mm) | 64 x 119 x 91 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
