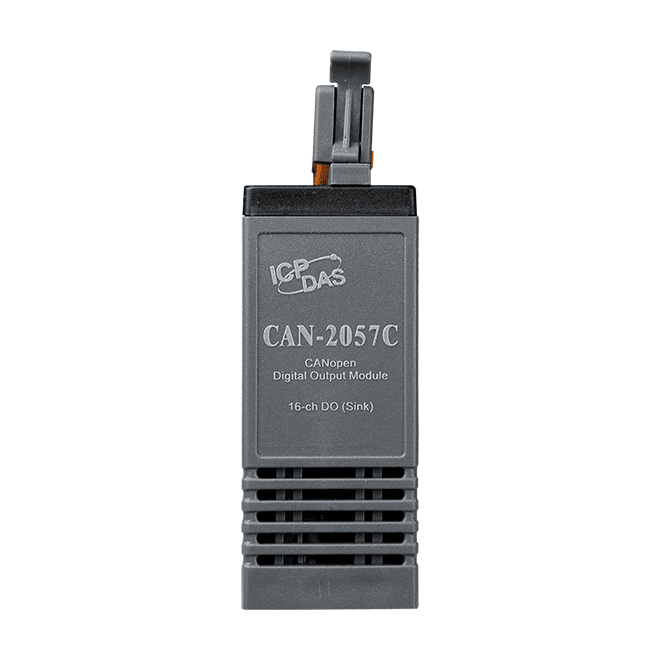

CAN-2057C CANopen Slave Module, 16-ch Isolated NPN Digital Output
CANopen slave module with 16 isolated open-collector sink (NPN) digital outputs, 100 mA per channel, for DIN-rail mounting on CiA 301 v4.02 and CiA 401 v2.1 networks.
- 16 isolated open-collector sink (NPN) digital outputs, 100 mA per channel, +5 ~ +30 VDC load voltage
- CANopen NMT slave conforming to CiA 301 v4.02 and CiA 401 v2.1, validated with the CiA Conformance Test tool
- Default EDS file provided for straightforward integration with standard CANopen masters
- Output polarity and error-value output settings can be configured and saved
- Dynamic PDO support with 10 RxPDO and 10 TxPDO, including event-triggered, remote-requested and cyclic/acyclic SYNC modes
- I/O pair-connection function
1 807,60 kr per stk.
| 1–9 stk. | 1 807,60 kr | |
|---|---|---|
| 10–30 stk. | 1 755,66 kr | −3 % |
| 31+ stk. | 1 714,10 kr | −5 % |
Produktinformasjon "CAN-2057C CANopen Slave Module, 16-ch Isolated NPN Digital Output"

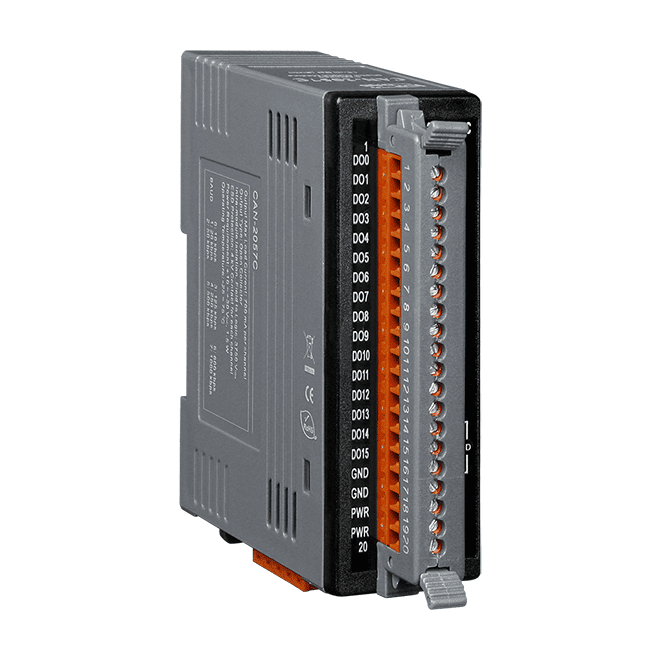

CAN-2057C CR is a CANopen slave module that drives 16 isolated open-collector sink (NPN) digital outputs. It follows DS-301 v4.02 and DSP-401 v2.1, so the outputs can be set and monitored over standard CANopen messaging from any conformant master. Each channel handles up to 100 mA at a load voltage of +5 ~ +30 VDC, which suits relays, indicators and resistive loads.
The module has passed the CiA CANopen Conformance Test tool and ships with a default EDS file, so it can be added to a standard CANopen master without custom driver work. Output polarity and error-value behaviour can be configured and saved, and dynamic PDO support gives flexibility in how process data is mapped.
Supplied with CE, UKCA, FCC, RoHS and WEEE certifications, the module is intended for DIN-rail installation across the -25 ~ +75 °C operating range. Its built-in 120Ω terminal resistor and hardware watchdog help simplify network termination and fault handling.
Applications
- Alarm detector
- Switch detection
- I/O pair-connection
- Relay driving
- Resistance load driving
- Light control
| Product type: | Digital output module |
|---|---|
| Interface: | CANopen |
| Protocol: | CANopen |
| Digital outputs: | 16 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |

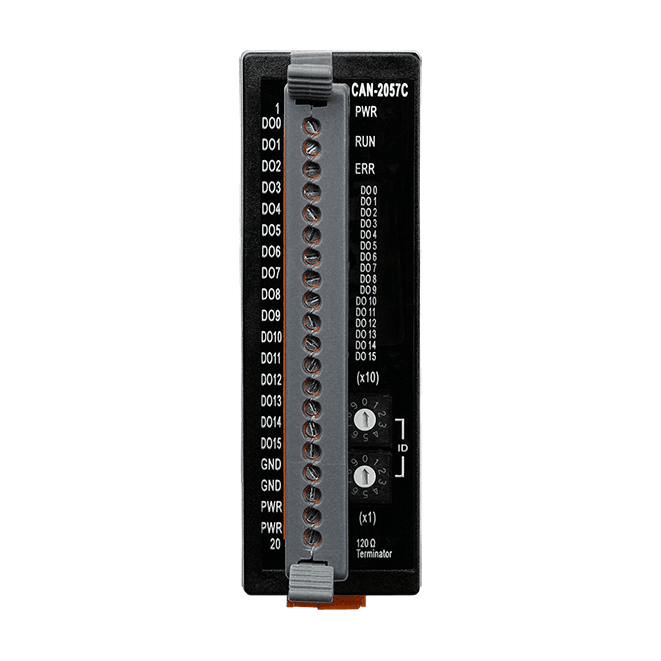

| Status | 3 LEDs to PWR, RUN and ERR |
| Digital Output | |
| Channels | 16 (Sink) |
| Type | Open-collector |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA per channel |
| Intra-module Isolation | 3750 Vrms |
| CANopen | |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |

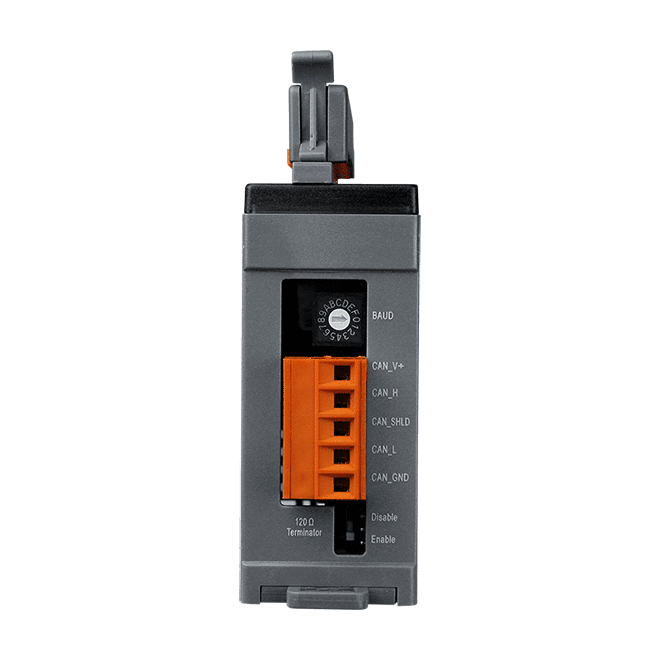

| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO , 10 TxPDO |
| PDO Mode | Event Triggered, Remotely requested, Cyclic and acyclic SYNC |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
