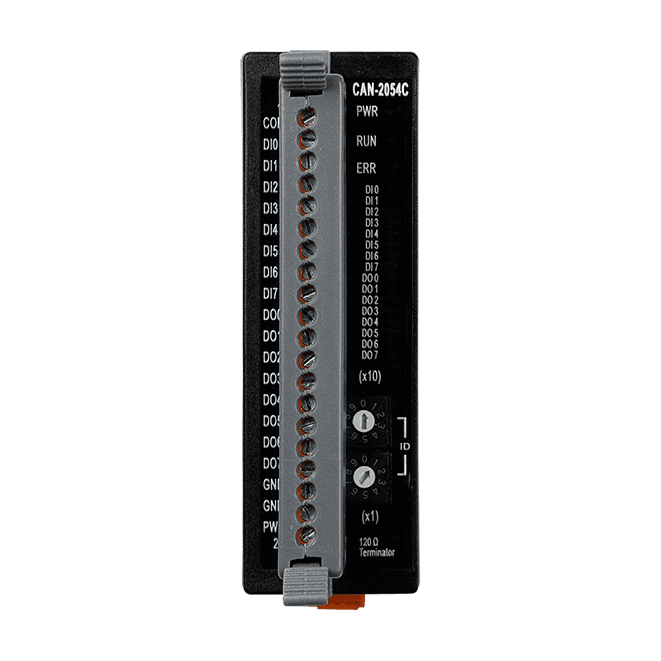

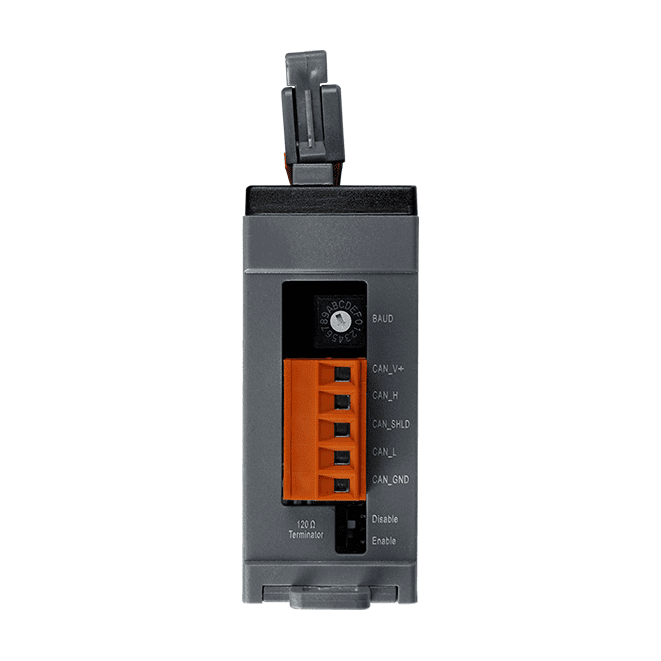

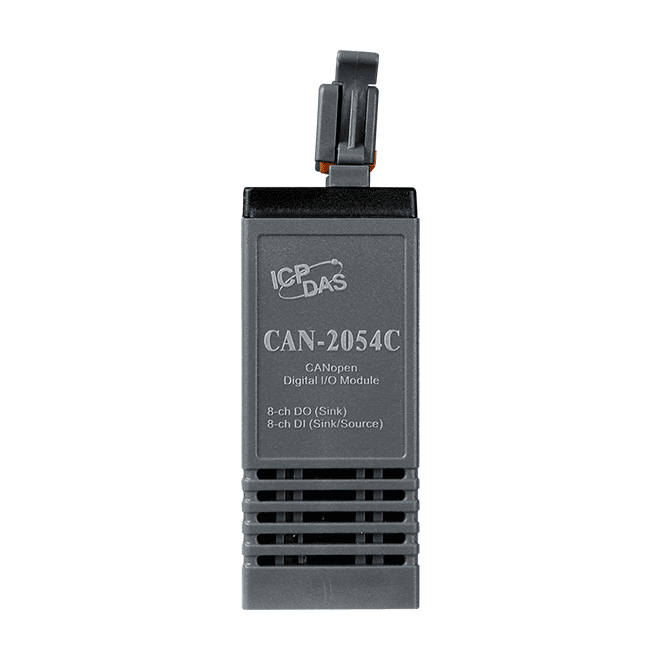

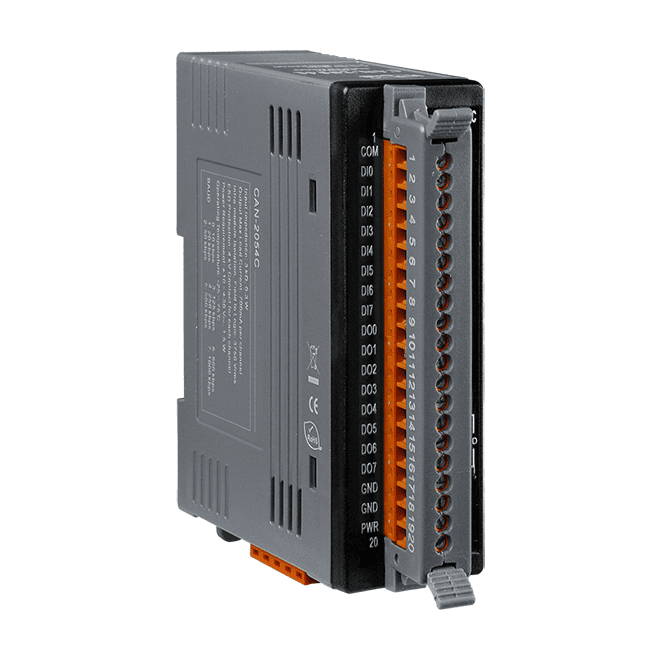

CAN-2054C CANopen Slave I/O Module, 8-ch Isolated DI and 8-ch Isolated DO
CANopen slave module with 8 isolated wet digital inputs and 8 isolated sink-type NPN open-collector outputs, for DIN-rail mounting on CANopen networks.
- Eight isolated wet digital inputs, sink or source, ON level +3.5 to +30 VDC
- Eight isolated sink-type open-collector outputs, 700 mA per channel
- CANopen NMT slave conforming to CiA DS-301 v4.02 and DSP-401 v2.1
- Default EDS file supplied for standard CANopen master configuration
- Support for PDO mapping, with 10 RxPDO and 10 TxPDO
- Baud rates from 10 k to 1 M, node IDs 1 to 99
1 890,71 kr per stk.
| 1–9 stk. | 1 890,71 kr | |
|---|---|---|
| 10–30 stk. | 1 838,76 kr | −3 % |
| 31+ stk. | 1 797,21 kr | −5 % |
Produktinformasjon "CAN-2054C CANopen Slave I/O Module, 8-ch Isolated DI and 8-ch Isolated DO"
CAN-2054C CR is a CANopen slave I/O module that brings eight isolated digital inputs and eight isolated sink-type digital outputs onto a CAN bus network. It operates as an NMT slave and follows CiA DS-301 v4.02 and DSP-401 v2.1, so it can be read and configured through a standard CANopen master.
The inputs are wet-type and accept sink or source signals, with an ON level from +3.5 to +30 VDC. Each output is an open-collector channel rated at 700 mA per channel, suited to switching loads from +5 to +30 VDC. Each channel has 4 kV contact ESD protection, and the module includes a default EDS file and a built-in 120 Ω terminal resistor.
Pair-Connect and PDO mapping support simplify network setup, and a hardware watchdog helps the module recover from faults. The unit is DIN-rail mounted and specified for an operating range of -25 to +75 °C.
Applications
- Machine control
- Factory automation
- Packaging machine control
- Remote data acquisition
- Environmental monitoring
| Product type: | Remote I/O module |
|---|---|
| Interface: | CAN bus |
| Protocol: | CANopen |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | 3 LEDs to PWR, RUN and ERR |
| Digital Input | |
| Channels | 8 (Sink/Source) |
| Type | Wet |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.3 W |
| Digital Output | |
| Channels | 8 (Sink) |
| Type | Open-collector |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 700 mA per channel |
| Intra-module Isolation | 3750 Vrms |
| CANopen | |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO , 10 TxPDO |
| PDO Mode | Event Triggered, Remotely requested, Cyclic and acyclic SYNC |
| Error Control | Node Guarding protocol or Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
