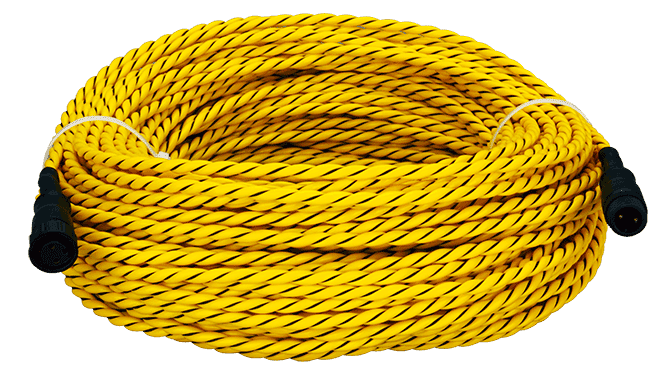

CA-LLD-DC100X-L500 Liquid Leak Detection Cable with Cable-Break Detection, 50 m
Liquid leak detection cable for the iSN-101/104 system, with cable-break detection and snap-in connectors for series connection. 50 m, 6 mm fluoropolymer cable.
- Detects liquid leaks across wide, open areas where leak paths are not easily predetermined
- Cable-break detection on the signal leader and detection cables, reported to the iSN-101/104 alarm buzzer
- Snap-in connectors at both ends allow multiple detection cables to be connected in series
- Signal leader cable plus all detection cables can reach a maximum of 500 m
- 6 mm fluoropolymer carrier with 2 x 30 AWG sensing wires and conductive fluoropolymer jacket
- Maximum continuous operating temperature of 70 °C
4 581,33 kr per stk.
| 1–9 stk. | 4 581,33 kr | |
|---|---|---|
| 10–30 stk. | 4 446,28 kr | −3 % |
| 31+ stk. | 4 352,78 kr | −5 % |
Produktinformasjon "CA-LLD-DC100X-L500 Liquid Leak Detection Cable with Cable-Break Detection, 50 m"
The CA-LLD-DC100X-L500 is a 50 m liquid leak detection cable for covering wide, open areas where the path a leak will take is hard to predict. It can be run alongside liquid supply and return lines and suits surfaces with several potential leak points.
Compared with the original CA-LLD-DC100-Lxxx cable, this variant adds cable-break detection and can be chained with other detection cables. A break in the signal leader cable or the detection cable is reported immediately to the alarm buzzer of the iSN-101/104 unit.
The cable has snap-in connectors at both ends, so several detection cables can be joined in series to extend coverage. The signal leader cable and all detection cables together can reach up to 500 m.
- Fluoropolymer carrier, 6 mm cable diameter
- Sensing wires: 2 x 30 AWG with conductive fluoropolymer jacket
- Maximum continuous operating temperature 70 °C
- RoHS and WEEE certified
Applications
- Liquid leak detection over larger surface areas with multiple potential leak points
- Open areas where the path of a leak cannot be predicted
- Monitoring around liquid supply and return lines
| Product type: | Liquid leakage detection cable |
|---|---|
| Operating temperature: | Max 70 °C |
