AXP-9391-IoT Windows 10 IoT PAC, 3-Slot, Intel Atom E3950
3-slot metal PAC combining Intel Atom E3950 computing, I/O and operator interface in one unit, running Windows 10 IoT Enterprise LTSC with 8 GB RAM and 128 GB SSD.
- Windows 10 IoT Enterprise LTSC (64-bit) runs Universal Windows apps and traditional Windows applications simultaneously
- Intel Atom E3950 processor, 1.6 ~ 2.0 GHz, 4C4T, with 8 GB DDR4 SDRAM
- 128 GB SSD (SATAIII) plus a CFast card slot for storage
- Three I/O expansion slots for I-9K, I-97K and e-9K series local modules
- Remote I/O expansion via Ethernet I/O modules and RS-485 I/O modules
- Dual 10/100/1000M Ethernet ports, VGA and HDMI display output
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "AXP-9391-IoT Windows 10 IoT PAC, 3-Slot, Intel Atom E3950"

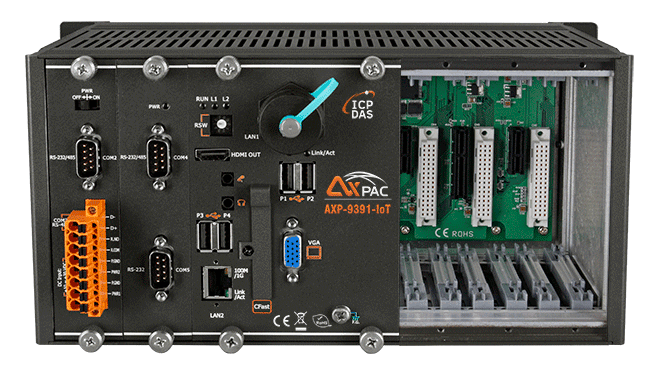

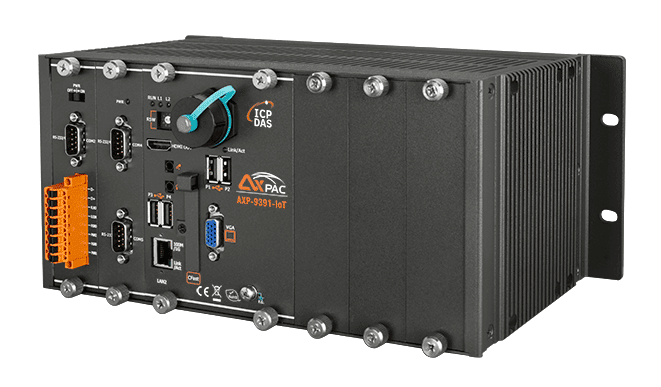

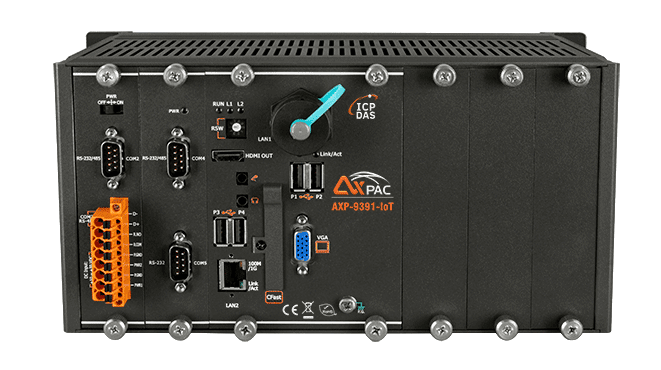

The AXP-9391-IoT CR is a Windows-based programmable automation controller that brings computing, I/O and HMI together in a single metal housing. It suits projects where local visualisation, data acquisition and control need to sit on one device rather than being spread across separate units.
Three I/O expansion slots accept local modules from the I-9K, I-97K and e-9K series. Remote expansion is also possible through Ethernet I/O modules and RS-485 I/O modules, giving engineers a flexible route to distributed I/O. The unit runs Windows 10 IoT Enterprise LTSC (64-bit), so Universal Windows apps and traditional Windows applications can run side by side, and it is specified for use in harsh environments.
Connectivity includes dual 10/100/1000M Ethernet ports, VGA and HDMI display outputs, USB 2.0 and USB 3.0 ports, and a mix of RS-232 and RS-485 serial interfaces with 3000 VDC isolation. The CR variant is described as RoHS compliant.
Applications
- HMI and operator interface
- Data acquisition
- Control and I/O integration
- Harsh environment deployment
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Intel Atom® Processor Apollo Lake E3950, 1.6 ~ 2.0 GHz, 64-bit, 4C4T |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 8 GB DDR4 SDRAM |
| Storage | 1 x 128 GB SSD (SATAIII) 1 x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | 1xVGA, 1xHDMI |
| Resolution | VGA 1920 x 1200 @ 60Hz HDMI 4096 x 2160 @ 30P |
| LED Indicators | |
| Status | 1 x System 2 x Power 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K, e-9K series |
| Slots | 3 x serial/parallel bus 3 x e-Bus x1 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Intel® Ethernet Controller I210IT) |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated) 1 x RS-485 (3000 VDC Isolated) 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 2 x USB 3.0 |
| Power | |
| Capacity | 25 W supply to CPU and backplane, 25 W supply to I/O expansion slots and USB ports, 50 W in total |
| Input Range | +19 ~ 30 VDC (2 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 20 W |
| Mechanical | |
| Dimensions (mm) | 300 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Cooling Type | CPU Heat Sink / Fanless |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
