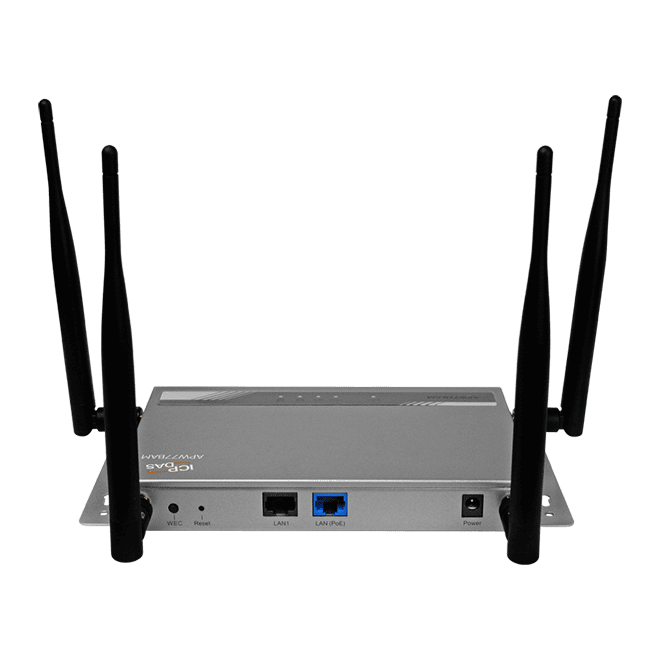

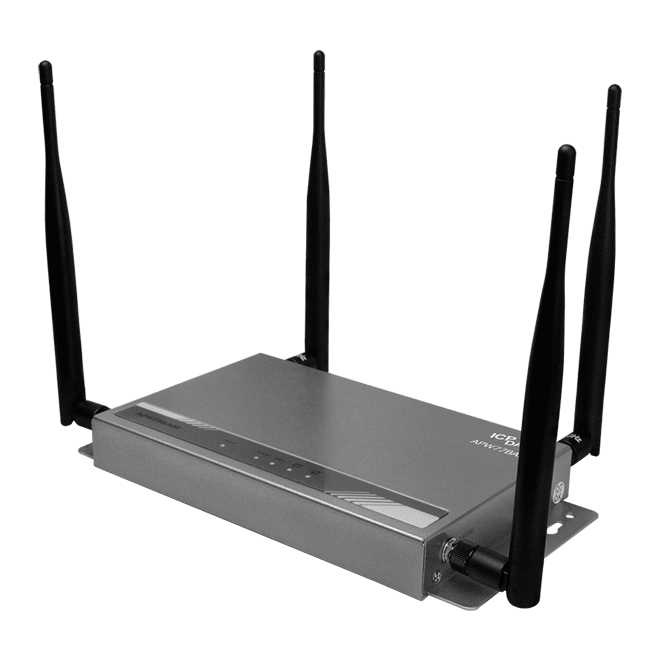

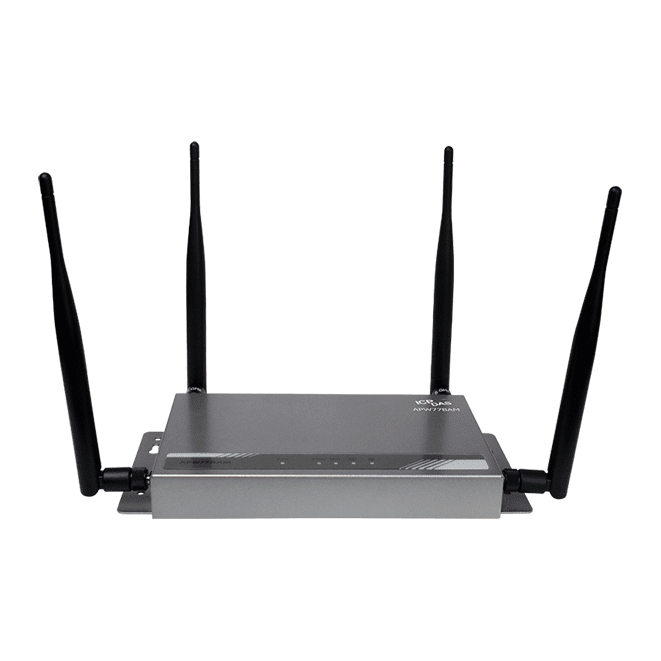

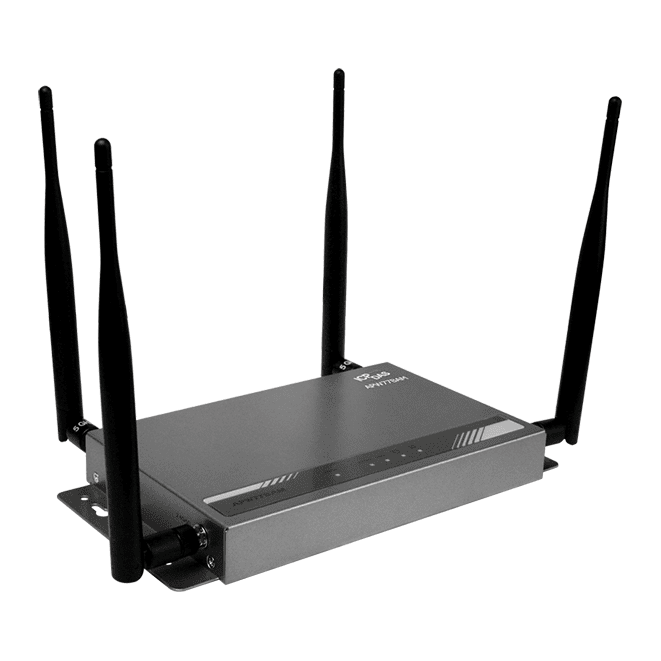

APW77BAM-EU Wall-Mount Wi-Fi Access Point, 802.11ac Dual-Band Thin AP
Wall-mount dual-band Wi-Fi access point for 802.11a/b/g/n/ac networks, with multiple SSIDs, configurable transmit power and channel, and PoE (IEEE 802.3af) or 12 VDC power.
- Wall-mount thin access point with two RJ45 Gigabit Ethernet ports
- IEEE 802.11a/b/g/n/ac with 2.4 GHz up to 300 Mbps and 5 GHz up to 866 Mbps (MIMO 2T2R)
- Multiple SSIDs emulating up to 8 APs, with separate packets via VLAN IDs
- Universal Repeater mode plus AP Only, WDS and Client modes
- Configurable AP transmit power and channel
- WEP, WPA, WPA2, WPA-PSK, WPA2-PSK and 802.1x security
3 573,64 kr per stk.
| 1–9 stk. | 3 573,64 kr | |
|---|---|---|
| 10–30 stk. | 3 469,76 kr | −3 % |
| 31+ stk. | 3 397,04 kr | −5 % |
Produktinformasjon "APW77BAM-EU Wall-Mount Wi-Fi Access Point, 802.11ac Dual-Band Thin AP"
The APW77BAM-EU CR is a wall-mount thin access point aimed at medium-sized businesses that need to extend an existing wireless network. It runs on 2.4 GHz and 5 GHz with IEEE 802.11a/b/g/n/ac support and can be powered from IEEE 802.3af PoE or a 12 VDC/1A supply.
Operating modes include AP Only, WDS Only, WDS Hybrid, Universal Repeater and Client. Universal Repeater mode is a practical way to extend coverage by linking to other access points, which helps when building a larger wireless infrastructure.
For segmented access, the unit can emulate up to 8 APs with different ESSIDs, with traffic separated by VLAN IDs. This suits separating guest and corporate wireless traffic. The access point supports up to 128 clients and the WEP, WPA, WPA2, WPA-PSK, WPA2-PSK and 802.1x security methods.
Applications
- Extending existing wireless networks in medium-sized businesses
- Segmenting guest and corporate wireless access
- Building larger wireless infrastructures by linking access points
| Product type: | Wi-Fi Access Point |
|---|---|
| Interface: | RJ45 |
| Protocol: | IEEE 802.11a/b/g/n/ac |
| Ports: | 2 |
| PoE: | IEEE 802.3af |
| Power input: | 12 VDC/1A |
| Operating temperature: | 0 ~ 50 °C |
| Mounting: | Wall-mount |
Spesifikasjoner
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11a/b/g/n/ac |
| Mode | Thin AP AP Only/WDS Only/WDS Hybrid/Universal Repeater/Client Modes |
| Encryption | WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK / 802.1x |
| Data Transmission Rate | 2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R) |
| Client | Max. 128 Clients |
| Channels | 2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165 |
| Antenna | Omni-Directional 5 dBi @ 2.4 GHz 5 dBi @ 5 GHz |
| Ethernet | |
| Ports | 2 × RJ45 GE |
| PoE | IEEE 802.3af PD |
| Power | |
| Input Range | +12VDC/1A (DC Jack) |
| Mechanical | |
| Dimensions (mm) | 225 x 115 x 25 (W x L x H)(with Mounting kit) |
| Installation | Wall-Mount |
| Environment | |
| Operating Temperature | 0 ℃ ~ 50 ℃ |
| Storage Temperature | -40 ℃ ~ 85 ℃ |
| Humidity | 10% ~ 95% (non-condensing) |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
