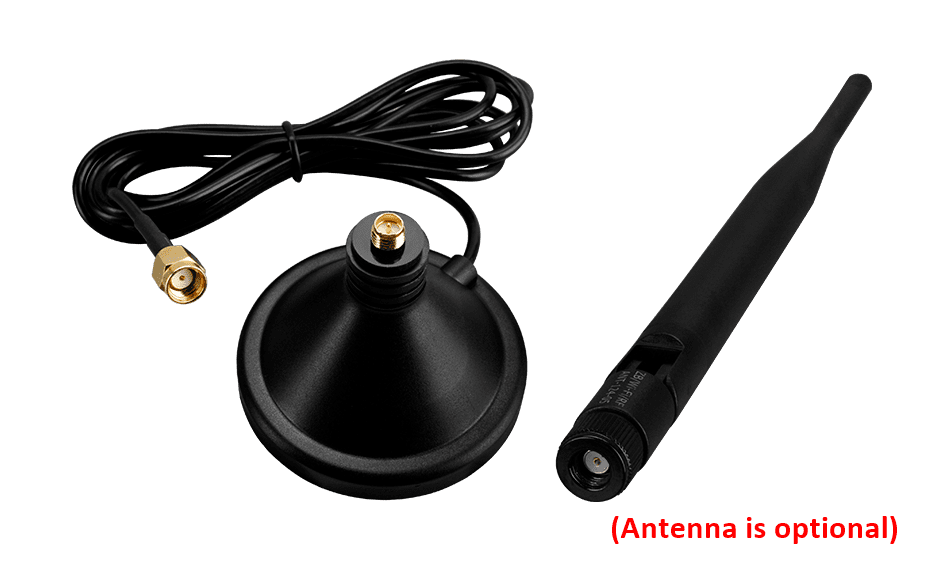

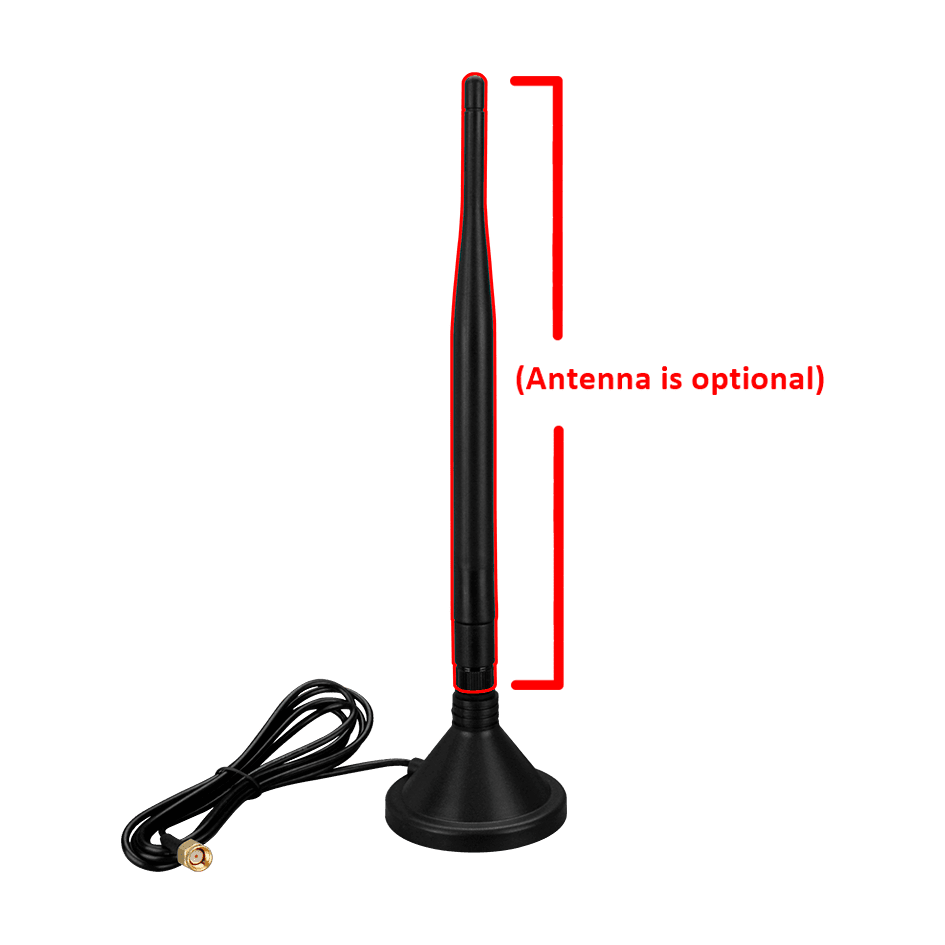

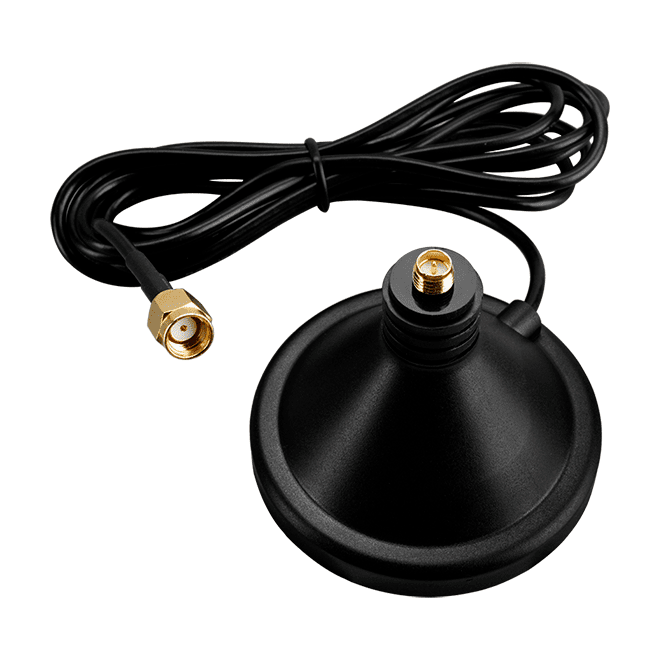

ANT-Base-02 Magnetic Base Antenna Mount, RP-SMA Male, 1.5 m Cable, 2.4 GHz
Magnetic antenna base with a 1.5 m cable and RP-SMA male plug for the 2.4 GHz band, rated for operation from -30 °C to +80 °C.
- Magnetic mount base for attaching the antenna to metal surfaces
- RP SMA male (plug) connector
- 1.5 m cable for flexible antenna placement
- 2.4 GHz band
- Operating temperature -30 °C ~ +80 °C
- Compact body, φ60 x 42 mm with 1.5 M cable
155,83 kr per stk.
| 1–9 stk. | 155,83 kr | |
|---|---|---|
| 10–30 stk. | 155,83 kr | |
| 31+ stk. | 155,83 kr |
Produktinformasjon "ANT-Base-02 Magnetic Base Antenna Mount, RP-SMA Male, 1.5 m Cable, 2.4 GHz"
The ANT-Base-02 is a magnetic mount antenna base that lets you position a 2.4 GHz antenna on metal surfaces, away from the equipment it serves. The 1.5 m cable gives flexibility in routing the antenna to a suitable location.
The base terminates in an RP SMA male (plug) connector, so it attaches to antennas and equipment with a matching RP-SMA female port. With an operating temperature range of -30 °C to +80 °C, it suits installations where the antenna is exposed to a wide range of conditions.
Compact at φ60 x 42 mm with 1.5 M cable and weighing 70 ± 2 g, it is a practical choice where a small, removable mount is needed. The source data does not specify antenna gain for this base, so check the gain of the antenna you intend to pair with it.
Applications
- Remote mounting of a 2.4 GHz antenna on metal surfaces
- Positioning an antenna away from the host equipment via cable
| Product type: | Antenna mount |
|---|---|
| Interface: | RP-SMA Male |
| Operating temperature: | -30 ~ +80 °C |
| Mounting: | Magnetic |
Spesifikasjoner
| Mechanical | |
|---|---|
| Dimensions (mm) | φ60 x 42 mm with 1.5 M cable |
| Weight | 70 ± 2 g |
| Environment | |
| Operating Temperature | -30 °C ~ +80 °C |
| Antenna | |
| Type | Magnetic mount base |
| Connector | RP SMA Male (Plug) |
| Gain (dBi) | - |
| Band | 2.4GHz Band |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
