A-726 ISA Bus 6-ch 12-bit Analogue Output Board
ISA bus analogue output card with six 12-bit channels for voltage and 4 ~ 20 mA sink current, plus 16 digital inputs and 16 digital outputs. Compatible with PCL-726 and A-626.
- Six 12-bit analogue output channels with individually selectable voltage and current ranges
- Output ranges: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V and 4 ~ 20 mA (sink)
- 16 digital input and 16 digital output channels, 5 V/TTL, static update mode
- Fully compatible with the A-626 and compatible with the PCL-726
- Internal (-5 V or -10 V) or external (±10 V max., AC or DC) reference voltage options
- ISA bus with 8-bit data bus and selectable IRQ level from IRQ3 to IRQ15
2 888,00 kr per stk.
| 1–9 stk. | 2 888,00 kr | |
|---|---|---|
| 10–30 stk. | 2 794,51 kr | −3 % |
| 31+ stk. | 2 742,56 kr | −5 % |
Produktinformasjon "A-726 ISA Bus 6-ch 12-bit Analogue Output Board"

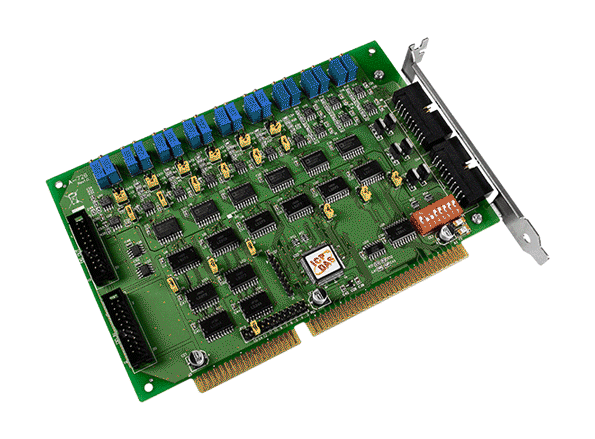

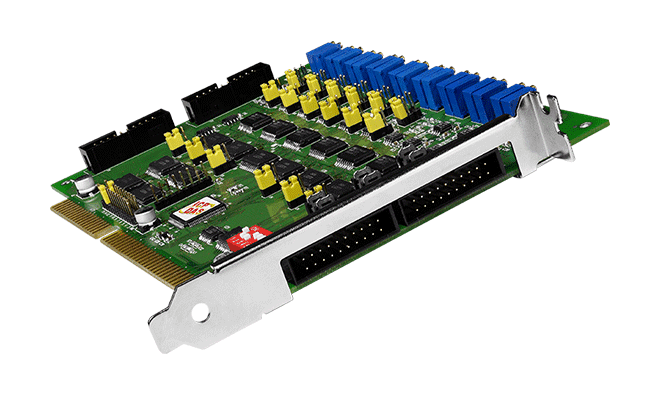

The A-726 CR is an ISA bus data acquisition card for engineers who need six 12-bit analogue outputs alongside 16 TTL digital inputs and 16 TTL digital outputs in a single PC slot. It is designed to be fully compatible with the A-626, so it can be used as a like-for-like option in existing ISA-based systems.
Each D/A channel can be set individually by jumper to one of several output ranges: ±10 V, ±5 V, 0 ~ 5 V, 0 ~ 10 V, or 4 ~ 20 mA (sink). The reference circuit can use an internal -5 V or -10 V source, or an external reference of up to ±10 V, AC or DC. An on-board reference device is included to limit reference voltage drift with temperature.
Software support covers DLL and ActiveX control, with sample programs for Turbo C++, Borland C++, Microsoft Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW. Driver support is listed for Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/Vista/7.
Applications
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT and frequency analysis
- Transient analysis
- Production test
- Process control
| Product type: | ISA DAQ board |
|---|---|
| Interface: | ISA Bus |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog outputs: | 6 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Analog Output | |
| Channels | 6 |
| Range | Voltage: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V Current: 4 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ± 10 V |
| Response Time | 500 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| PC Bus | |
| Type | ISA |
| Data Bus | 8-bit |
| Power | |
| Consumption | 0.9 A @ +5 V 110 mA @ +12 V 90 mA @ -12 V |
| Mechanical | |
| Dimensions (mm) | 106 x 157 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
