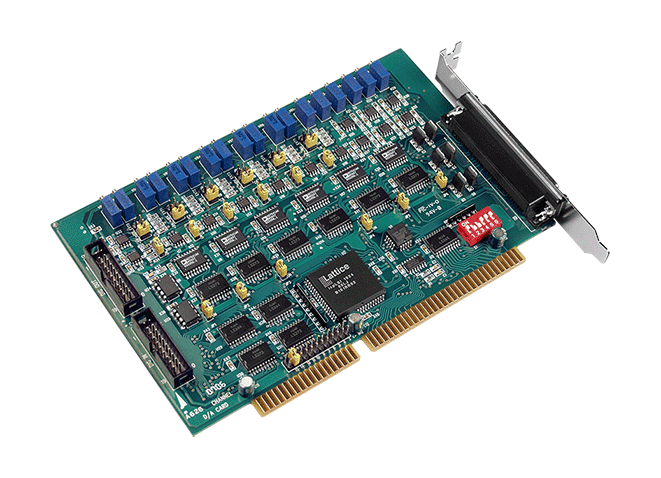

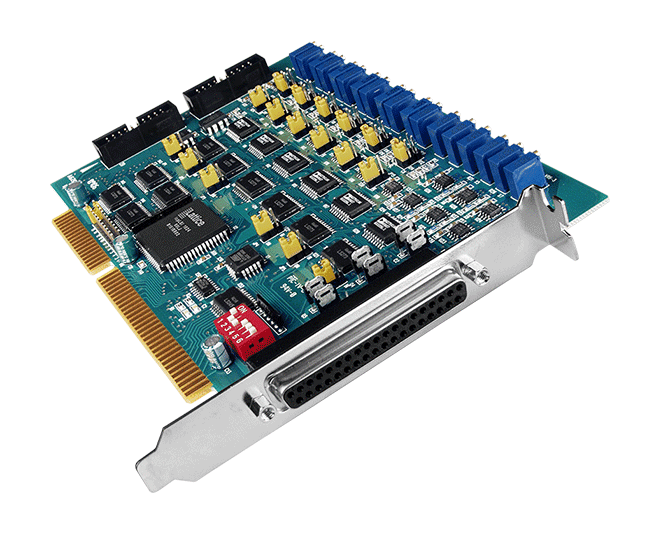

A-626 ISA Bus 6-ch 12-bit Analog Output Board
ISA bus DAQ board with six 12-bit analogue outputs, 16 digital inputs and 16 digital outputs, supporting voltage and 4 ~ 20 mA sink current ranges.
- ISA bus interface with 8-bit data bus and IRQ levels from IRQ3 to IRQ15
- Six 12-bit analogue output channels with a 500 kHz typical response time
- Voltage ranges of 0 ~ 5 V, 0 ~ 10 V, ±5 V and ±10 V, plus 4 ~ 20 mA sink current output
- Per-channel jumper selection of output range
- 16 DI channels and 16 DO channels at 5 V/TTL levels
- Internal reference voltage of -5 V or -10 V, with external reference support up to ±10 V
2 888,00 kr per stk.
| 1–9 stk. | 2 888,00 kr | |
|---|---|---|
| 10–30 stk. | 2 794,51 kr | −3 % |
| 31+ stk. | 2 742,56 kr | −5 % |
Produktinformasjon "A-626 ISA Bus 6-ch 12-bit Analog Output Board"
The A-626 CR is an ISA bus data acquisition board for PC-based control systems that need six 12-bit analogue outputs alongside 16 digital inputs and 16 digital outputs. Each D/A channel can be set to a voltage range of 0 ~ 5 V, 0 ~ 10 V, ±5 V or ±10 V, or to a 4 ~ 20 mA sink current output.
Why choose this model: It suits engineers building analogue control and test rigs on legacy ISA-based PCs. The on-board BB Ref-01 reference chip is included to reduce thermal drift of the reference voltage. The board connects directly to DB-16P, DB-16R, DB-24PR, DN-20 and DN-37 wiring accessories, and this ordering code includes one CA-4002 D-Sub connector.
Driver support covers Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/Vista/7, with a DLL and ActiveX control plus sample programs for several development environments, including LabVIEW and Visual Basic. The A-726 is designed to be fully compatible with the A-626.
Applications
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT and frequency analysis
- Transient analysis
- Production test
- Process control
| Product type: | DAQ board |
|---|---|
| Interface: | ISA |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Operating temperature: | 0 ~ +60 °C |
Spesifikasjoner
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Analog Output | |
| Channels | 6 |
| Range | Voltage: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V Current: 4 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ± 10 V |
| Response Time | 500 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| PC Bus | |
| Type | ISA |
| Data Bus | 8-bit |
| Power | |
| Consumption | 0.9 A @ +5 V 110 mA @ +12 V 90 mA @ -12 V |
| Mechanical | |
| Dimensions (mm) | 106 x 157 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
