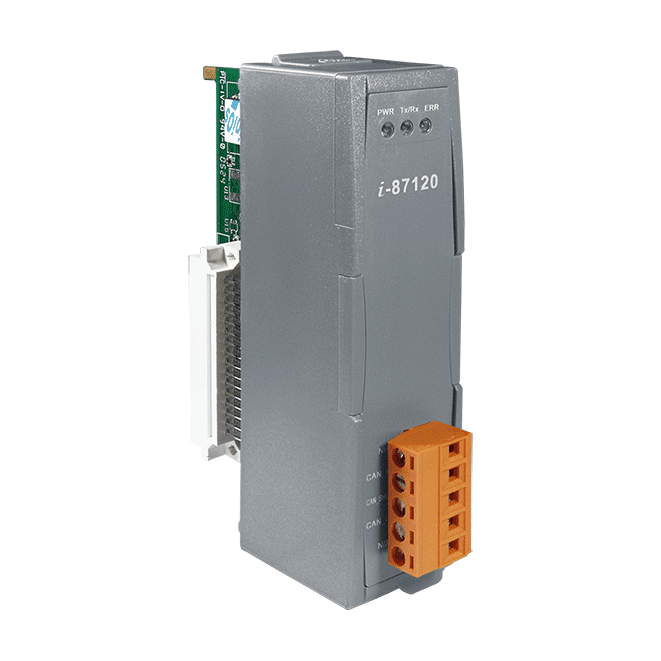

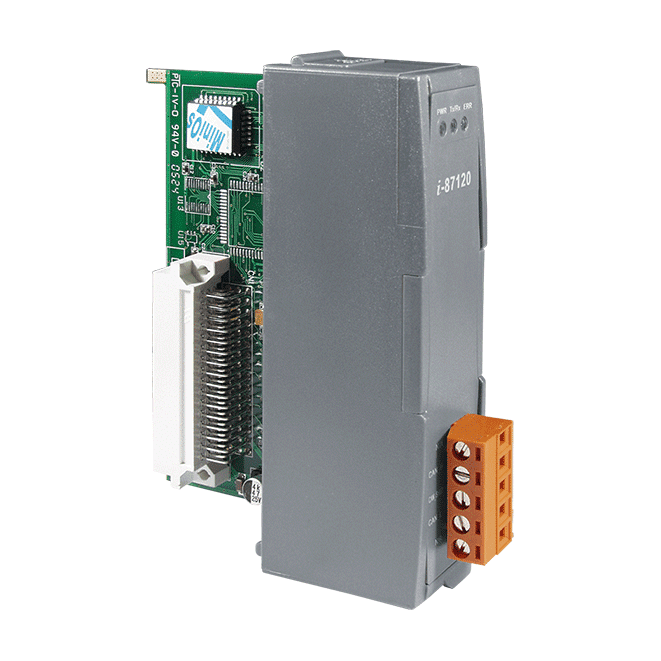

I-87120-G 1-port Programmable CAN Module for I-8000 and WinPAC Host Units
Plug-in 1-port CAN 2.0A/2.0B module for I-8000, iP-8000, ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6 host units, with 2500 Vrms photo-coupler isolation.
- Adds one CAN port to supported I-8000, iP-8000, ViewPAC, WinPAC, LinPAC and XPAC-8000-CE6 host units
- NXP SJA1000T CAN controller with 16 MHz clock, supporting CAN 2.0A and 2.0B to ISO-11898-2
- User-defined baud rate from 10 k to 1 M bps
- 4096-record CAN receive buffer and 4096-record command buffer from the host to the module
- C/C++ function libraries for sending and receiving CAN messages, with demos and utility included
- 2500 Vrms photo-coupler isolation and 3000 VDC DC-to-DC isolation
2 607,57 kr per stk.
| 1–9 stk. | 2 607,57 kr | |
|---|---|---|
| 10–30 stk. | 2 535,14 kr | −3 % |
| 31+ stk. | 2 483,40 kr | −5 % |
Produktinformasjon "I-87120-G 1-port Programmable CAN Module for I-8000 and WinPAC Host Units"
The I-87120-G adds a single CAN port to ICP DAS host units from the I-8000 and iP-8000 families, ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6. Once fitted, the host can operate as a CAN converter, a CAN slave device or a CAN master device on a CAN network.
The module uses an NXP SJA1000T controller and supports CAN 2.0A and CAN 2.0B to ISO-11898-2, with user-defined baud rates from 10 k to 1 M bps. Receive and command buffers of 4096 records each are provided, and C/C++ function libraries, demos and a utility are supplied to help build CAN send and receive applications.
The I-87120-G is the ordering code for this single-port version. It offers 2500 Vrms photo-coupler isolation and a jumper-selectable 120 Ω terminal resistor, with an operating temperature range of -25 ~ +75 °C.
Applications
- DeviceNet, CANopen, CAN J1939 and SDS protocol applications
- CAN bus communication
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage
- Semiconductor fabrication
- Control systems
| Product type: | CAN module |
|---|---|
| Interface: | CAN |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 |
| Isolation: | 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| Software | |
|---|---|
| Driver | For I-8000/ iP-8000/ ViewPAC-2000/ WinPAC-8000/ LinPAC-8000/ XPAC-8000-CE6 |
| SDK | TC/BC, GCC, VB.Net 2003, C#.Net 2003, VB.Net 2005, C#.Net 2005, eVC++ 4.0 |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| LED Indicators | |
| Status | 1 x Power 1 x CAN status 1 x Operating mode |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | 31 x 91 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
