tNS-200GIN PoE Injector, 1-Port 30 W, 10/100/1000Base-T(X)
Single-port PoE injector that adds up to 30 W of Power over Ethernet to one powered device over spare pairs, fed from a +46 ~ +53 VDC supply. DIN-rail mounted.
- Delivers up to 30 W of PoE to one device over a single Ethernet cable
- 100% IEEE 802.3at compliant, using spare pairs
- Automatic detection of powered devices (PD)
- Over-temperature, over-current and over/under-voltage detection
- +46 ~ +53 VDC input with reverse polarity protection
- Compact 52 x 86 x 27 mm plastic housing for DIN-rail mounting
799,91 kr per stk.
| 1–9 stk. | 799,91 kr | |
|---|---|---|
| 10–30 stk. | 768,75 kr | −4 % |
| 31+ stk. | 758,36 kr | −5 % |
Produktinformasjon "tNS-200GIN PoE Injector, 1-Port 30 W, 10/100/1000Base-T(X)"

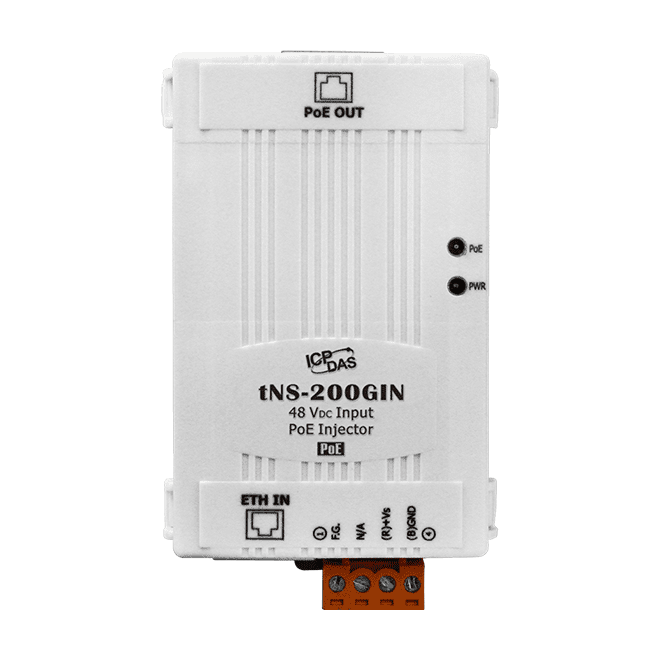

The tNS-200GIN CR is a single-port PoE injector for installations where a standard Ethernet link must also carry power to a remote device. It takes data from an RJ-45 input, passes it through to a PoE output and supplies up to 30 W on the spare pairs, so a compatible powered device needs only one cable.
Power comes from a +48 VDC input with a specified range of +46 ~ +53 VDC, and reverse polarity protection is fitted. The unit detects powered devices automatically and monitors for over-temperature, over-current and over/under-voltage conditions. It is 100% IEEE 802.3at compliant and rated for an operating temperature of -40 °C ~ +75 °C.

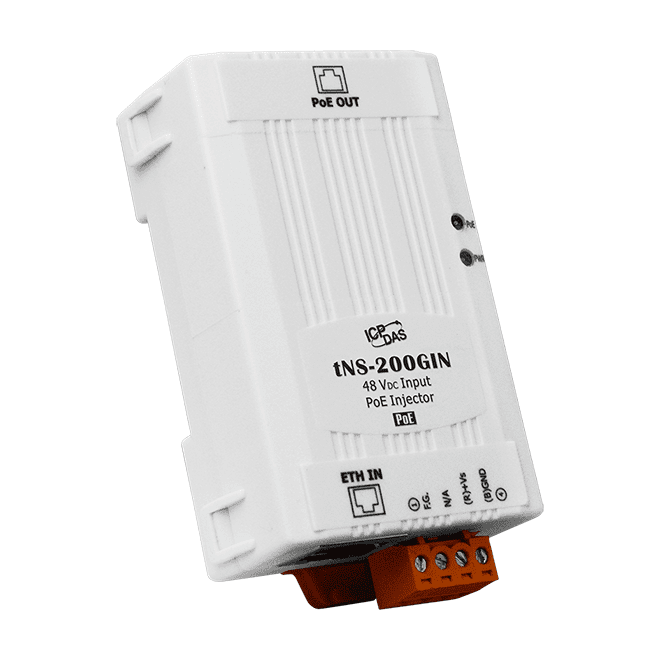

The plastic housing measures 52 x 86 x 27 mm (W x L x H) and mounts on a DIN rail, which suits control cabinets and industrial panels where space is limited.
Applications
- Powering PoE devices in industrial environments
- Single-cable data and power delivery to remote Ethernet devices in control cabinets
| Product type: | PoE Injector |
|---|---|
| Interface: | 10/100/1000Base-T(X) |
| Ports: | 1 x RJ-45 in, 1 x PoE out |
| PoE: | 30 W |
| Power input: | +46 ~ +53 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | Power, Power Device is detected |
| Ethernet | |
| Ports | 1 x RJ-45 in, 1 x PoE out, 10/100/1000Base-T(X) |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3at compliant |
| PoE Power | Up to 30 W |
| PoE Pin Assignments | V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +53 VDC |
| Consumption | 0.7 A@ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 x 86 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
