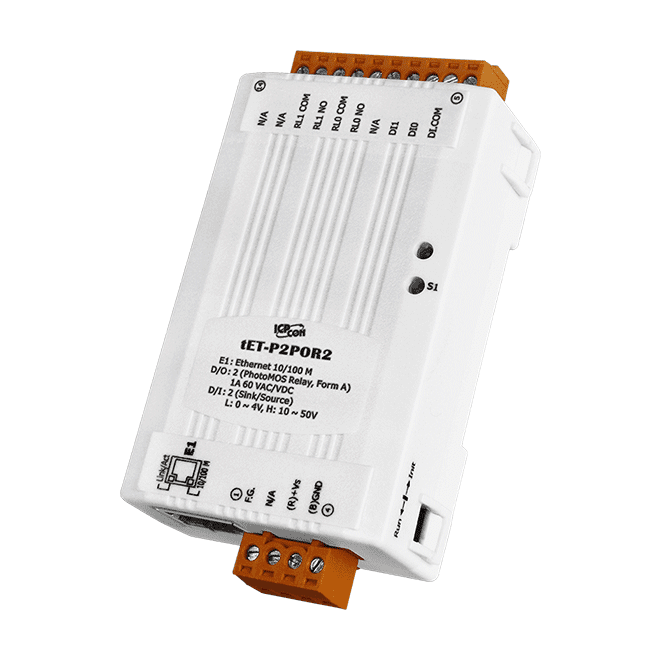

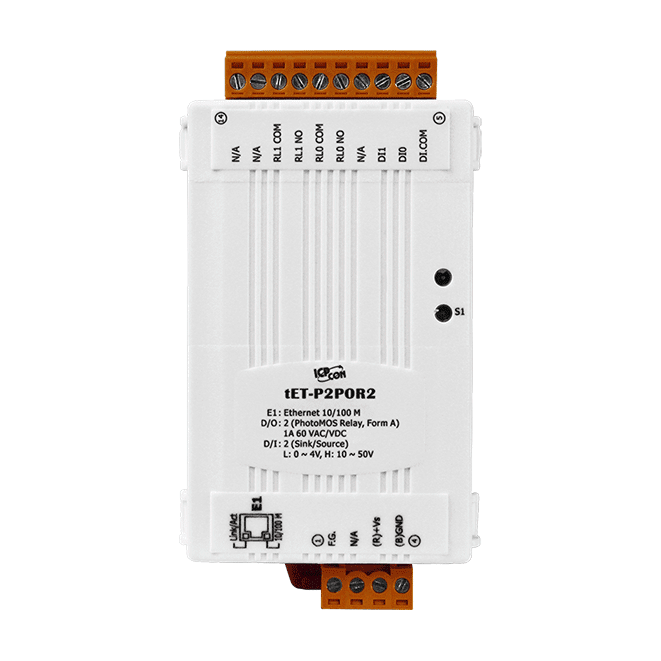

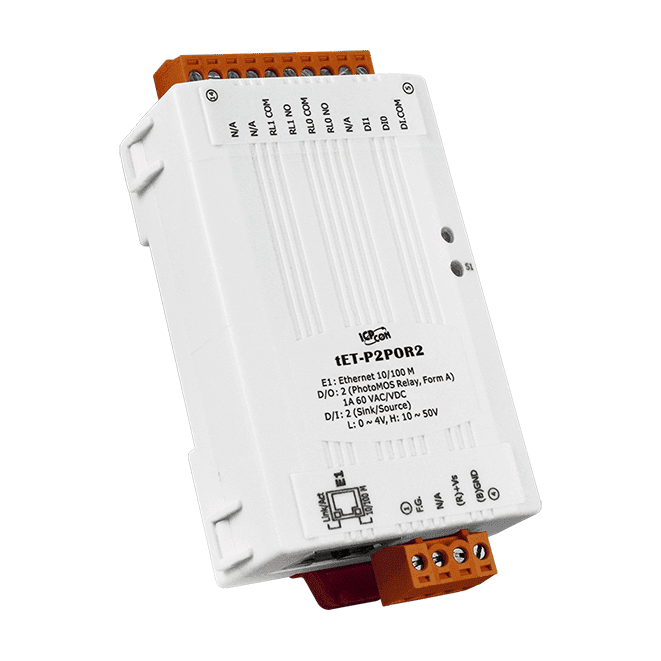

tET-P2POR2 Tiny Ethernet I/O Module, 2-ch DI and 2-ch PhotoMOS Relay
Compact Ethernet I/O module with 2 wet-contact digital inputs and 2 PhotoMOS relay outputs, supporting Modbus TCP, Modbus UDP and MQTT over 10/100 Base-Tx Ethernet.
- Two wet-contact digital inputs, sink/source, ON from +10 to +50 VDC
- Two PhotoMOS relay outputs (Form A), rated 60V/1.0A at -25 to +40°C
- Modbus TCP, Modbus UDP and MQTT protocol support over 10/100 Base-Tx Ethernet
- Dual watchdog (CPU and host) with programmable DO Power-on and Safe Values
- I/O pair connection (push and pull) for DI to remote DO control over Ethernet
- Latched DI, 32-bit DI counters and frequency measurement up to 3.5 kHz (without filter)
1 111,57 kr per stk.
| 1–9 stk. | 1 111,57 kr | |
|---|---|---|
| 10–30 stk. | 1 080,40 kr | −3 % |
| 31+ stk. | 1 059,63 kr | −5 % |
Produktinformasjon "tET-P2POR2 Tiny Ethernet I/O Module, 2-ch DI and 2-ch PhotoMOS Relay"
The tET-P2POR2 CR is a tiny IP-based I/O module that combines two wet-contact digital inputs with two PhotoMOS relay outputs. It is configured through a built-in web server and can be controlled over Ethernet using Modbus TCP, Modbus UDP or MQTT, which makes it straightforward to connect to HMI, SCADA, PLC and other software systems.
Beyond basic switching and sensing, the module offers latched digital inputs, 32-bit counters and frequency measurement, and I/O pair connection lets it poll local inputs and write to a remote digital output over the network. Its dual-watchdog function monitors both the module's own CPU and the host controller, with the outputs able to move to a predefined Safe Value if the host fails.
The module is powered from a +12 to +48 VDC terminal block and mounts on a DIN rail in a small 52 x 95 x 27 mm (W x L x H) housing. Relay contact ratings depend on operating temperature, so check the derating figures against your application before specifying it.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 2 |
| Relay outputs: | 2 |
| Ports: | 1 |
| Isolation: | 3750 Vrms (DI), 3000 Vrms (relay) |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Relay Output | |
| Channels | 2 |
| Type | PhotoMOS Relay, Form A |
| Contact Rating | 60V/1.0A (Operating Temperature -25 to +40°C) 60V/0.8A (Operating Temperature +40 to +60°C) 60V/0.7A (Operating Temperature +60 to +75°C) |
| Operate Time | 1.3 ms (Typical) |
| Release Time | 0.1 ms (Typical) |
| Electrical Endurance | Long Life and No Sparking |
| Isolation | 3000 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.9 W |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
