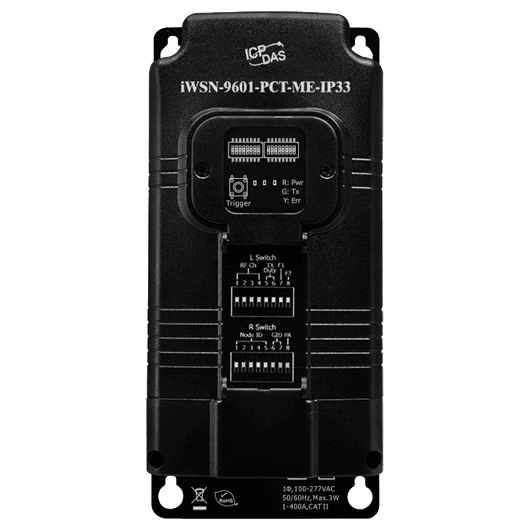

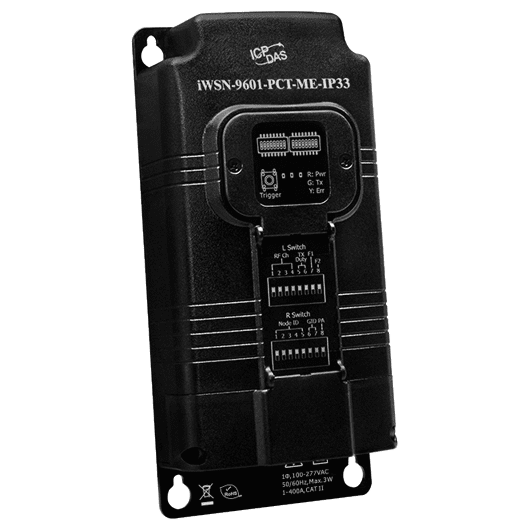

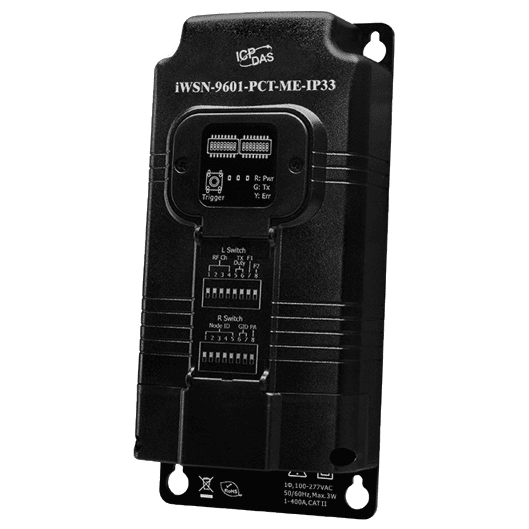

iWSN-9601-PCT-ME-IP33 Wireless Single-Phase 6-Loop Power Meter, No CTs
Wireless single-phase 6-loop AC power meter for iWSN networks, supplied without current transformers. Self-powered from the measured voltage cable, with kWh, kW, Vrms, Irms and power factor reporting.
- Single-phase AC measurement across 6 loops with one voltage input and six current (CT) inputs
- Split-core CT support; CTs are not included with this ordering code
- Powered from the measured voltage cable, with no extra power wiring required
- 433 MHz sub-GHz wireless with up to 64 wireless sub-networks and 100 m line-of-sight range
- Bi-directional kWh measurement with true RMS voltage and current calculations
- Built-in RTC timestamps each measurement, plus a 3-minute history data cache
4 955,31 kr per stk.
| 1–9 stk. | 4 955,31 kr | |
|---|---|---|
| 10–30 stk. | 4 809,88 kr | −3 % |
| 31+ stk. | 4 705,99 kr | −5 % |
Produktinformasjon "iWSN-9601-PCT-ME-IP33 Wireless Single-Phase 6-Loop Power Meter, No CTs"
The iWSN-9601-PCT-ME-IP33 is a wireless energy meter that monitors six AC circuits fed from one single-phase voltage source. This ordering code is supplied without current transformers, so split-core CTs, with a range of 1 A to 400 A depending on the type chosen, must be selected and purchased separately for each load.
The meter draws its supply from the measured voltage cable, so no separate power wiring is needed, which simplifies distributed installation and quick setup. Readings are sent over 433 MHz sub-GHz radio, a choice suited to crowded or shielded factory spaces, and a 3-minute history data cache supports data recovery. Each record carries a timestamp from the built-in RTC.

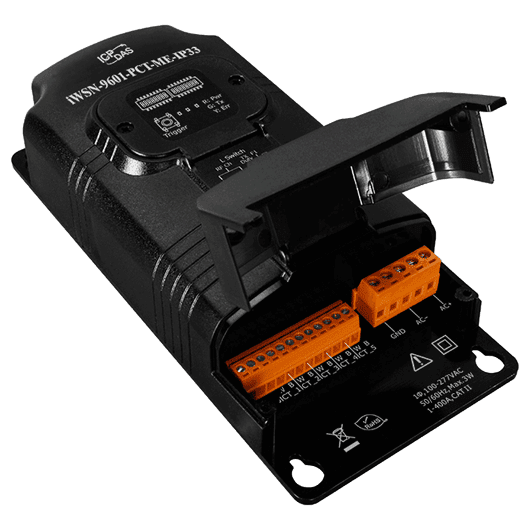

Typical uses include machine and process power efficiency improvement, power information management, carbon emission calculation, predictive maintenance and big data analysis of power consumption. For modules mounted outside a panel box, the IP33 housing and connector cover help prevent circuit shorts when a fire sprinkler system is activated.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz wireless |
| Power input: | 58 ~ 277 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 1P2W-1CT |
| Loops | 6 |
| Input Voltage | Single phase 58 - 277 VAC |
| Input Current | 1A ~ 400A, depended on the connected CTs which refer to the accessories. |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 2% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| CT | |
| Includes CTs | 0 (refer to order information for purchase) |
| Type | Split core CT |
| Max. Current | 400A depended on the selected CT type |
| Inside Diameter | 36mm depended on the selected CT type |
| Leading Cable | 8m |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Power | |
| Consumption | 3W |
| Input Type | Single phase 58 - 277 VAC |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
