iWSN-9601-240-ME-IP33 Wireless Single-Phase 6-Loop Power Meter, 200A CT
Single-phase 6-loop wireless power meter with six 200A split-core CTs, 433 MHz radio and power drawn from the measured voltage cable, for distributed energy monitoring.
- Single-phase, 6-loop AC measurement with six 200A split CTs (24 mm inside diameter, 8 m leads)
- Bi-directional kWh measurement with true RMS voltage and current calculations
- Powered from the measured voltage cable, with no extra power wiring needed
- 433 MHz wireless with up to 64 sub-networks and 100 m line-of-sight transmission distance
- Built-in RTC timestamps each measurement, with a 3-minute history data cache

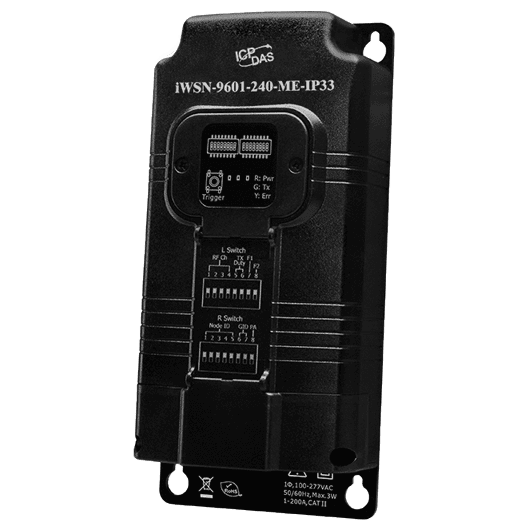

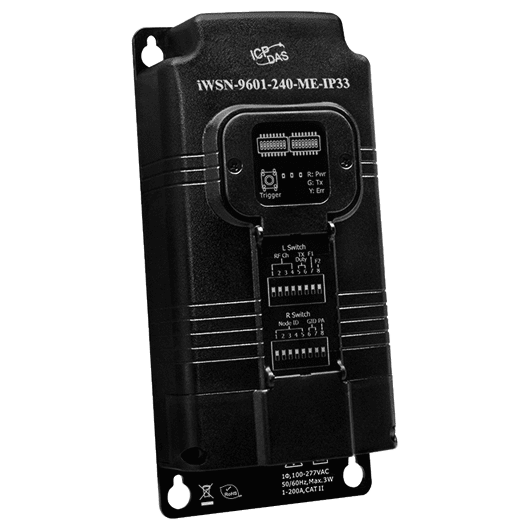

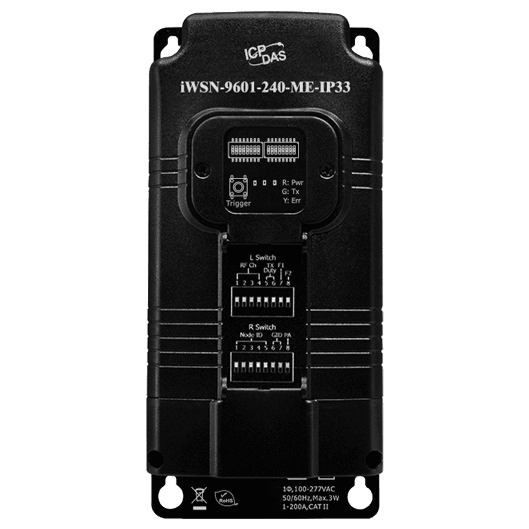

- Built-in 2A fuse for circuit protection; DIP-switch configuration
11 510,46 kr per stk.
| 1–9 stk. | 11 510,46 kr | |
|---|---|---|
| 10–30 stk. | 11 157,25 kr | −3 % |
| 31+ stk. | 10 928,70 kr | −5 % |
Produktinformasjon "iWSN-9601-240-ME-IP33 Wireless Single-Phase 6-Loop Power Meter, 200A CT"

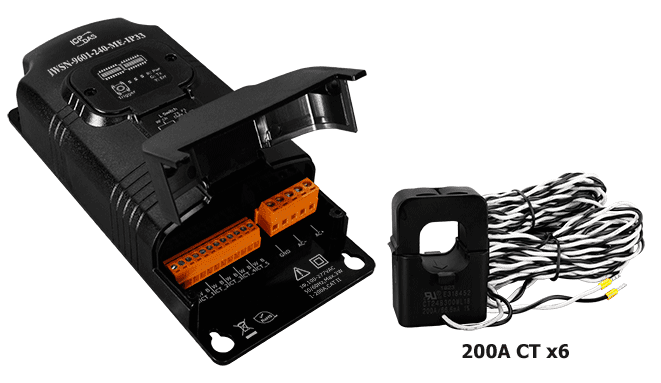

iWSN-9601-240-ME-IP33 CR is a wireless single-phase energy meter that measures six AC circuits from one voltage input. It suits sites where several machines or process loads share the same AC supply and each needs its own consumption data. Six 200A split CTs with a 24 mm inside diameter and 8 m leads are supplied with the unit.
Installation is simplified because the meter takes its power from the measured voltage cable, so no separate supply wiring is required. Readings include true RMS voltage and current, active power, active energy in both directions, power factor and frequency, and each sample is timestamped by the built-in RTC.

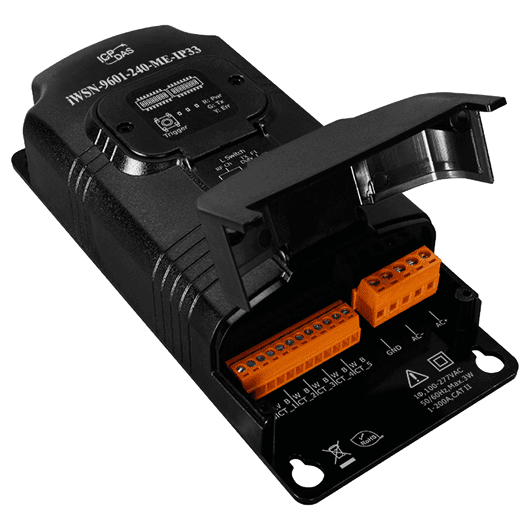

Data is sent over 433 MHz radio, with the Sub-GHz link and a 3-minute history cache designed to keep data flowing in crowded or shielded factory areas. The IP33 housing and connector cover suit wall-mounting outside a panel box.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | 433 MHz wireless |
| Power input: | 58 - 277 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 1P2W-1CT |
| Loops | 6 |
| Input Voltage | 58 - 277 VAC |
| Input Current | iWSN9601-160-MEIP33: CTØ16 mm (1 A ~ 100 A) iWSN9601-240-MEIP33: CTØ24 mm (1 A ~ 200 A) iWSN9601-360-MEIP33: CTØ36 mm (1 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 1% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Single phase 58 - 277 VAC |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
