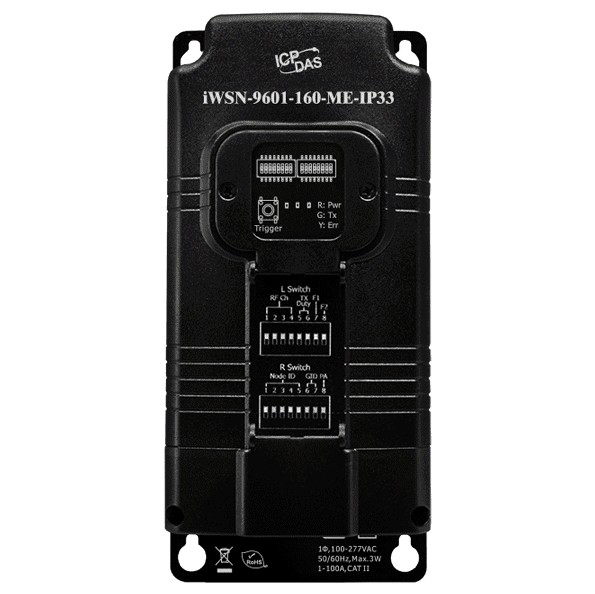

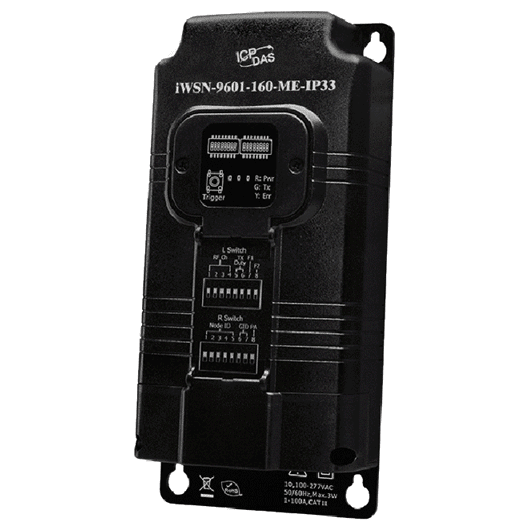

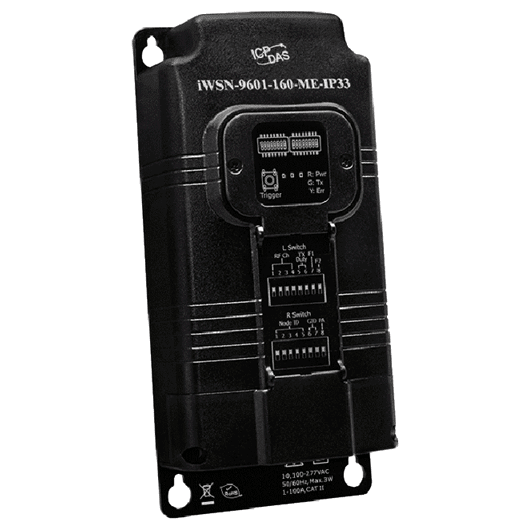

iWSN-9601-160-ME-IP33 Wireless Single-Phase 6-Loop Power Meter, 100 A CT
Wireless single-phase 6-loop AC power meter with six 100 A split-core CTs (16 mm aperture). Self-powered from the measured voltage and reports over 433 MHz radio.
- Monitors six loops on a single-phase 1P2W-1CT circuit with six 100 A split CTs (16 mm aperture)
- Self-powered from the measured voltage cable, with no extra power wiring required
- True RMS voltage and current, active power, bi-directional kWh, power factor and frequency
- 433 MHz wireless link supporting up to 64 sub-networks, with Node ID 1 ~ 31 and Channels 0 ~ 15
- Built-in RTC timestamps each reading and a 3-minute history cache supplements lost data
- Built-in 2 A fuse for circuit protection and IP33 housing for fire sprinkler environments
8 497,79 kr per stk.
| 1–9 stk. | 8 497,79 kr | |
|---|---|---|
| 10–30 stk. | 8 238,08 kr | −3 % |
| 31+ stk. | 8 071,86 kr | −5 % |
Produktinformasjon "iWSN-9601-160-ME-IP33 Wireless Single-Phase 6-Loop Power Meter, 100 A CT"

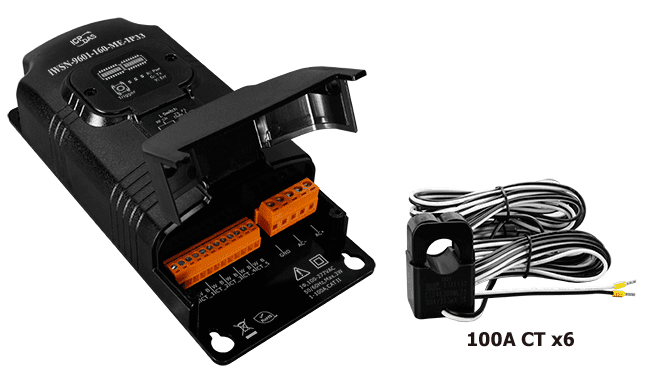

The iWSN-9601-160-ME-IP33 CR monitors six separate current loops on one single-phase AC supply, making it a practical choice for metering several machines or process branches fed from the same source. Each loop is measured through a 100 A split current transformer with a 16 mm aperture, supplied with an 8 m wire lead.
The meter draws its power from the measured voltage cable, so no separate supply wiring is needed, which keeps installation quick in distributed deployments. Readings include true RMS voltage and current, active power, bi-directional active energy in kWh, power factor and frequency. Data is sent over a 433 MHz radio link, and the built-in RTC timestamps each measurement.

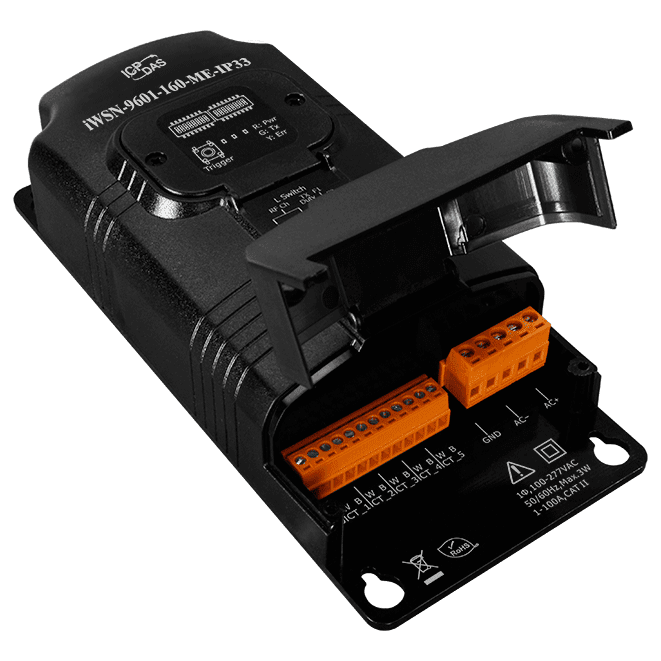

The IP33 housing is intended for locations where a fire sprinkler system may be activated, and a connector cover protects the wiring terminals. Mounted on a wall, the unit suits energy efficiency projects, power data administration and predictive maintenance programmes.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
| Product type: | Power meter |
|---|---|
| Interface: | Wireless 433 MHz |
| Power input: | 58 - 277 VAC |
| Operating temperature: | -30 ~ +50 °C |
| Mounting: | Wall-mount |
| Housing: | IP33 |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
| Wiring | 1P2W-1CT |
| Loops | 6 |
| Input Voltage | 58 - 277 VAC |
| Input Current | iWSN9601-160-MEIP33: CTØ16 mm (1 A ~ 100 A) iWSN9601-240-MEIP33: CTØ24 mm (1 A ~ 200 A) iWSN9601-360-MEIP33: CTØ36 mm (1 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 1% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| RF | |
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Antenna | |
| Type | Built-in Omni-directional antenna |
| Power | |
| Consumption | 3W |
| Input Type | Single phase 58 - 277 VAC |
| Mechanical | |
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
