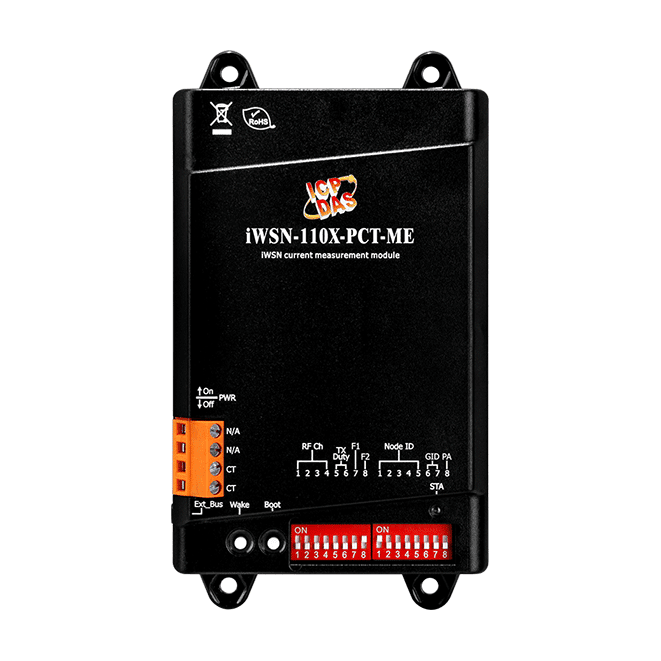

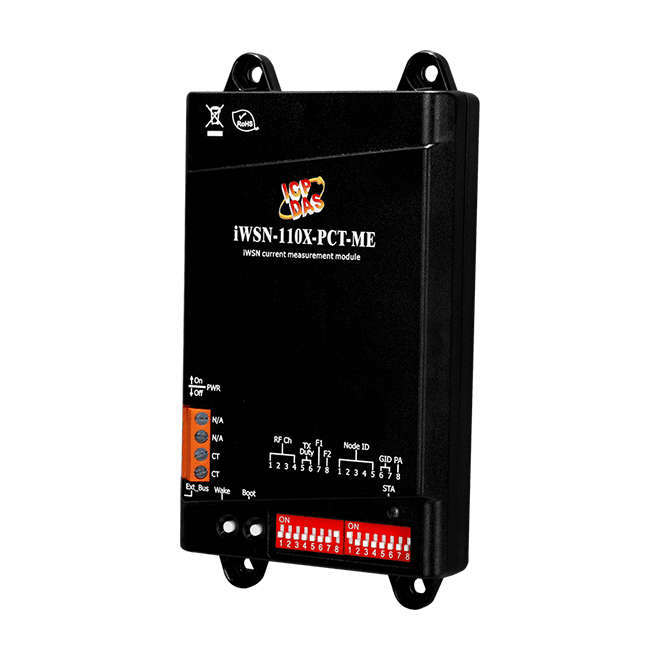

iWSN-110X-PCT-ME Current Sensing Module, 1-ch Split-core CT, 433 MHz RF
Self-powered iWSN current sensing module with one split-core CT input and an expansion interface, reporting over 433 MHz sub-1G RF.
- Self-powered by a built-in Li-ion battery that is charged from the CT-induced current
- Split-core CT for straightforward retrofit installation; optional 100A (Φ16mm), 200A (Φ24mm) or 400A (Φ36mm) CT
- 433 MHz sub-1G RF with 16 channels and 4 group IDs, up to 64 RF sub-networks
- CT input accuracy of ±3% or ±0.3A, rated for a maximum input of 500VAC, 50/60 Hz
- Expansion interface for added flexibility
- DIP and rotary switch configuration: Node ID 1 ~ 31, working duty 1, 10, 30 or 60 seconds
1 506,33 kr per stk.
| 1–9 stk. | 1 506,33 kr | |
|---|---|---|
| 10–30 stk. | 1 454,39 kr | −3 % |
| 31+ stk. | 1 433,61 kr | −5 % |
Produktinformasjon "iWSN-110X-PCT-ME Current Sensing Module, 1-ch Split-core CT, 433 MHz RF"
The iWSN-110X-PCT-ME is a self-powered wireless current sensing module for AC current measurement. It takes its operating power from the current induced in its split-core CT, so it needs no separate supply cabling, and it reports readings over 433 MHz radio for wireless deployment on existing conductors.
The module is suited to energy monitoring projects where a battery-free installation is preferred. Its 1-channel CT input accepts optional 100A, 200A or 400A split-core transformers, and a built-in expansion interface allows the module to be extended. Configuration is set locally using the DIP and rotary switches, with channel, group, node ID and working duty selectable on site.
- Self-powered from a built-in Li-ion battery charged by CT-induced current
- Split-core CT input, with optional 100A, 200A or 400A transformers
- 433 MHz RF with 16 channels and 4 group IDs
- Wall-mount or magnet installation
Applications
- Energy saving and power metering
- Big data analysis of energy consumption
- Predictive maintenance
| Product type: | Current sensing module |
|---|---|
| Interface: | 433 MHz RF |
| Analog inputs: | 1 (CT) |
| Power input: | Self-powered (CT-harvested, Li-ion battery) |
| Operating temperature: | 0 ~ +45 °C |
| Mounting: | Wall-mount or magnet |
Spesifikasjoner
| Bus Interface | |
|---|---|
| Channels | 1 |
| Type | 4 pole 3.5mm audio cable with 25 cm wire lead |
| EMS Protection | |
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x STA |
| CT | |
| Split-core CT Channels | 1 |
| Split-core CT Type | Φ16mm (100A), Φ24mm (200A), or Φ36mm (400A); 8 m wire |
| Input Voltage | Maximum 500VAC, 50/60 Hz |
| Accuracy | ±3% or ±0.3A |
| RF | |
| Channels | 0 ~ 15 configured by DIP switch |
| Group ID | 0 ~ 3 configured by DIP switch |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 configured by DIP switch |
| Working Duty | 1 sec, 10 sec, 30 sec and 60 sec configured by DIP switch |
| Antenna | |
| Type | 0 dBi Omni directional PCB antenna |
| Power | |
| Consumption | 1-sec Tx Duty: 11 A 10-sec Tx Duty: 3 A 30-sec Tx Duty: 3 A 60-sec Tx Duty: 3A |
| Battery | Li-ion battery (compliant with UL1642) charged by CT induced current |
| Mechanical | |
| Dimensions (mm) | 85 x 152 x 25 (W x L x H) |

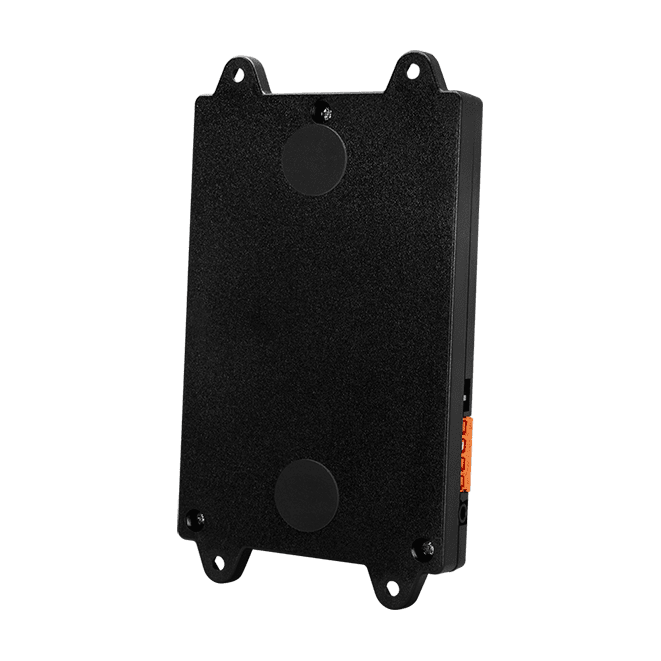

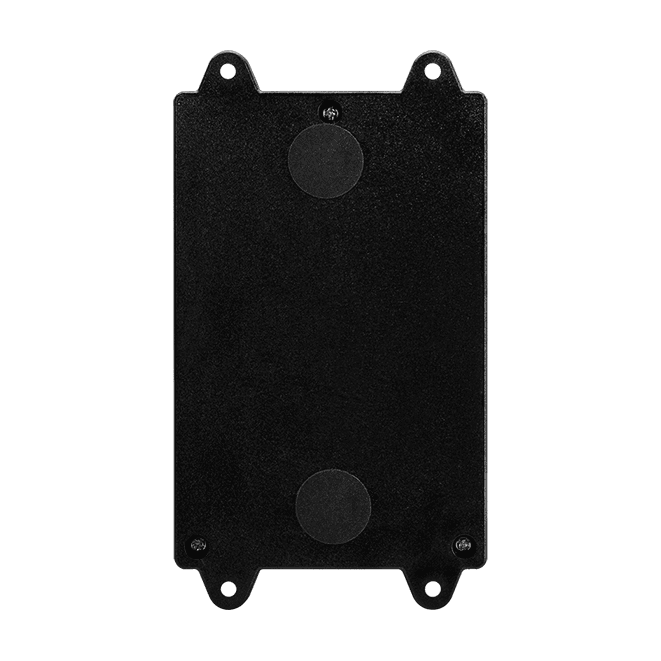

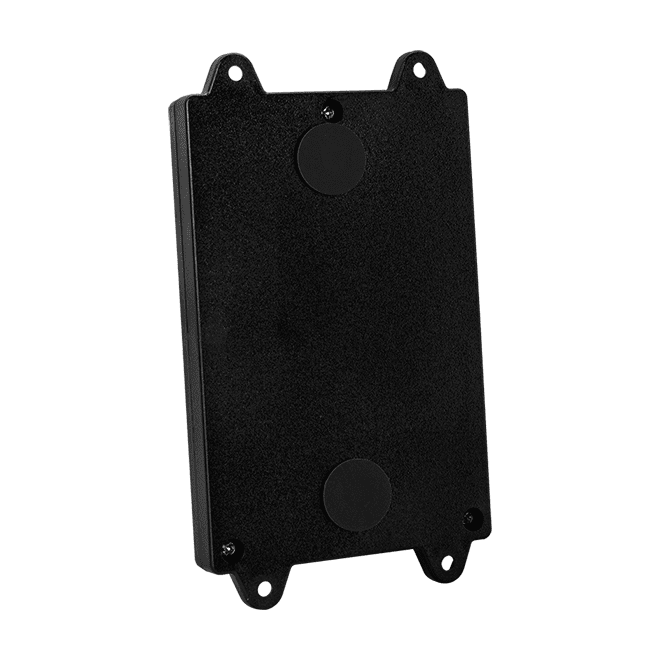

| Installation | Wall-mount or magnet adsorption |
| Environment | |
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +50 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
