TP-5120 12.1-inch Resistive Touch Panel Monitor, 800 x 600 Panel Mount
12.1-inch 800 x 600 panel mount touch monitor with a 5-wire resistive touch panel, IP65 front panel and RS-232 or USB connectivity for industrial operator displays.
- 12.1-inch TFT LCD with 800 x 600 resolution, 400 cd/m2 brightness and LED backlight rated for 50,000 hours
- 5-wire analogue resistive touch panel with 80% light transmission
- IP65 front panel with a rugged aluminium bezel
- Full-function OSD control for brightness, contrast, clock, phase, position and sharpness
- One RS-232 (combo) port and one USB port for touch and data connection
- Power input of +12 ~ 48 VDC with 13.0 W consumption
8 757,51 kr per stk.
| 1–9 stk. | 8 757,51 kr | |
|---|---|---|
| 10–30 stk. | 8 497,79 kr | −3 % |
| 31+ stk. | 8 321,19 kr | −5 % |
Produktinformasjon "TP-5120 12.1-inch Resistive Touch Panel Monitor, 800 x 600 Panel Mount"

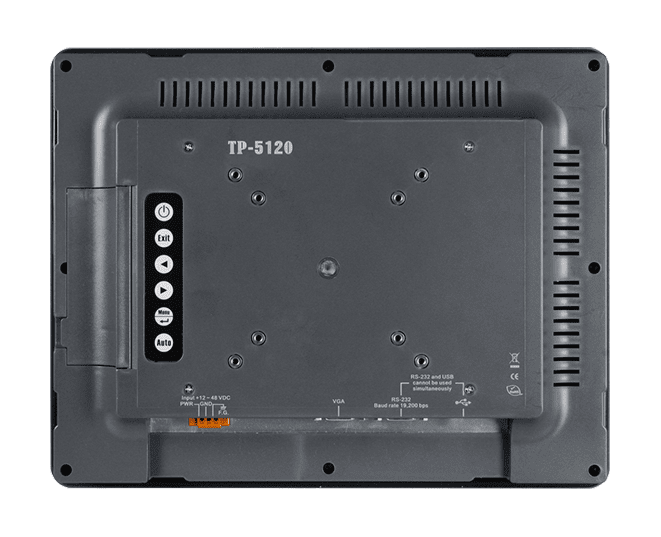

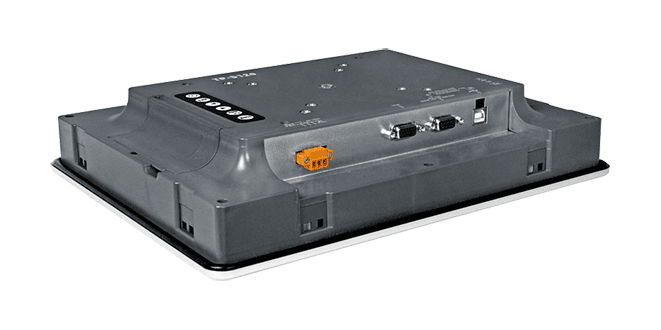

The TP-5120 CR is a panel mount touch monitor for operator interfaces on industrial control systems. It combines a 12.1-inch LCD with a 5-wire analogue resistive touch panel, so it can be operated with a finger, stylus or gloved hand where a capacitive screen would not respond.
This ordering code includes the RS-232 or USB touch interface and a power supply. The front panel is rated IP65 and the operating range extends from -20 to +70 °C, which suits control cabinets and machine panels in harsher settings. The on-screen display lets you adjust brightness, contrast, clock, phase, horizontal and vertical position, and sharpness directly on the unit.
Driver support covers Windows, Windows IoT, Windows Embedded Standard, WinCE and Linux. The manufacturer states that the monitor is guaranteed to work with ICP DAS PAC controllers, including the WP-5000 series, LinPAC series and XP-9000 series.
Applications
- Operator panels and HMI displays for PAC-based control systems
- Machine and control cabinet front panels
- Industrial touch interfaces for Windows, Linux or WinCE applications
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic |
Spesifikasjoner
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 12.1" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 13.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 323 x 254 x 65 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1980 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
