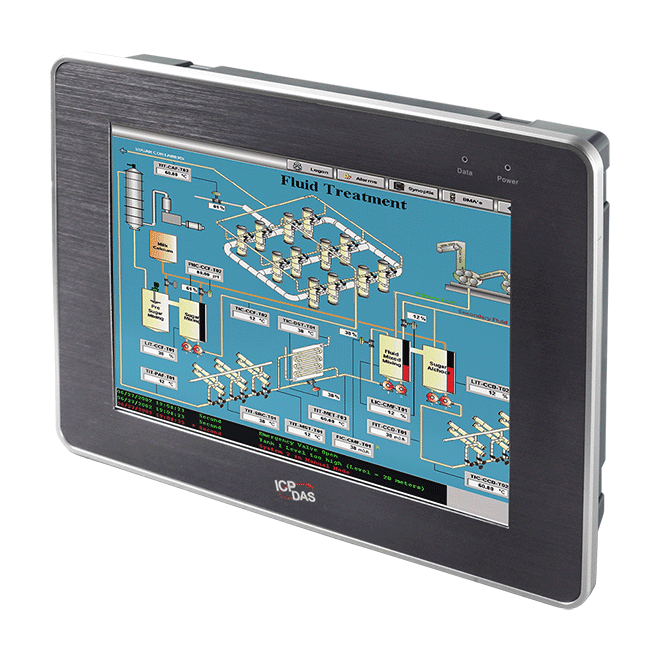

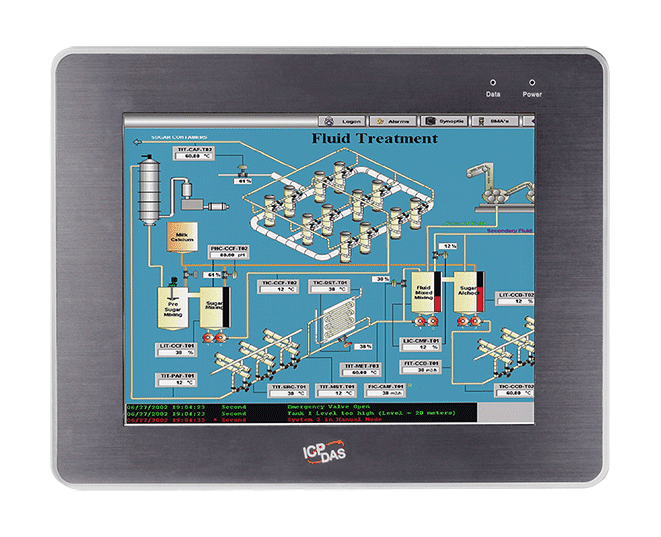

TP-4100/NP 10.4" Panel Mount Touch Monitor, 800 x 600, No Power Supply
10.4" 800 x 600 resistive touch panel monitor with RS-232 or USB, supplied without a power supply. Suited to panel-mounted HMI front ends on ICP DAS PAC systems.
- 10.4" LCD with 800 x 600 resolution and 400 cd/m2 brightness
- 5-wire analog resistive touch panel with 80% light transmission
- One RS-232 (combo) port and one USB port for connection
- Full-function OSD control for picture adjustment
- Driver support for Windows, Windows IoT, WES, WinCE and Linux
- IP65-rated front panel for panel mounting
7 718,66 kr per stk.
| 1–9 stk. | 7 718,66 kr | |
|---|---|---|
| 10–30 stk. | 7 490,11 kr | −3 % |
| 31+ stk. | 7 334,28 kr | −5 % |
Produktinformasjon "TP-4100/NP 10.4" Panel Mount Touch Monitor, 800 x 600, No Power Supply"
The TP-4100/NP CR is a panel-mount touch monitor built around a 10.4" LCD with an 800 x 600 resolution and a 5-wire analog resistive touch panel. It gives an engineer a simple local operator interface that connects over RS-232 or USB, with OSD controls for brightness, contrast, clock, phase, position and sharpness.

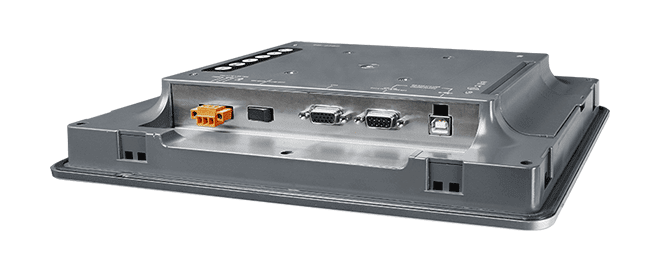

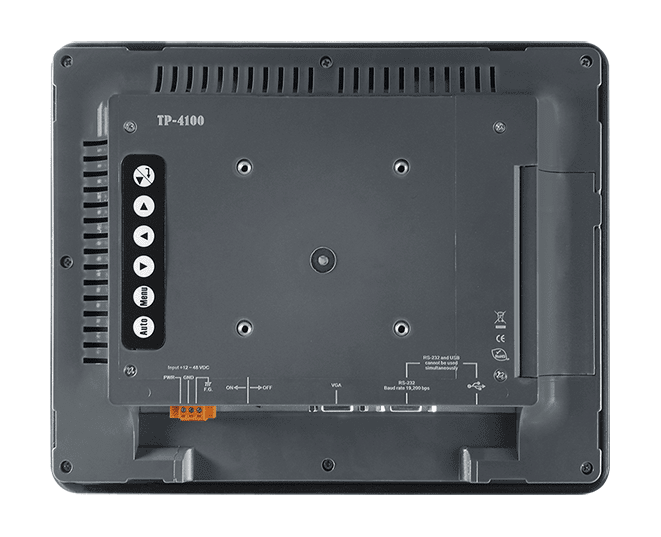

This variant is supplied without a power supply. It accepts a +12 ~ 48 VDC input, so the designer can use an existing DC supply within that range. The front panel is rated IP65, and the unit mounts either into a panel cut-out or on a VESA 75 x 75 mounting pattern.
Driver support covers Windows, Windows IoT, Windows Embedded Standard, Windows Embedded Compact (WinCE) and Linux. The source states that the monitor is compatible with ICP DAS PAC controllers, including the WP-8000 series, LinPAC series and XP-9000 series.
Applications
- Panel-mounted operator interface (HMI) for control cabinets
- Front-end display for ICP DAS WP-8000, LinPAC and XP-9000 controllers
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA 75 x 75 |
| Housing: | IP65 front panel |
Spesifikasjoner
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 10.4" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 8.5 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 291 x 229 x 54 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 x 75) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1715 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
