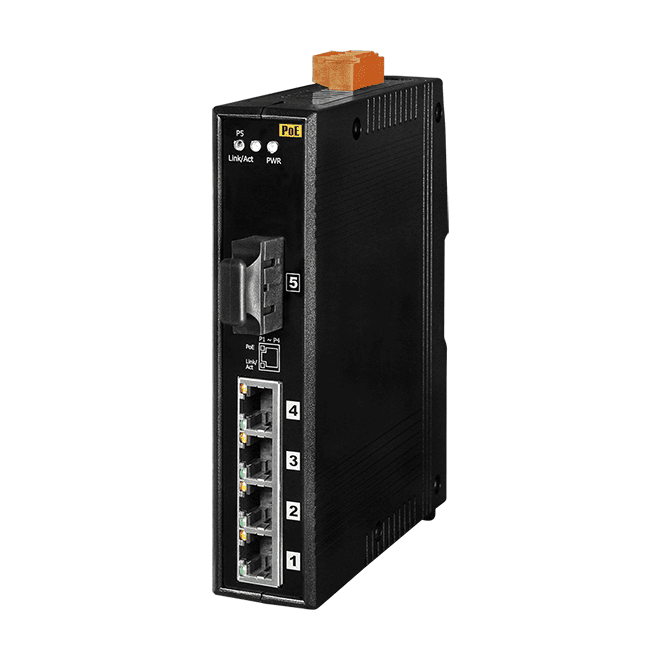

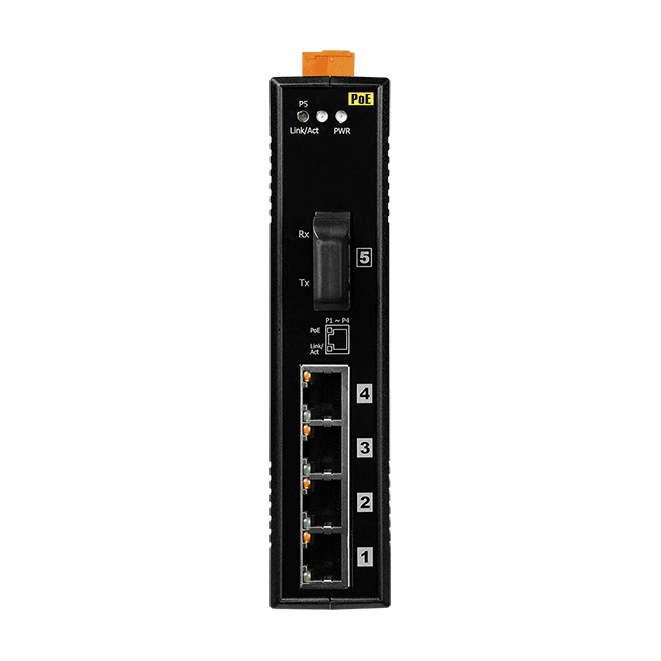

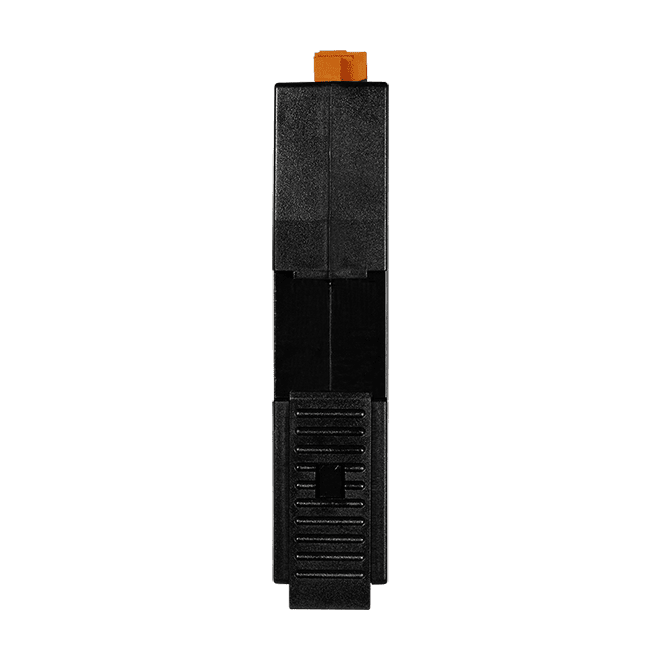

NS-205PFCS PoE Ethernet Switch, 4-Port 10/100 + 1 Single-Mode SC Fibre
NS-205PFCS CR unmanaged Ethernet switch with four PoE (PSE) ports and one 100Base-FX single-mode SC fibre port for links up to 30 km.
- Four 10/100Base-TX RJ-45 ports plus one 100Base-FX single-mode SC fibre port
- All four copper ports act as PSE, providing up to 15.4 W per channel, 100% IEEE 802.3af compliant
- Automatic detection of powered devices and automatic power management
- Single-mode fibre link specified for 30 km full duplex, 9/125 µm fibre recommended
- Store and forward switching, 1024-entry MAC table, IEEE 802.3x flow control
- 1500 Vrms isolation and ±4 kV contact ESD protection (IEC 61000-4-2)
2 441,30 kr per stk.
| 1–9 stk. | 2 441,30 kr | |
|---|---|---|
| 10–30 stk. | 2 368,58 kr | −3 % |
| 31+ stk. | 2 316,64 kr | −5 % |
Produktinformasjon "NS-205PFCS PoE Ethernet Switch, 4-Port 10/100 + 1 Single-Mode SC Fibre"
The NS-205PFCS CR is an unmanaged DIN-rail switch that combines four copper Ethernet ports, each able to supply Power over Ethernet as Power Sourcing Equipment, with a single 100Base-FX fibre uplink. It lets you run power and data to remote powered devices from one central supply.
The fibre port uses an SC connector and single-mode fibre, which is suited to long-distance links. Fibre transmission is not affected by electrical noise, so the link can run alongside noisy equipment. This variant is specified for 30 km full-duplex operation, with 9/125 µm fibre recommended.
- Four 10/100Base-TX RJ-45 ports with automatic powered device detection and power management
- Up to 15.4 W per PoE channel, 100% IEEE 802.3af compliant
- Store and forward switching with a 1024-entry MAC table
- Power input of +46 VDC to +55 VDC, with reverse polarity protection
Applications
- Powering remote PoE devices over Ethernet from a central DC supply
- Long-distance Ethernet links using single-mode fibre
- Noise-sensitive industrial network segments requiring fibre isolation
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45, SC fibre |
| Ports: | 4 x RJ-45, 1 x SC |
| PoE: | PSE, up to 15.4 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +46 VDC ~ +55 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | Power, Link/Act, Power Device is detected |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1,2), V- (Pin 3,6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +48 VDC depending on power input |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 30 km, (9/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -15 dBm Min. -8 dBm Max. |
| RX Sensitivity | -34 dBm |
| RX Overload | -5 dBm |
| Budget | 19 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +55 VDC for PoE output |
| Consumption | 0.08 A @ 48 VDC without PD loading; 1.5 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
