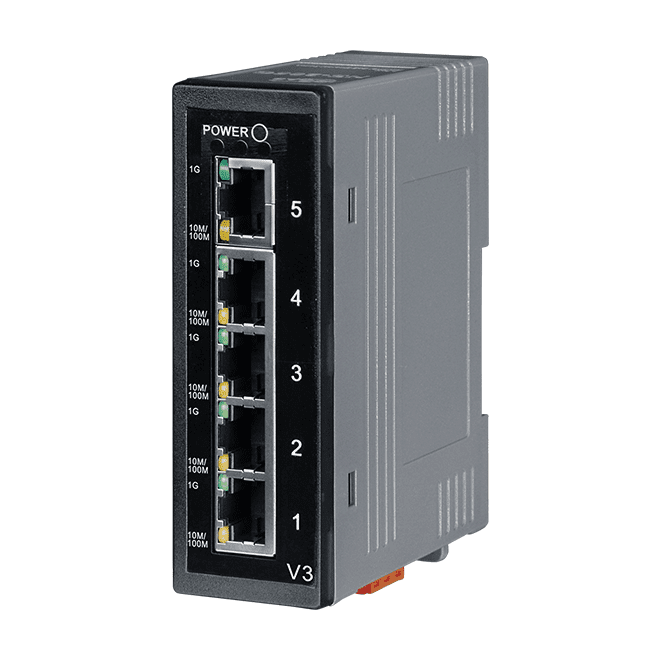

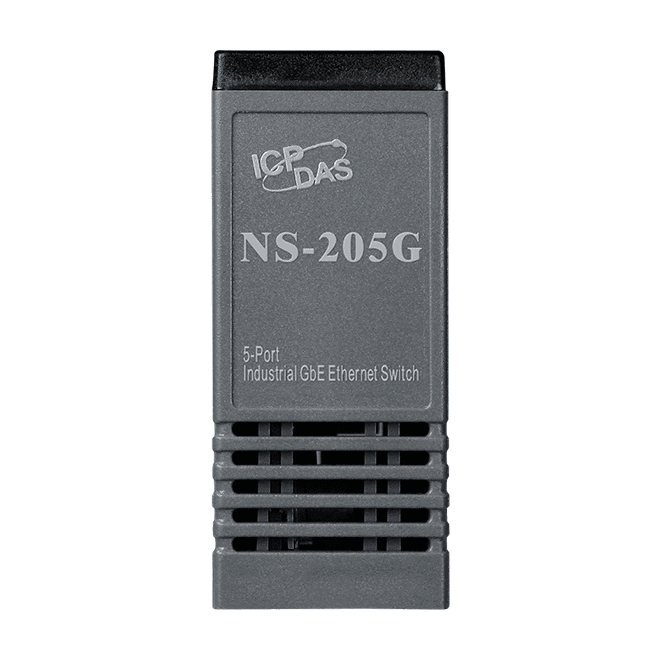

NS-205G 5-Port Unmanaged Industrial Gigabit Ethernet Switch, 10/100/1000 Base-T
Unmanaged 5-port industrial gigabit Ethernet switch with auto MDI/MDI-X and 10/100/1000 Mbps auto negotiation, rated -40 °C ~ +75 °C for DIN-rail installation.
- Five RJ-45 ports at 10/100/1000 Base-T with automatic speed negotiation
- Automatic MDI/MDI-X crossover for plug-and-play connections
- IEEE 802.3x full duplex and back pressure half duplex flow control
- Store-and-forward switching with 4096-entry MAC table and 1.5 Mbit frame buffer
- Jumbo frame support up to 9 K at 1000 Mbps

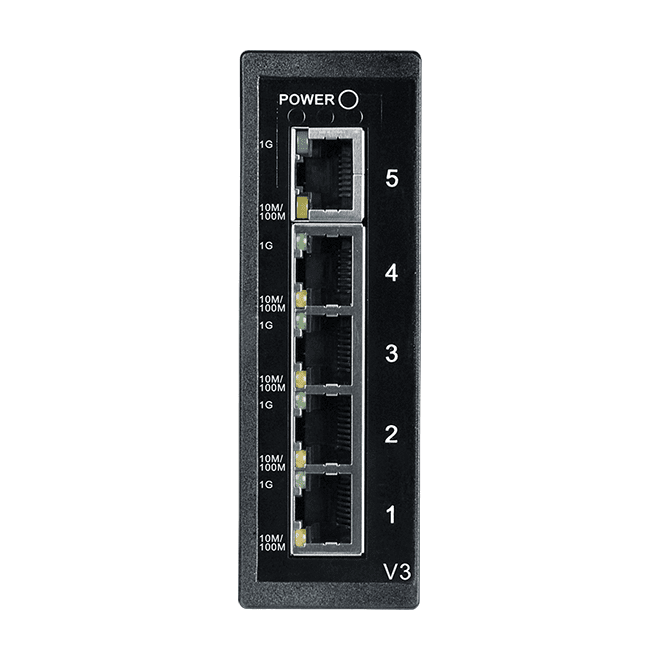

- Power, 1000M and Link/Act LED indicators on the front panel
1 610,22 kr per stk.
| 1–9 stk. | 1 610,22 kr | |
|---|---|---|
| 10–30 stk. | 1 558,28 kr | −3 % |
| 31+ stk. | 1 527,11 kr | −5 % |
Produktinformasjon "NS-205G 5-Port Unmanaged Industrial Gigabit Ethernet Switch, 10/100/1000 Base-T"
NS-205G is an unmanaged 5-port switch with RJ-45 ports that run at 10, 100 or 1000 Mbps. Each port negotiates its speed and duplex automatically, and auto MDI/MDI-X lets you connect ports to end devices or other switches without choosing a crossover cable.
The switch uses store-and-forward processing with a 4096-entry MAC table and 1.5 Mbit of frame buffer memory. Jumbo frames up to 9 K are supported at 1000 Mbps, and both IEEE 802.3x and back pressure flow control are available. A per-port link and data rate LED helps with fault finding on site.

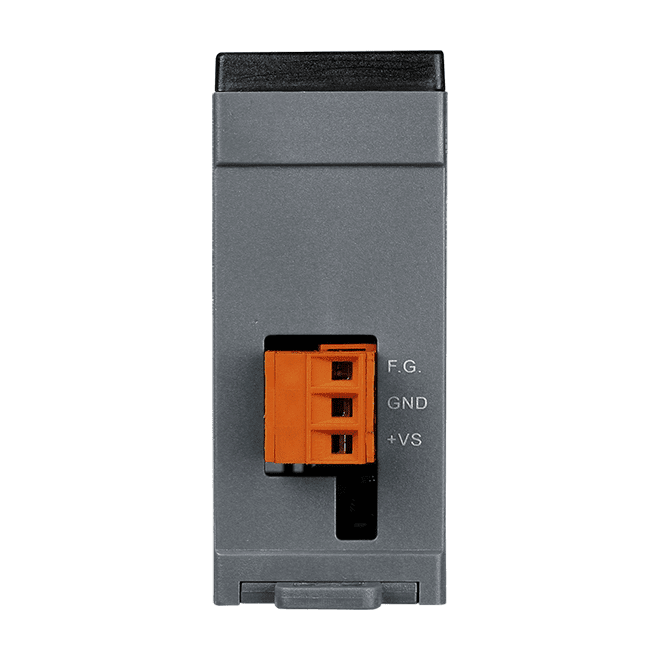

Power comes from a +10 ~ +30 VDC input with reverse polarity protection. The plastic housing mounts on a DIN rail and is rated for an operating range of -40 °C ~ +75 °C. Certifications listed for this model are CE, UKCA, FCC, RoHS and WEEE.
Applications
- High-resolution digital image transmission
- Video and audio file streaming and downloading
- Server farm connectivity
- Connecting workstations in industrial Ethernet networks
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Ports: | 5 |
| Isolation: | 1500 Vrms 1 minute |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | Power, 1000M, Link/Act |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100/1000 Base-T |
| Standards | IEEE 802.3, 802.3u, 802.3ab and 802.3x |
| Processing Type | Store & forward |
| MAC Table | 4096 |
| Frame Buffer Memory | 1.5 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Jumbo Frames | 9 K for Speed 1000 M |
| Isolation | 1500 Vrms 1 minute |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Non-isolated) |
| Consumption | 0.2 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
