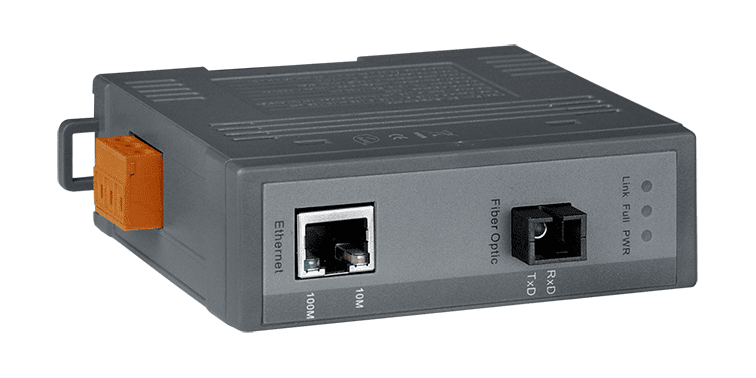

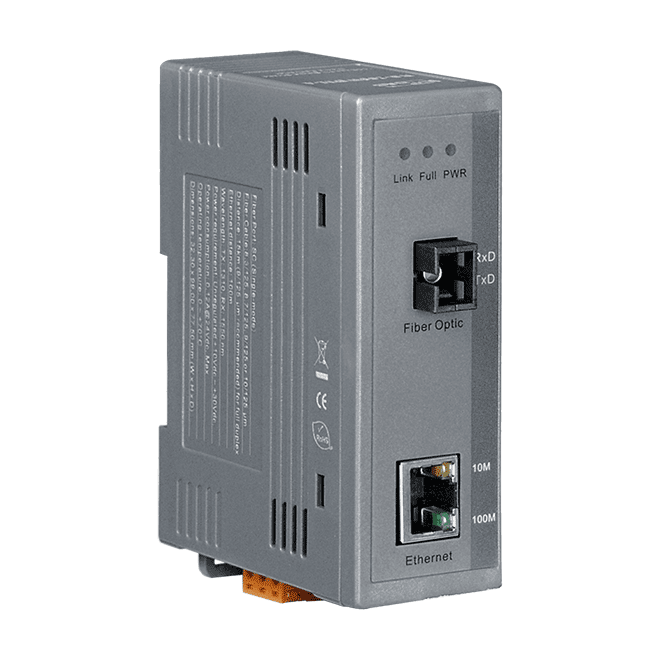

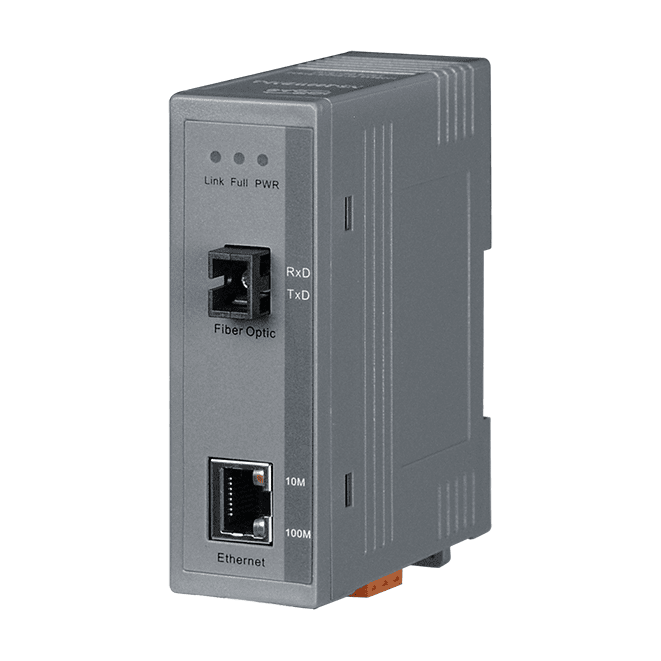

NS-200WDM-B Single-Strand Media Converter, 10/100BaseT(X) to 100BaseFX
Single-strand WDM media converter from 10/100Base-TX RJ-45 to 100Base-FX SC over single-mode fibre (TX 1550 nm, RX 1310 nm). Sold as one half of a matched pair with NS-200WDM-A.
- Single-strand WDM operation: two channels over one single-mode fibre, TX 1550 nm and RX 1310 nm
- Up to 15 km on single-mode fibre, with 9/125 μm recommended for full duplex
- Store-and-forward switching with 1024-entry MAC table and 1.4 Gbps memory bandwidth
- Auto-negotiation for 10/100 Mbps with automatic MDI/MDI-X crossover
- Full duplex operation with IEEE 802.3x flow control
- Power input +12 ~ +48 VDC with reverse polarity protection
2 316,64 kr per stk.
| 1–9 stk. | 2 316,64 kr | |
|---|---|---|
| 10–30 stk. | 2 254,30 kr | −3 % |
| 31+ stk. | 2 202,36 kr | −5 % |
Produktinformasjon "NS-200WDM-B Single-Strand Media Converter, 10/100BaseT(X) to 100BaseFX"
The NS-200WDM-B is a single-strand fibre media converter that carries Ethernet over one single-mode fibre instead of two. Wavelength division multiplexing sends two independent data channels along the same strand, with this unit transmitting at 1550 nm and receiving at 1310 nm. It is well suited to extending Ethernet links over longer distances where fibre installation is costly.
The NS-200WDM-B works only as a pair with the NS-200WDM-A, which must be installed at the opposite end of the link. The unit uses store-and-forward switching, automatic MDI/MDI-X crossover and IEEE 802.3x full duplex flow control, so it can be connected without special cabling. A soft start function, overload protection and high-low voltage protection are included, and a reverse polarity protected +12 ~ +48 VDC supply simplifies installation on DIN-rail equipment racks.
Ordering code NS-200WDM-B CR is the TX 1550 nm / RX 1310 nm side of the series. Specify the matching NS-200WDM-A when ordering to ensure both ends of the link are compatible.
Applications
- Extending Ethernet connections over long single-mode fibre links
- Reducing fibre infrastructure cost by running two channels over one strand
- Connecting remote Ethernet devices to a network across a fibre backbone
| Product type: | Media Converter |
|---|---|
| Interface: | RJ-45, SC |
| Ports: | 1 x RJ-45, 1 x SC |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | PWR, 10M, 100M, Link/Act, Full duplex/Half duplex(Fiber Port) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-TX |
| Standards | IEEE802.3, 802.3u, 802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 1.4 Gbps |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 15 km, (9/125 μm mrecommended) for full duplex |
| Wavelength | TX: 1550, RX: 1310 nm |
| TX Output | -14 dBm Min. -8 dBm Max. |
| RX Sensitivity | -31 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Non-isolation) |
| Consumption | 0.12 A @ 24 VDC, +/- 5% arrowed with 100M Full duplex |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 85 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | 0 °C ~ +70 °C |
| Storage Temperature | -20 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
