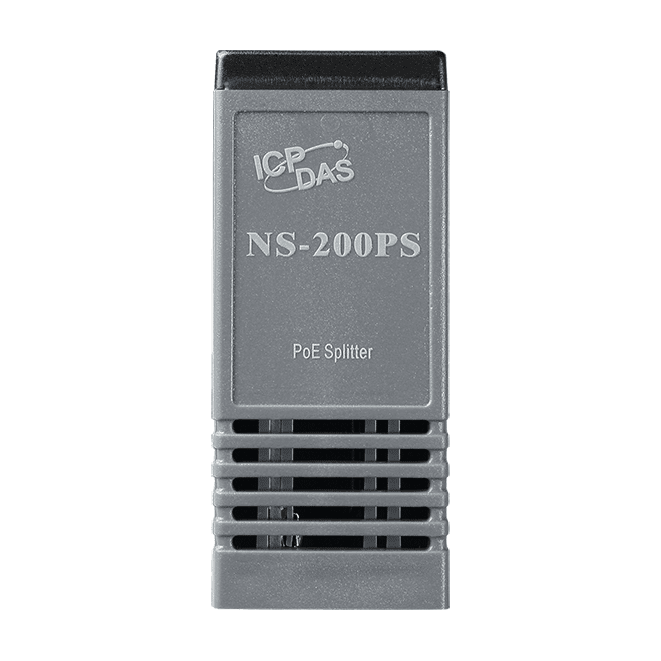

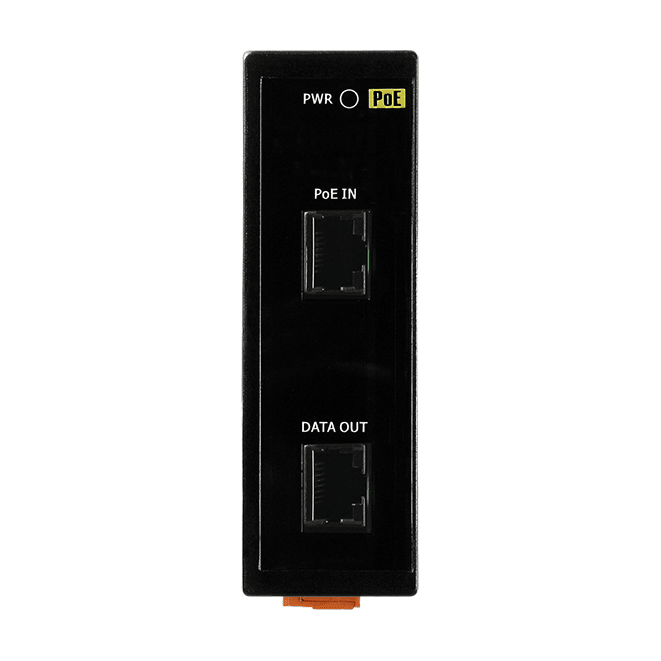

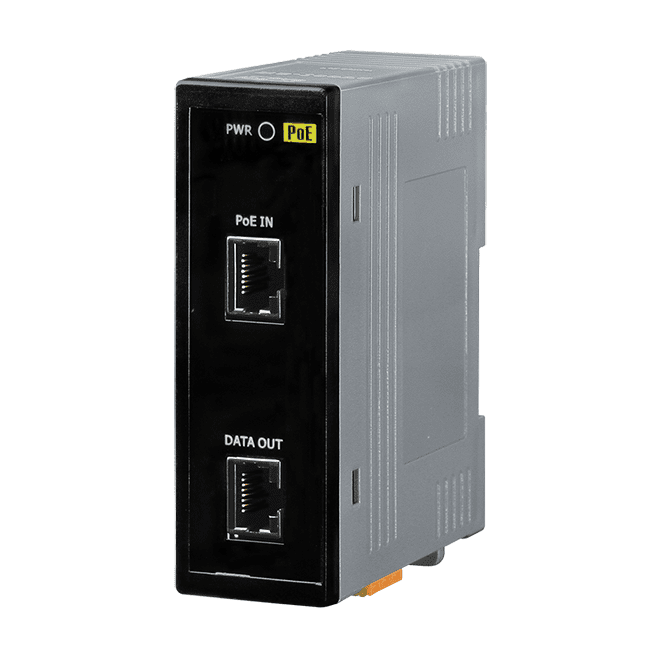

NS-200PS Industrial PoE Splitter, 24 VDC 10 W Output
The NS-200PS CR splits PoE data and power from a PSE, delivering 10 W at 24 VDC to industrial devices while passing Ethernet through. Suited to DIN-rail installations.
- Splits PoE data and power from a PSE, with Ethernet passed through at 10/100/1000 Base-TX
- Compliant with IEEE 802.3af, with automatic detection and classification of incoming power
- Delivers 10 W at 24 VDC output, rated 0.42 A
- Isolated power output with short circuit protection
- Accepts PoE voltage of +46 VDC to +54 VDC
- Slim plastic housing for DIN-rail mounting
934,97 kr per stk.
| 1–9 stk. | 934,97 kr | |
|---|---|---|
| 10–30 stk. | 914,19 kr | −2 % |
| 31+ stk. | 893,41 kr | −4 % |
Produktinformasjon "NS-200PS Industrial PoE Splitter, 24 VDC 10 W Output"
The NS-200PS CR is a Powered Device (PD) that takes a Power over Ethernet feed from a PSE and separates it into an Ethernet data connection and a 24 VDC power output. It lets a single cable to the cabinet supply both the network link and the power for a nearby device.
Power is detected and classified automatically, and it is accepted from either the signal pairs or the unused pairs. The output is isolated and protected against short circuits, with a rated 10 W at 24 VDC (0.42 A). The slim plastic housing measures 33 x 107 x 78 mm (W x L x H) and mounts on a DIN rail.
Rated for operating temperatures from -40 °C to +75 °C, the unit is certified to CE, UKCA, FCC, RoHS and WEEE. Specified standards are IEEE 802.3, 802.3u, 802.3x and 802.3af.
Applications
- Powering 24 VDC industrial devices over the Ethernet cable
- Providing an Ethernet connection and power to remote devices from a single PoE source
| Product type: | PoE Splitter |
|---|---|
| Interface: | Ethernet |
| PoE: | IEEE 802.3af |
| Isolation: | Power output |
| Power input: | +46 ~ +54 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Ethernet | |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| PoE Technology | |
| Type | Powered Device (PD) |
| PoE Operation | Automatic detection and classification (power is accepted on either the signal or unused pairs) |
| PoE Voltage | +46 VDC ~ +54 VDC |
| Output | |
| DC Voltage | 24 VDC |
| Rated Power | 10 W |
| Rated Current | 0.42 A |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
