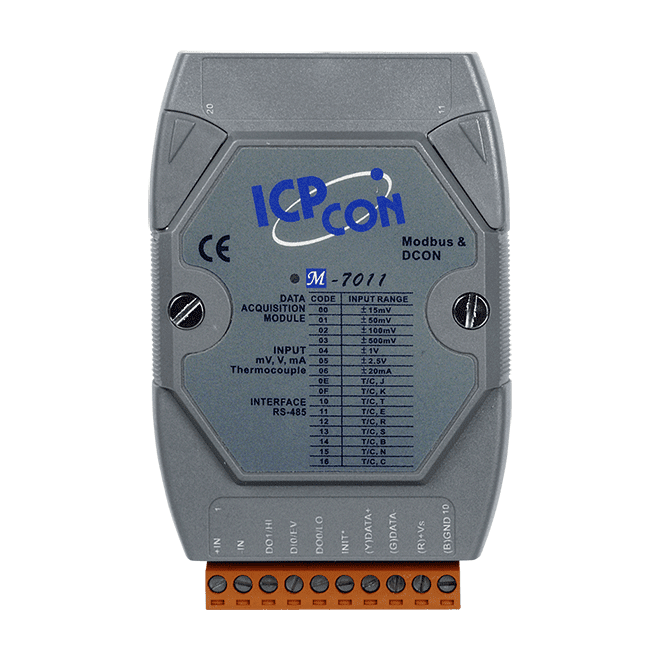

M-7011-G Thermocouple Input Module, 1-ch Analog Input, Modbus RTU and DCON
Single-channel thermocouple, voltage and current input module with 16-bit resolution, one event-counter input, two open-collector outputs and RS-485 Modbus RTU or DCON. Gray cover.
- 1 analogue input for voltage, current and thermocouple signals at 16-bit resolution
- Thermocouple types J, K, T, E, R, S, B, N and C, with open wire detection for thermocouple input
- 1 digital input operating as a 50 Hz event counter
- 2 open-collector digital outputs with high/low alarm function
- 3000 VDC intra-module isolation
- RS-485 port supporting Modbus RTU and DCON, 1200 ~ 115200 bps
2 212,75 kr per stk.
| 1–9 stk. | 2 212,75 kr | |
|---|---|---|
| 10–30 stk. | 2 150,42 kr | −3 % |
| 31+ stk. | 2 098,48 kr | −5 % |
Produktinformasjon "M-7011-G Thermocouple Input Module, 1-ch Analog Input, Modbus RTU and DCON"
The M-7011-G (ordering code M-7011-G CR) is a single-channel analogue input module from the M-7000 RS-485 remote I/O range. It accepts voltage, current and thermocouple signals, with thermocouple types J, K, T, E, R, S, B, N and C, and converts them at 16-bit resolution.
Alongside the analogue channel, the module provides one digital input that can operate as a 50 Hz event counter and two open-collector digital outputs that can be used as high/low alarms. Open wire detection is included for thermocouple inputs, and 3000 VDC intra-module isolation is fitted.
Communication is over one RS-485 port using Modbus RTU or DCON, configurable via software, at 1200 ~ 115200 bps. A built-in dual watchdog and a +10 ~ +30 VDC power input complete the specification.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Digital inputs: | 1 |
| Digital outputs: | 2 |
| Analog inputs: | 1 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 Differential |
| Type | Voltage Current Thermocouple |
| Sensor Type | Thermocouple: J, K, T, E, R, S, B, N, C |
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current: ±20 mA (requires optional external 125 Ω resistor) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance | > 400 kΩ |
| Common Voltage Protection | ±5 VDC |
| Overvoltage Protection | ±5 VDC |
| Open Wire Detection | For Thermocouple Only |
| Digital Input/Counter | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Input Impedance | 3 kΩ |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +30 VDC |
| Load Current | 30 mA/Channel |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Counter/Frequency/Encoder Input | |
| Individual Channel Configuration | - |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.9 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
