M-7005-G 8-ch Thermistor Input and 6-ch DO Module, Modbus RTU/DCON
8-channel thermistor input module with six open-collector sink digital outputs for alarms, served over RS-485 with Modbus RTU or DCON. Gray cover, DIN-rail mounted.
- Eight thermistor inputs with individual channel configuration
- User-defined thermistor types using Steinhart coefficients
- Open wire detection on each input channel
- Six open-collector sink (NPN) digital outputs for alarm output, up to 650 mA per channel
- 3000 VDC intra-module isolation and 120 VDC thermistor input overvoltage protection
- Single RS-485 port supporting Modbus RTU and DCON, selectable in software
2 815,28 kr per stk.
| 1–9 stk. | 2 815,28 kr | |
|---|---|---|
| 10–30 stk. | 2 732,18 kr | −3 % |
| 31+ stk. | 2 669,84 kr | −5 % |
Produktinformasjon "M-7005-G 8-ch Thermistor Input and 6-ch DO Module, Modbus RTU/DCON"

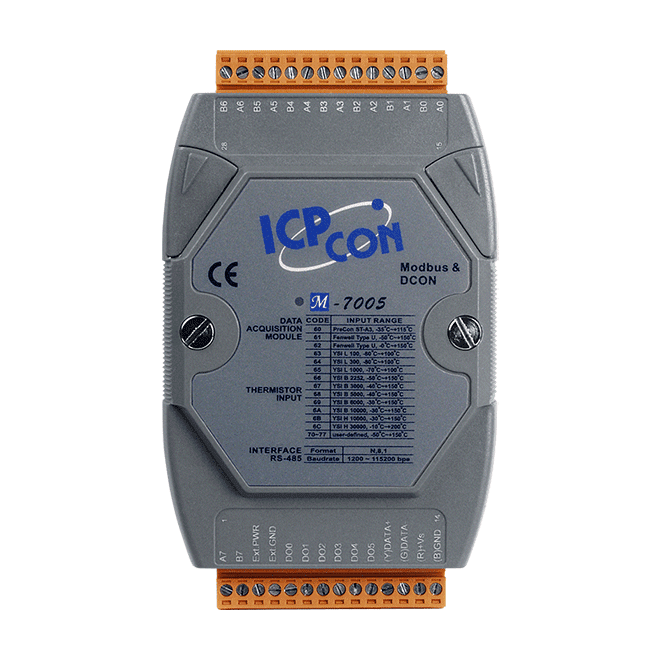

M-7005-G CR is a DIN-rail remote I/O module for temperature measurement with thermistors. Each of its eight input channels can be configured separately, so different thermistor types can run side by side on one module. Built-in support covers a range of standard thermistor curves, and user-defined types can be added by entering Steinhart coefficients where a standard curve does not match the sensor.
Six open-collector sink (NPN) digital outputs are available for alarm signalling, with programmable power-on and safe values. Open wire detection on the inputs helps identify broken sensor wiring. Intra-module isolation is rated at 3000 VDC, and the thermistor inputs are protected against overvoltage up to 120 VDC, which suits installations with demanding electrical conditions.
Communication is via a single RS-485 port that can be set to Modbus RTU or DCON in software, at baud rates from 1200 to 115200 bps. The module includes a programmable dual watchdog for module and communication supervision. This gray-cover variant shares its hardware specifications with the I-7005.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Digital outputs: | 6 |
| Analog inputs: | 8 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Gray |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 8 |
| Type | Thermistor |
| Sensor Type | Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined |
| Resistance Measurement | 200 kΩ max. |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 8 Hz (Total) |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Digital Output | |
| Channels | 6 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 650 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.3 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
