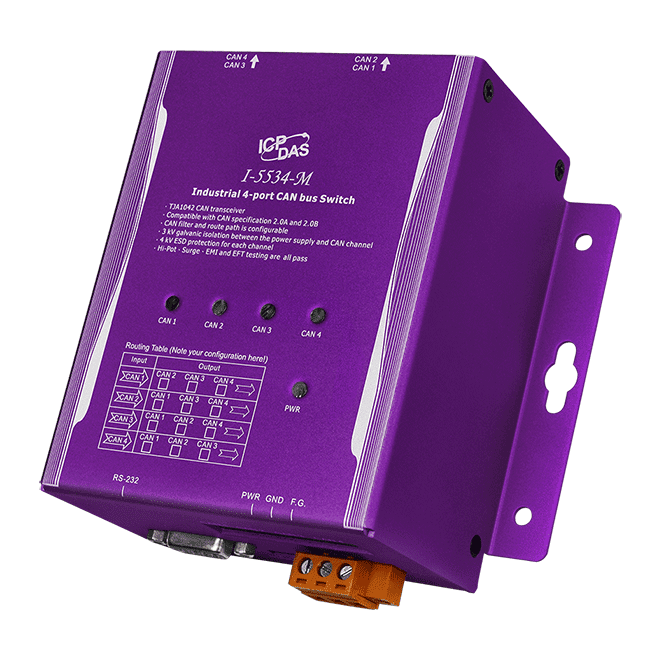

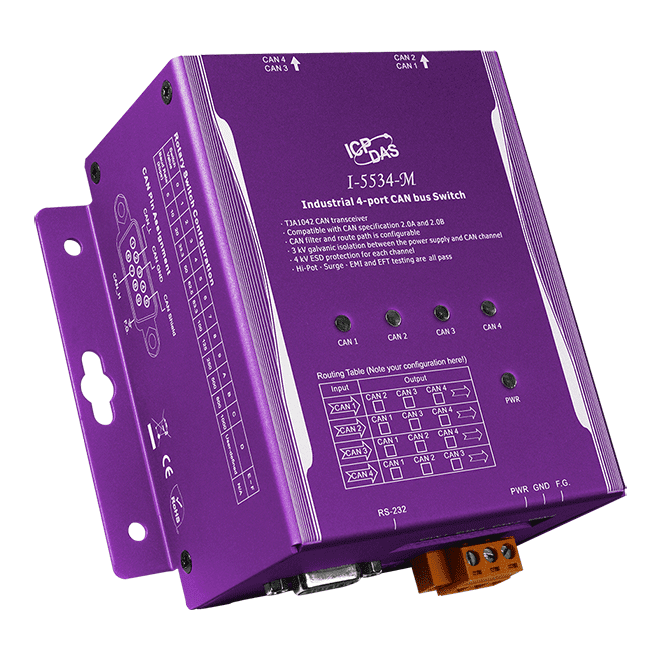

I-5534-M 4-Port CAN Bus Switch, Isolated, Metal Case
Four-channel CAN bus switch in a metal case for splitting networks into subnets and bridging segments with different baud rates. Supports CAN 2.0A/2.0B and ISO 11898-2.

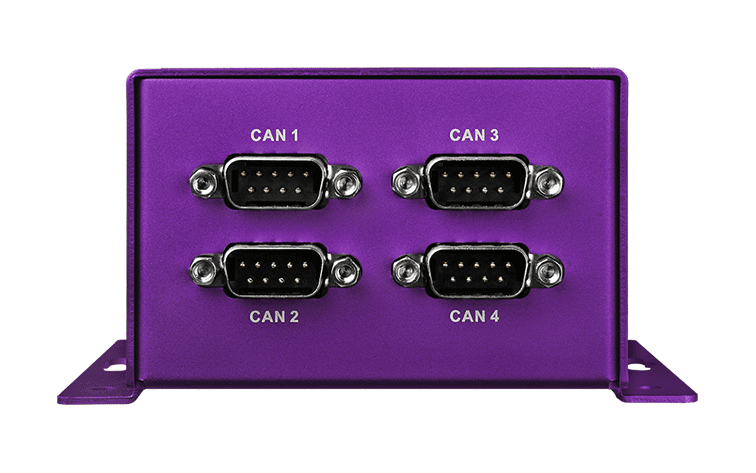

- Four independent CAN channels for star or tree network topologies
- Links CAN segments running different baud rates, from 5 kbps to 1 Mbps
- Configurable CAN filter and up to 32 CAN-ID mappings per channel
- 100-frame buffer per channel and up to 2500 fps aggregate data flow

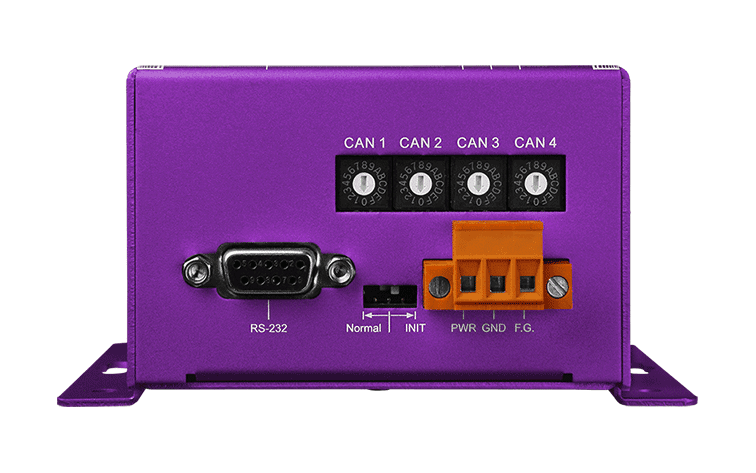

- Rotary-switch baud rate selection and DIP-switch selectable 120Ω terminal resistor
- Isolation of 3000 VDC (DC-to-DC) and 2500 Vrms (photo-coupler)
3 490,54 kr per stk.
| 1–9 stk. | 3 490,54 kr | |
|---|---|---|
| 10–30 stk. | 3 386,65 kr | −3 % |
| 31+ stk. | 3 313,93 kr | −5 % |
Produktinformasjon "I-5534-M 4-Port CAN Bus Switch, Isolated, Metal Case"
The I-5534-M (ordering code I-5534-M CR) gives engineers four independent CAN channels that can be arranged in star or tree topologies. Use it to divide a large bus into several subnets, which raises the practical node count of a network, or to extend the cable run of an existing CAN system.

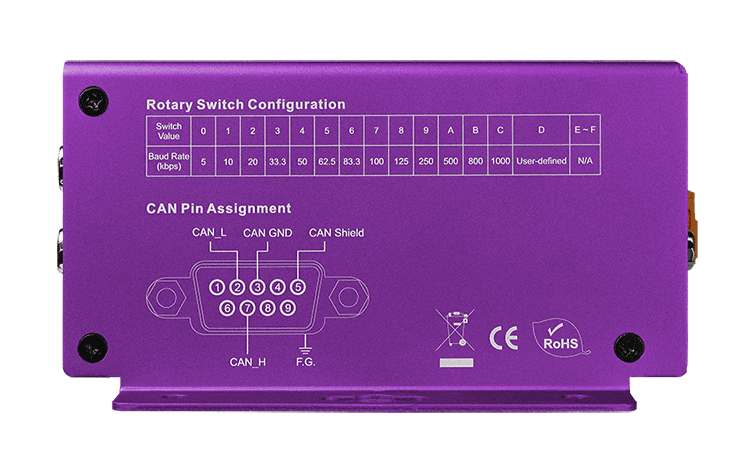

Each channel can run at its own baud rate, selected with a rotary switch from 5 kbps to 1 Mbps, so segments with different speeds can exchange data through the unit. A configurable CAN filter, up to 32 CAN-ID mappings per channel and a 100-frame buffer per channel help control traffic between segments. A utility tool handles filter, route path, user-defined baud rate and CAN-ID mapping settings.
The aluminium-free metal housing is designed for wall mounting and a 10 to 30 VDC supply. Isolation is rated at 3000 VDC for DC-to-DC and 2500 Vrms for the photo-coupler, and the unit operates from -25 to +75 °C.
Applications
- Industrial machinery
- Building automation
- Vehicle automation
| Product type: | CAN bus switch |
|---|---|
| Interface: | CAN |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 4 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall-mount |
| Housing: | Metal |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 x Power 4 x CAN status |
| COM Ports | |
| Ports | 1 x RS-232 (9-pin screwed terminal block (TxD, RxD, GND )) |
| Fiber | |
| Propagation Delay | 240 us ~ 1360 us |
| CAN | |
| Controller | High Performance Microcontroller |
| Ports | 4 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 5 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by internal jump |
| Filter | Yes |
| Time Delay | [ 1Mbps (8-byte Data) ] ID-11bit => 240 us ; [ 5Kbps (8-byte Data) ] ID-29bit => 1360 us |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 116.5 x 127 x 61.3 (W x L x H) |
| Installation | Wall-Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
