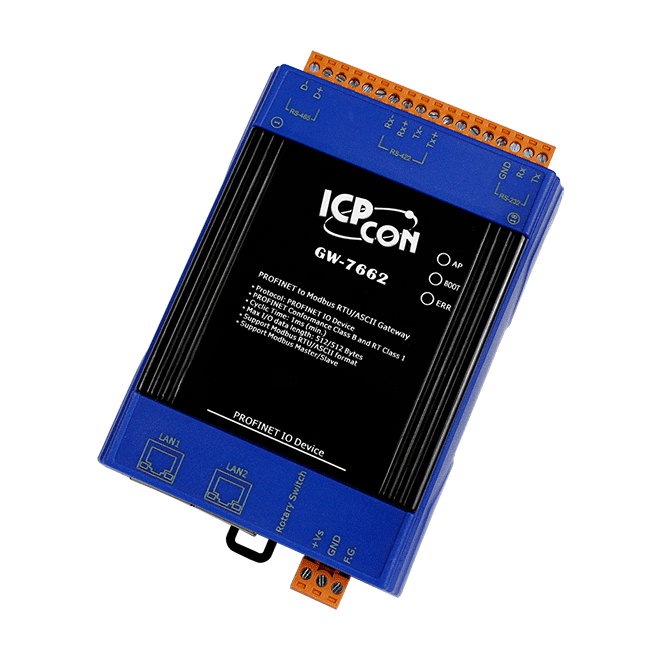

GW-7662 PROFINET to Modbus RTU/ASCII Gateway, IO Device
PROFINET IO device gateway that lets a PROFINET controller access Modbus RTU/ASCII master and slave devices over RS-232, RS-422 or RS-485.
- PROFINET IO Device with Conformance Class B and RT Class 1
- Cyclic time of 1 ms (min) with up to 512/512 bytes of I/O data
- Modbus master and slave modes, supporting RTU and ASCII formats
- RS-232, RS-422 or RS-485 serial interface, selectable (not simultaneous)
- Serial baud rates from 1200 to 460800 with configurable data, parity and stop bits
- Generic GSDML file provided (version 2.25) for PROFINET configuration
4 778,71 kr per stk.
| 1–9 stk. | 4 778,71 kr | |
|---|---|---|
| 10–30 stk. | 4 633,27 kr | −3 % |
| 31+ stk. | 4 539,77 kr | −5 % |
Produktinformasjon "GW-7662 PROFINET to Modbus RTU/ASCII Gateway, IO Device"
GW-7662 CR is a PROFINET IO device that bridges a PROFINET controller and serial Modbus equipment. Modbus PLCs, sensors and ICP DAS M-7000 series modules can be brought onto a PROFINET network without changing the field devices, and the bundled utility software is used to configure the gateway.
The gateway supports both Modbus master and slave modes, with RTU or ASCII framing. Its serial port can be set to RS-232, RS-422 or RS-485, with baud rates from 1200 to 460800, 7 or 8 data bits, none, even or odd parity, and 1 or 2 stop bits. Cyclic exchange runs at a minimum of 1 ms, with up to 512 bytes of input and 512 bytes of output data.
A generic GSDML file (version 2.25) is provided for integrating the device into a PROFINET engineering project. The RoHS-compliant unit is rated for an operating range of -25 ~ +75 °C and mounts on DIN-rail, which suits industrial cabinets in factory and process automation.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | Gateway |
|---|---|
| Interface: | RS-232/RS-422/RS-485 |
| Protocol: | PROFINET IO Device |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | AP LED, BOOT LED, ERR LED |
| Ethernet | |
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| COM Ports | |
| Ports | RS-232/RS-422/RS-485 (can't be used simultaneously) 3-pin screwed terminal block (RxD, TxD, GND) 4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-) 2-pin screwed terminal block (DATA+, DATA-) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| PROFINET | |
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
| Consumption | 3.4 W |
| Mechanical | |
| Dimensions (mm) | 42 x 76 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
