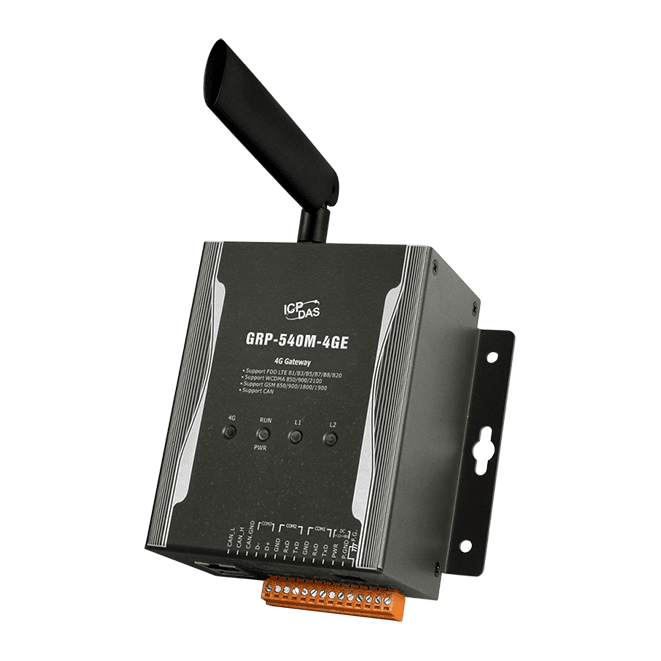

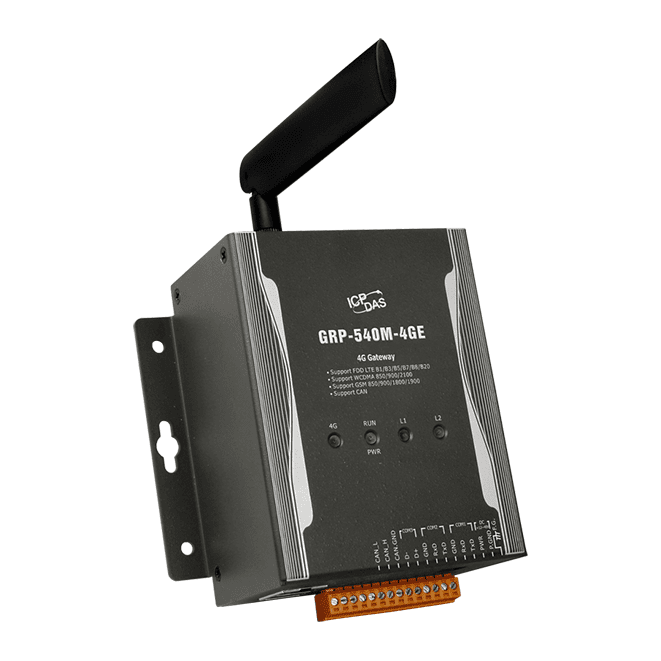

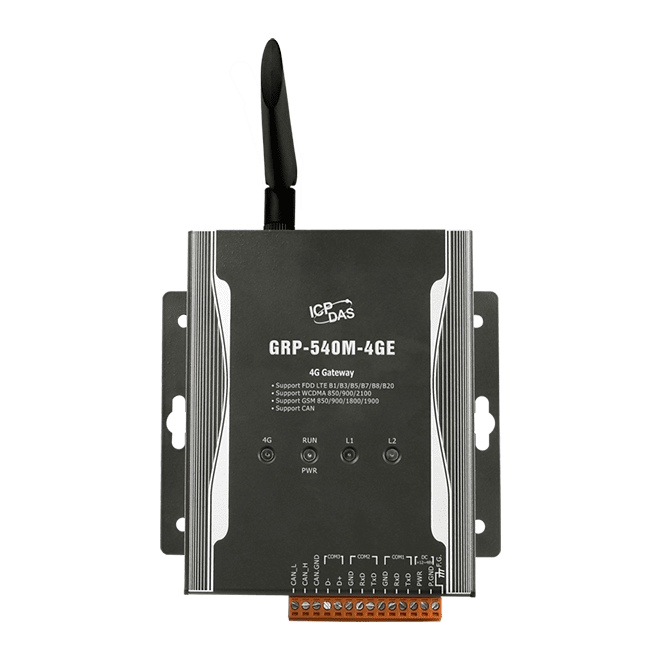

GRP-540M-4GE 4G Gateway with Ethernet, Serial and CAN, GPS Tracking
Industrial 4G LTE gateway bridging Ethernet, RS-232/RS-485 serial and CAN to cellular networks, with 32-channel GPS and a built-in 4G router function for remote M2M links.
- 4G FDD LTE with 3G WCDMA and 2G GSM support
- Ethernet, serial and CAN connectivity in one gateway
- Built-in 4G router function with port mapping
- Serial port to 4G gateway function for field devices
- GPS receiver with 32-channel All-In-View tracking (NMEA 0183)
- Micro SD card slot for storage expansion up to 32 GB SDHC
7 791,38 kr per stk.
| 1–9 stk. | 7 791,38 kr | |
|---|---|---|
| 10–30 stk. | 7 552,44 kr | −3 % |
| 31+ stk. | 7 396,61 kr | −5 % |
Produktinformasjon "GRP-540M-4GE 4G Gateway with Ethernet, Serial and CAN, GPS Tracking"
The GRP-540M-4GE CR connects Ethernet, serial and CAN devices to cellular networks, giving engineers a way to reach remote equipment over 4G LTE with 3G WCDMA and 2G GSM fallback. It works as a 4G router with port mapping, and as a serial-to-4G gateway for field devices that have no network connection of their own.
The unit adds GPS with 32-channel All-In-View tracking, so it can also be deployed as a GPS tracking node. Remote I/O and Modbus data, or camera video, can be carried over the cellular link, making the device suited to distributed M2M monitoring.
Built with a metal casing and rated for harsh industrial environments, the gateway mounts on DIN-rail or by screw. Micro SD expansion and a watchdog timer support unattended operation.
Applications
- 4G router for remote sites
- Remote video monitoring
- Serial port to 4G gateway
- GPS tracking systems
- M2M transfer of remote I/O and Modbus data over 4G/3G/2G
| Product type: | Gateway |
|---|---|
| Interface: | CAN, Ethernet, RS-232, RS-485 |
| Protocol: | NMEA 0183 |
| Ports: | 4 (1 Ethernet, 3 serial) |
| Isolation: | 3000 VDC (RS-485) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | ARM CPU |
| EEPROM | 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Storage Expansion | SD Card (Max. 32GB SDHC) |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x RUN/PWR 1 x 4G 1 x L1 1 x L2 |
| 2G System | |
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| 4G System | |
| Data Transmission Rate | LTE Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| GPS/GNSS | |
| Protocol | NMEA 0183 |
| Support Channels | 32 |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Debug) 1 x RS-232 1 x RS-485 (3000VDC Isolated) |
| CAN | |
| Signal Line | CAN Bus (CAN_H, CAN_L) |
| Power | |
| Consumption | 4.8W ( 200 mA @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail / Screw |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
