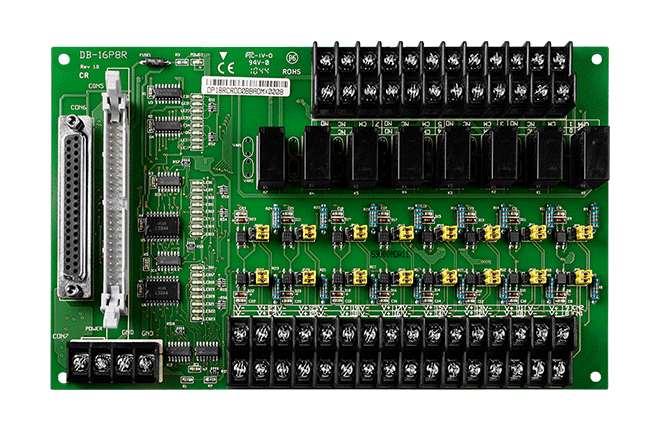

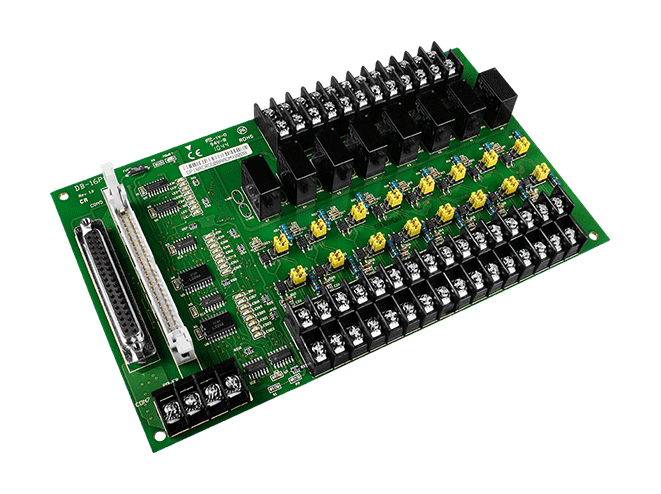

DB-16P8R DAQ Daughter Board, 16-ch Isolated Digital Input & 8-ch Relay Output
16-channel optically isolated digital input and 8-channel Form C relay output daughter board for OPTO-22 compatible DIO cards, supplied with a 1.5 M 50-pin flat cable.
- 16 optically isolated digital input channels with dry or wet contact selection by jumper
- 8 x Form C relay output channels rated 250 VAC/5A and 30 VDC/5A
- Direct connection to DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U and PIO-D48U OPTO-22 compatible boards
- Input response speed of 20us and input impedance of 1.2K Ohm
- Relay operate time 10 ms, release time 5 ms, electrical endurance 1 x 10^5, mechanical endurance 1 x 10^7
- Includes CA-5015 flat cable, 50-pin, 1.5 M
1 537,50 kr per stk.
| 1–9 stk. | 1 537,50 kr | |
|---|---|---|
| 10–30 stk. | 1 495,94 kr | −3 % |
| 31+ stk. | 1 464,78 kr | −5 % |
Produktinformasjon "DB-16P8R DAQ Daughter Board, 16-ch Isolated Digital Input & 8-ch Relay Output"
The DB-16P8R CR is a DAQ daughter board that adds 16 optically isolated digital inputs and 8 relay outputs to compatible OPTO-22 style digital I/O cards. It is intended for engineers who need isolated sensing of dry or wet contacts alongside switched relay control in test and automation set-ups.
The board connects directly to the DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U and PIO-D48U digital I/O boards. Each input can be configured for dry or wet contact operation using a jumper. The relay outputs are 8 x Form C with a contact rating of 250 VAC/5A and 30 VDC/5A.
This CR ordering code includes the CA-5015 flat cable (50-pin, 1.5 M), so the board can be connected to the host card straight away. The unit is RoHS and WEEE certified and is rated for an operating temperature of 0 ~ 60°C.
Applications
- Isolated digital input sensing
- Testing and automation
| Product type: | DAQ daughter board |
|---|---|
| Digital inputs: | 16 |
| Relay outputs: | 8 |
| Isolation: | Optical |
| Operating temperature: | 0 ~ 60 °C |
Spesifikasjoner
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry+Wet Contact |
| ON Voltage Level | Dry: Close to GND(TTL) Wet: 2.8 V ~ 24 V(Max) |
| OFF Voltage Level | Dry: Open (TTL) Wet: 1 V (Max) |
| Response Speed | 20us |
| Input Impedance | 1.2K Ohm |
| Relay Output | |
| Channels | 8 X FORM C |
| Type | 24 V Power Relay |
| Contact Rating | 250 VAC/5A , 30 VDC/5A |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 1 x 10^5 |
| Mechanical Endurance | 1 x 10^7 |
| Mechanical | |
| Dimensions (mm) | 213 mm x 132 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
