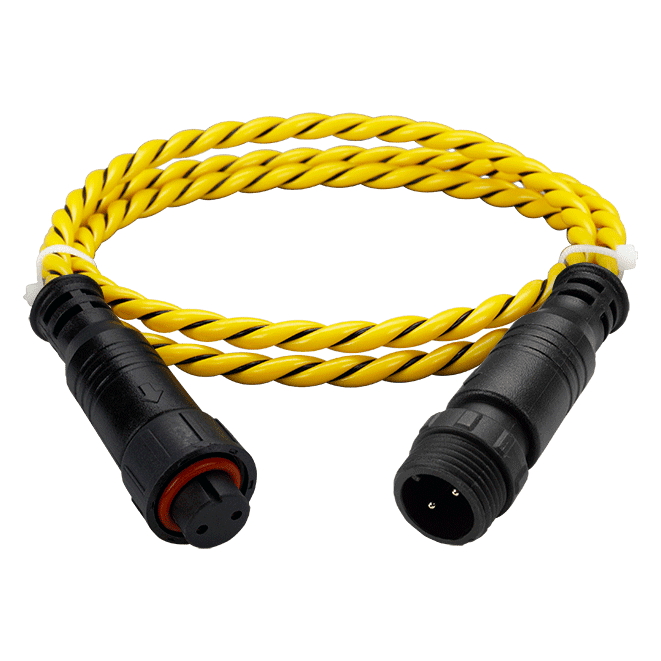

CA-LLD-DC100X-L010 Liquid Leak Detection Cable with Cable-Break Detection, 1 m
A 1 m liquid leak detection cable for iSN-101/104 systems, adding cable-break detection and snap-in connectors so multiple cables can be chained to a maximum of 500 m.
- Cable-break detection, reported immediately to the iSN-101/104 alarm buzzer when used with the CA-LLD-DC100X-TR terminal resistor
- Snap-in connectors at both ends allow multiple detection cables to be connected in series
- Signal leader cable plus all detection cables can reach a maximum of 500 m
- Sensing wires: 2 x 30 AWG with conductive fluoropolymer jacket
- Fluoropolymer carrier with 6 mm cable diameter
- Maximum continuous operating temperature of 70 °C
477,87 kr per stk.
| 1–9 stk. | 477,87 kr | |
|---|---|---|
| 10–30 stk. | 467,48 kr | −2 % |
| 31+ stk. | 457,09 kr | −4 % |
Produktinformasjon "CA-LLD-DC100X-L010 Liquid Leak Detection Cable with Cable-Break Detection, 1 m"
The CA-LLD-DC100X-L010 is a 1 m liquid leak detection cable for covering wide, open areas where the likely leak path cannot be predicted in advance. It can be run alongside liquid supply and return lines, and it suits larger surfaces with several potential leak points.
Compared with the standard CA-LLD-DC100-Lxxx cable for iSN-101/104, this variant adds two functions when used with the CA-LLD-DC100X-TR terminal resistor. Cable-break detection reports a broken signal leader cable or detection cable immediately and passes the alarm to the iSN-101/104 buzzer. Snap-in connectors at both ends allow several detection cables to be connected in series.
The signal leader cable plus all detection cables can reach a maximum of 500 m. The 6 mm fluoropolymer-jacketed cable carries two 30 AWG sensing wires and is rated for a maximum continuous operating temperature of 70 °C.
Applications
- Liquid leak detection over wide or open areas
- Monitoring liquid supply and return lines
- Larger surface areas with multiple potential leak points
| Product type: | Liquid leakage detection cable |
|---|---|
| Operating temperature: | 70 °C max continuous |
